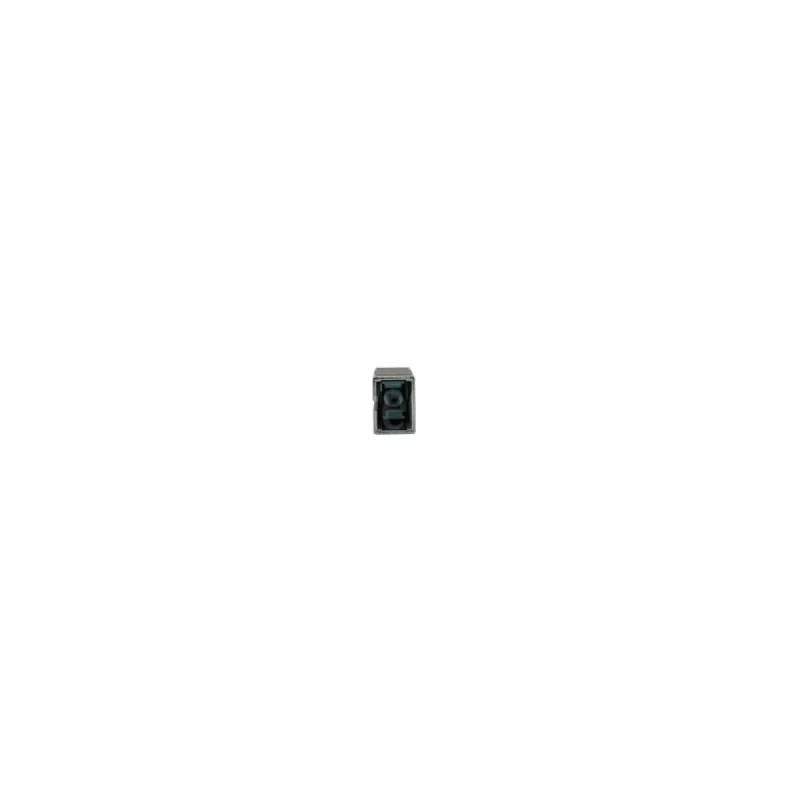

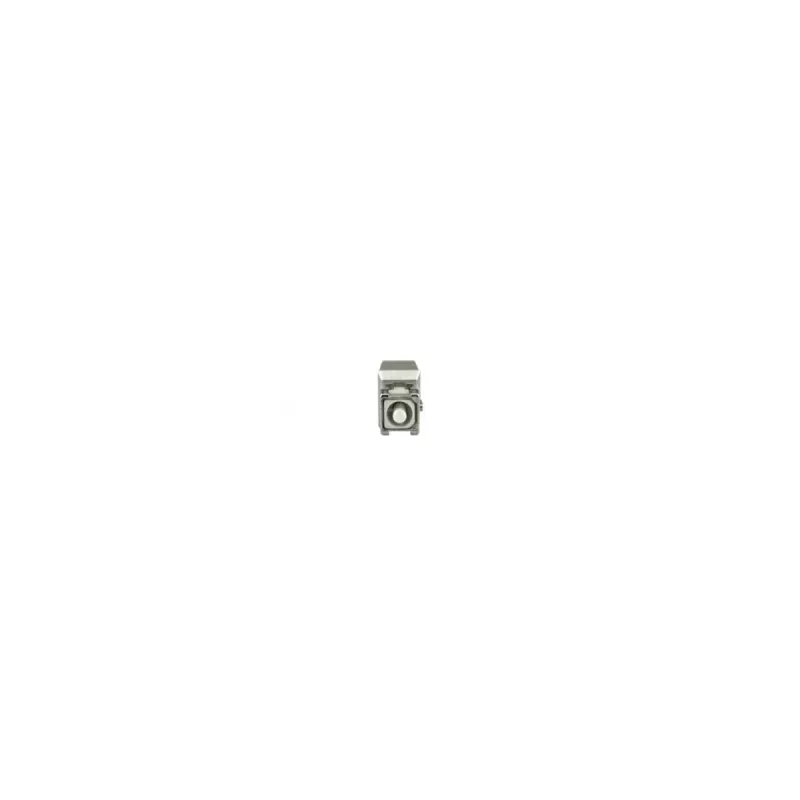

BlueOptics Attenuatore in fibra ottica monomodale SC/APC simplex 10dB

The BlueOptics SFA22BM10 is a high-quality fiber optic attenuator designed for singlemode networks. It provides a precise 10 dB attenuation to optimize signal levels in FTTx, data centers, telecommunication networks, and LAN applications. The SC/APC connector ensures low return loss and reliable performance.

Advantages

This attenuator offers excellent stability and durability with over 1000 mating cycles. Its zirconia ceramic ferrule ensures low insertion loss and high return loss, making it ideal for critical network environments. The compact design allows easy integration into patch panels and equipment.

Suitable for

• FTTx networks
• Data centers
• Telecommunication networks
• LAN systems

Key specifications

• Attenuation: 10 dB ±0.5 dB
• Fiber mode: Singlemode (SM)
• Connector: SC/APC, Simplex, Male-Female
• Wavelength range: 1260 nm - 1650 nm
• Return loss: ≥ 60 dB
• Insertion loss: < 0.2 dB
• Polarization dependent loss: ≤ 0.2 dB
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Durability: > 1000 mating cycles
• Housing material: Plastic / Metal Alloy
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with high-quality SC/APC patch cables and ensure proper cleaning of connectors before installation.
