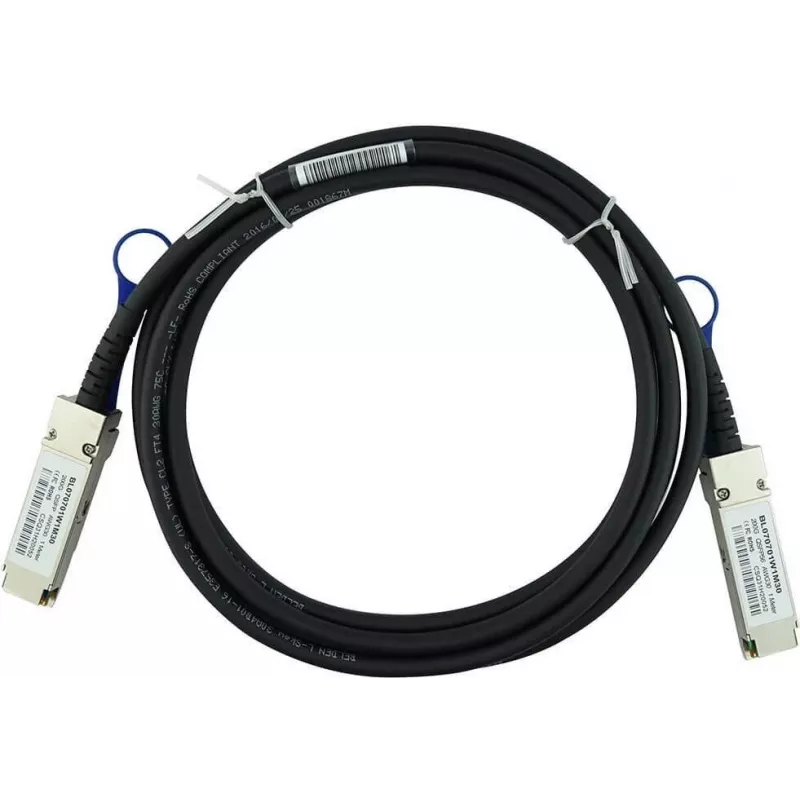

BlueOptics BL070701W0.5M30-BL Cavo Direct Attach InfiniBand 0,5m QSFP56 200Gb/s arancione

The BlueOptics BL070701W0.5M30-BL is a high-performance InfiniBand Direct Attach Cable (DAC) designed for high-speed data transmission in demanding environments. With a length of 0.5 meters and QSFP56 connectors on both ends, this passive copper cable supports data transfer rates of up to 200 Gb/s (HDR InfiniBand), making it ideal for high-performance computing (HPC), data centers, and enterprise networking applications.

Advantages

This cable offers exceptional reliability and performance for short-range connections. Its passive design ensures low power consumption and cost-effectiveness, while the 30 AWG construction provides flexibility and durability. The orange color aids in easy identification and cable management.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center interconnects
• Enterprise networking equipment
• InfiniBand HDR (High Data Rate) systems

Key specifications

• Cable Type: InfiniBand Direct Attach Cable (DAC)
• Connector Type: QSFP56 Male to QSFP56 Male
• Cable Length: 0.5 m
• Data Transfer Rate: 200 Gb/s (HDR InfiniBand)
• AWG: 30 AWG
• Cable Color: Orange
• Material: Copper
• Passive/Active: Passive
• Compatibility: InfiniBand HDR
• Hot-Swappable: Yes
• RoHS Compliant: Yes
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, ensure that both connected devices support QSFP56 and InfiniBand HDR standards. This cable is designed for short-distance, high-speed connections within racks or between adjacent equipment.
