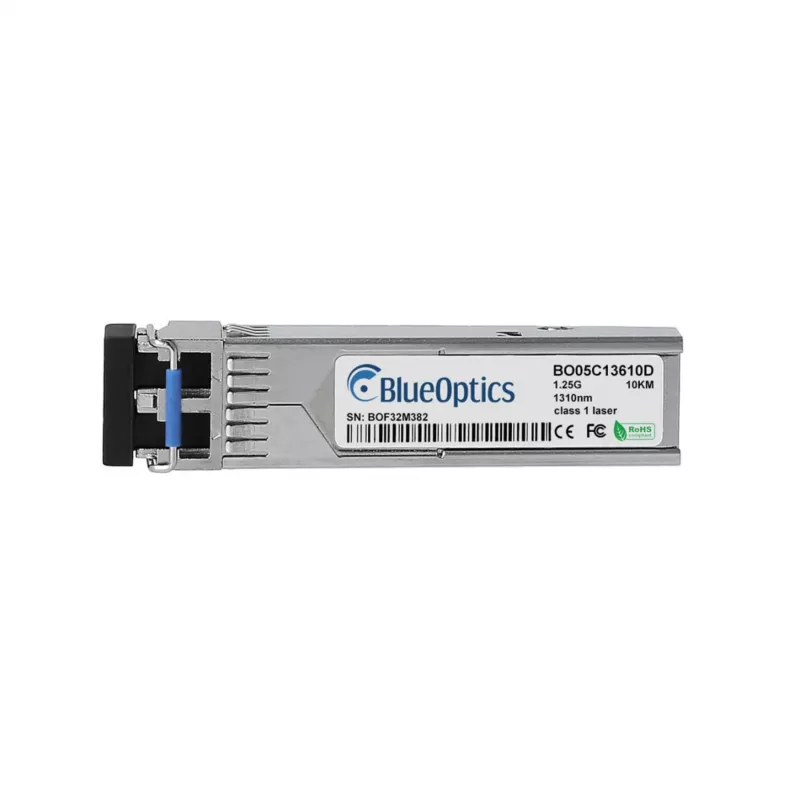

BlueOptics BO05C13610D ricetrasmettitore SFP compatibile, LC Duplex, 1000BASE-LX, monomodale, 10 km

The BlueOptics BO05C13610D is a high-performance SFP transceiver designed for Gigabit Ethernet applications. It is fully compatible with Finisar FTLF1318P2BCL and offers reliable connectivity over single-mode fiber at distances up to 10 km. This hot-swappable module supports Digital Diagnostics Monitoring (DDM) and operates at a wavelength of 1310 nm, ensuring seamless integration into existing network infrastructures.

Advantages

Cost-effective alternative to OEM modules without compromising performance. MSA compliant for broad compatibility. Low power consumption (<1W) and commercial temperature range (0°C to 70°C) make it suitable for enterprise and data center environments.

Suitable for

• Gigabit Ethernet networks (1000BASE-LX)
• Single-mode fiber optic connections
• Data centers, enterprise LANs, and telecom applications

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km
• Connector: LC Duplex
• Fiber Type: Single-Mode (OS2)
• Standard: IEEE 802.3z 1000BASE-LX
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1W
• Voltage: 3.3V
• Laser Type: FP Laser
• Receiver Type: PIN Photo Detector
• Optical Power (Tx): -9.5 to -3 dBm
• Receiver Sensitivity (Rx): <-20 dBm
• Certification: CE, FCC, RoHS

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure proper handling of LC connectors. This transceiver is ideal for upgrading or expanding Gigabit Ethernet networks.
