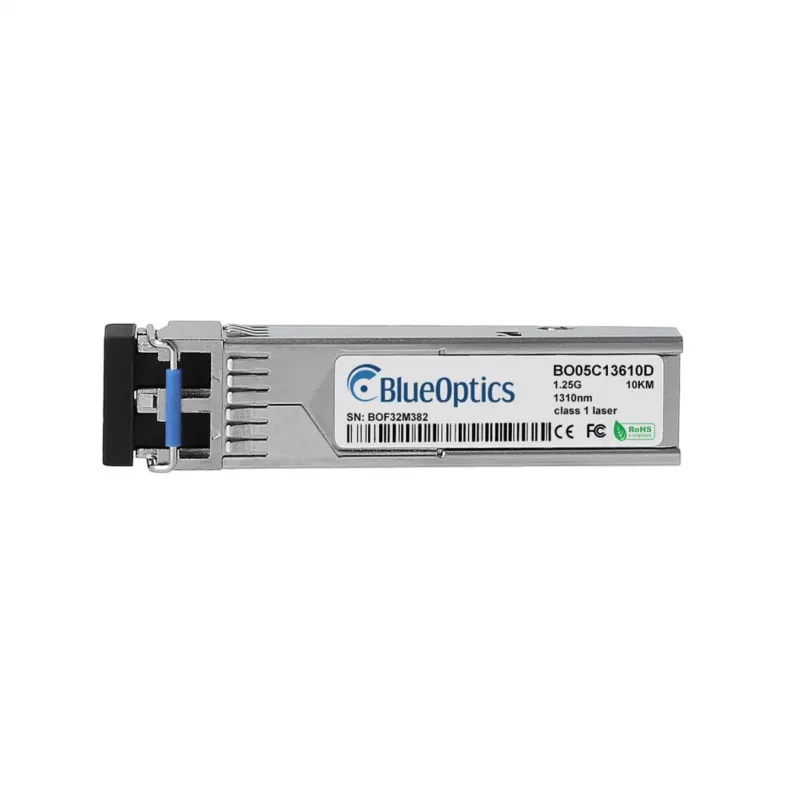

BlueOptics BO05C13610D ricetrasmettitore SFP compatibile Ruckus E1MG-LX, 1000BASE-LX, LC Duplex, monomodale, 10 km

The BlueOptics BO05C13610D is a high-performance SFP transceiver designed to be fully compatible with Ruckus E1MG-LX equipment. It delivers reliable Gigabit Ethernet connectivity over single-mode fiber, supporting distances up to 10 km. This hot-swappable module features LC duplex connectors and complies with IEEE 802.3z 1000BASE-LX standards, making it an ideal solution for enterprise networks, data centers, and telecommunications applications.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption (<1.0 W) and extended MTBF (>500,000 hours) ensure long-term stability and reduced total cost of ownership.

Suitable for

• Ruckus E1MG-LX compatible switches and routers
• Gigabit Ethernet uplinks and backbone connections
• Single-mode fiber optic networks requiring distances up to 10 km
• Enterprise and data center environments

Key specifications

• Data Rate: 1.25 Gbps (Gigabit Ethernet)
• Wavelength: 1310 nm
• Max Distance: 10 km over single-mode fiber
• Connector: LC Duplex
• Form Factor: SFP
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0 W
• Standards: IEEE 802.3z 1000BASE-LX

Recommendations

For optimal performance, use with single-mode fiber (OS1/OS2) and ensure proper cleaning of fiber connectors. This module is hot-swappable and supports plug-and-play installation. Compatible with Ruckus E1MG-LX and other MSA-compliant SFP slots.
