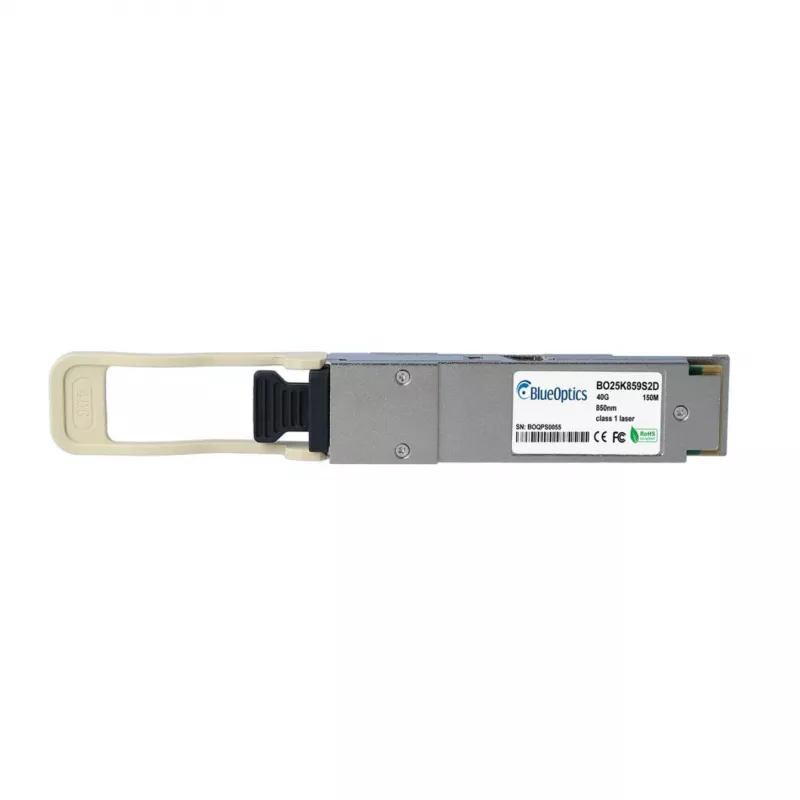

BlueOptics BO25K859S2D Transceiver QSFP compatibile Ruckus E40G-QSFP-SR4, MPO/MTP, 40GBASE-SR4, multimodale

The BlueOptics BO25K859S2D is a high-performance QSFP transceiver designed for 40 Gigabit Ethernet networks. It is fully compatible with Ruckus E40G-QSFP-SR4 switches and routers, offering reliable connectivity for data center and enterprise applications. This transceiver supports the 40GBASE-SR4 standard over multimode fiber with an MPO/MTP connector, delivering up to 150 meters reach on OM4 fiber.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Hot-pluggable design enables easy installation and maintenance. Digital Diagnostics Monitoring (DDM) provides real-time monitoring of operating parameters. Low power consumption of less than 1.5W helps reduce energy costs.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• Storage area networks

Key specifications

• Form Factor: QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-SR4
• Connector Type: MPO/MTP (12-fiber)
• Fiber Type: Multimode (MMF)
• Wavelength: 850 nm
• Max Reach (OM3): 100 m
• Max Reach (OM4): 150 m
• Compatibility: Ruckus E40G-QSFP-SR4
• DDM: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 1.5 W
• Operating Temperature: 0°C to 70°C
• Transmitter: VCSEL
• Receiver: PIN Photo Detector
• MSA Compliant: Yes
• Power Supply: 3.3 V
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper cleaning of MPO connectors. This module is ideal for upgrading your network to 40G without replacing existing fiber infrastructure.
