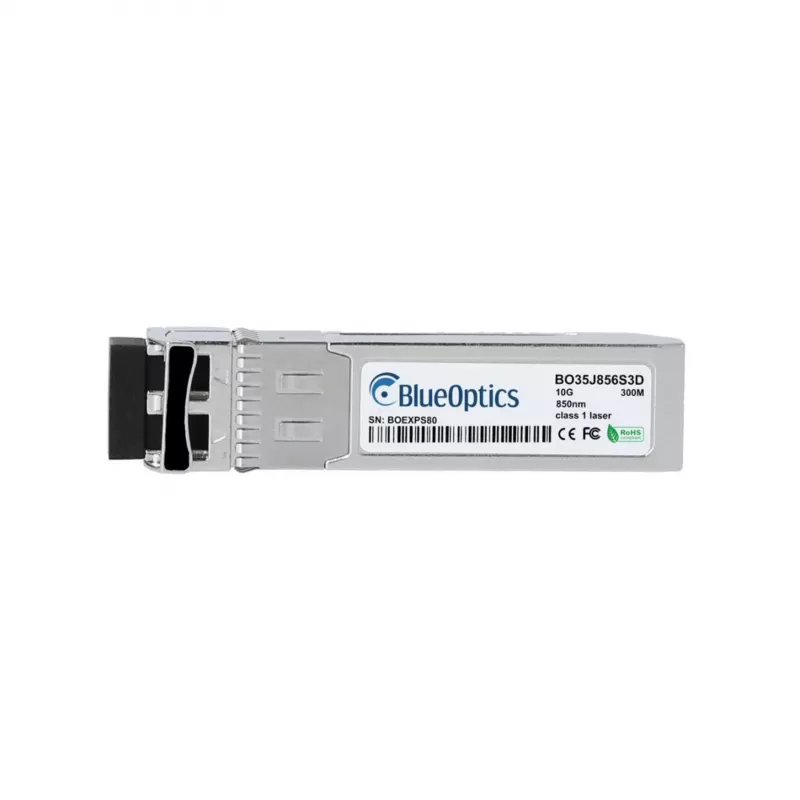

BlueOptics BO35J856S3D ricetrasmettitore SFP+ compatibile 10GBASE-SR 850nm 300m LC

The BlueOptics BO35J856S3D is a high-performance SFP+ transceiver designed for 10 Gigabit Ethernet applications. It is fully compatible with Finisar FTLX8571D3BCV-IT and Intel equipment, offering reliable connectivity for data centers and enterprise networks. This hot-pluggable module supports 10GBASE-SR over multi-mode fiber with a maximum distance of 300 meters on OM3 fiber.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Features Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption under 1W ensures energy efficiency. RoHS compliant and built with VCSEL laser technology for long-term reliability.

Suitable for

• 10 Gigabit Ethernet networks in data centers
• Enterprise LAN and campus networks
• High-speed storage area networks (SAN)
• Telecommunications and service provider infrastructure

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Protocol: 10GBASE-SR
• Wavelength: 850 nm
• Max Distance: 300 m (OM3), 82 m (OM2)
• Fiber Type: Multi-mode (MMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Laser Type: VCSEL
• Standards: IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472
• MTBF: > 1,000,000 hours
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber and ensure proper cleaning of LC connectors. Compatible with all Finisar FTLX8571D3BCV-IT and Intel SFP+ slots.
