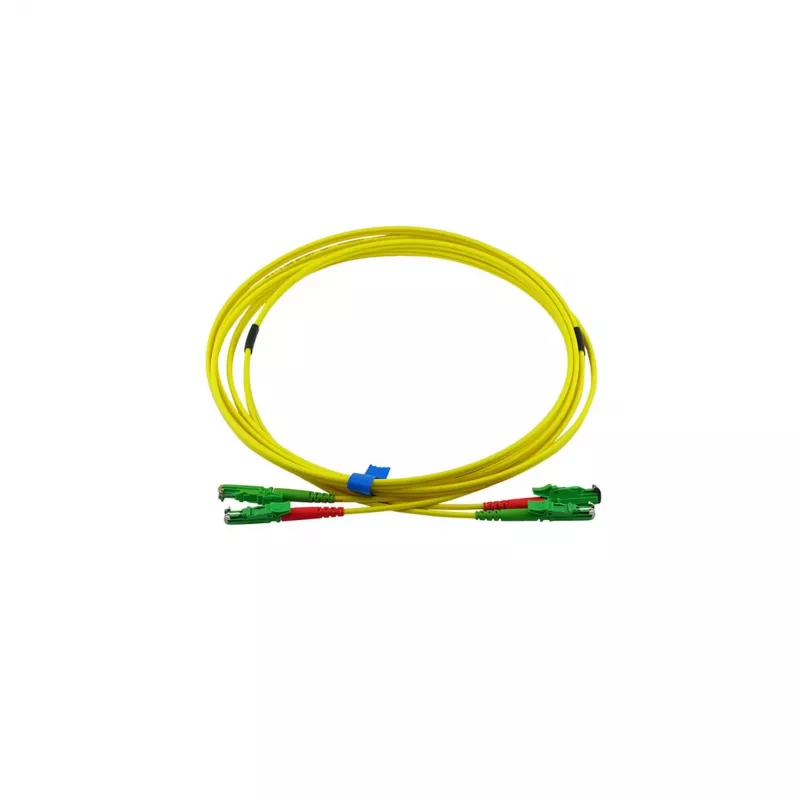

BlueOptics Cavo patch in fibra ottica duplex E2000-APC su E2000-APC monomodale 7,5m

The BlueOptics SFP3838BU7.5MM is a high-quality duplex fiber optic patch cable designed for reliable singlemode connections. Featuring E2000-APC connectors on both ends, this 7.5-meter cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

Exceptional signal integrity with typical insertion loss ≤0.25 dB and return loss ≥60 dB. LSZH jacket provides safety in confined spaces. Durable construction meets industry standards.

Suitable for

• Data centers
• Telecommunications networks
• FTTx applications
• High-speed data transmission

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode (OS2)
• Connector Type A: E2000-APC
• Connector Type B: E2000-APC
• Cable Structure: Duplex
• Cable Length: 7.5 meters
• Fiber Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss (typical): ≤ 0.25 dB
• Return Loss (typical): ≥ 60 dB
• Polish Type: APC (Angled Physical Contact)
• Wavelengths Supported: 1310nm, 1550nm
• Cable Color: Yellow
• Minimum Bend Radius: 10D
• Operating Temperature: -20°C to +70°C
• Standards Compliance: IEC 61754-15, TIA/EIA-568-C.3, RoHS, CE
• Attenuation: 0.35 dB/km @ 1310nm, 0.22 dB/km @ 1550nm

Recommendations

For optimal performance, ensure connectors are clean before use. Compatible with all standard singlemode equipment.
