BlueOptics Cavo patch in fibra ottica duplex SC-SC multimodale OM3 30 metri

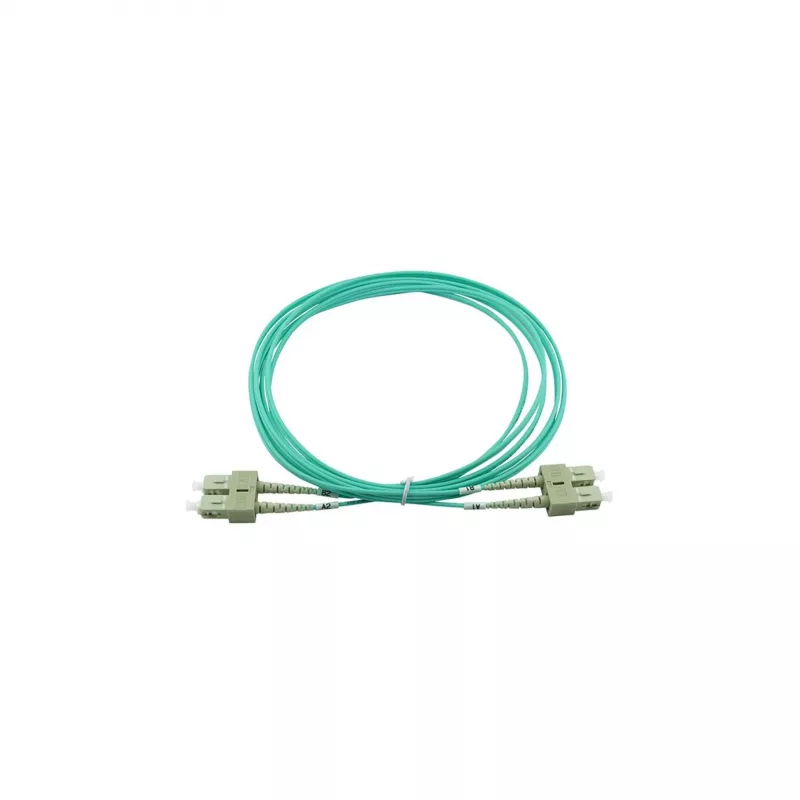

The BlueOptics SFP3232EU30MK is a high-quality duplex fiber optic patch cable designed for reliable data transmission in multimode networks. With SC to SC connectors and OM3 grade fiber, this 30-meter cable supports 10 Gigabit Ethernet over distances up to 300 meters, making it ideal for data centers, enterprise networks, and high-speed infrastructure.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes in case of fire. Its aqua color jacket allows for easy identification of OM3 fiber.

Suitable for

• Data center interconnects
• Server room cabling
• High-speed network backbones
• 10GbE network installations

Key specifications

• Connector Type: SC to SC
• Fiber Type: Multimode OM3
• Cable Length: 30 meters
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH
• Jacket Color: Aqua
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Supported Wavelengths: 850nm, 1300nm
• Bandwidth: 1500 MHz-km (850nm), 500 MHz-km (1300nm)
• Data Rate: 10 Gigabit Ethernet
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this cable with compatible SFP+ transceivers and ensure proper handling to avoid damage to the fiber ends. Ideal for structured cabling systems requiring high bandwidth and reliability.
