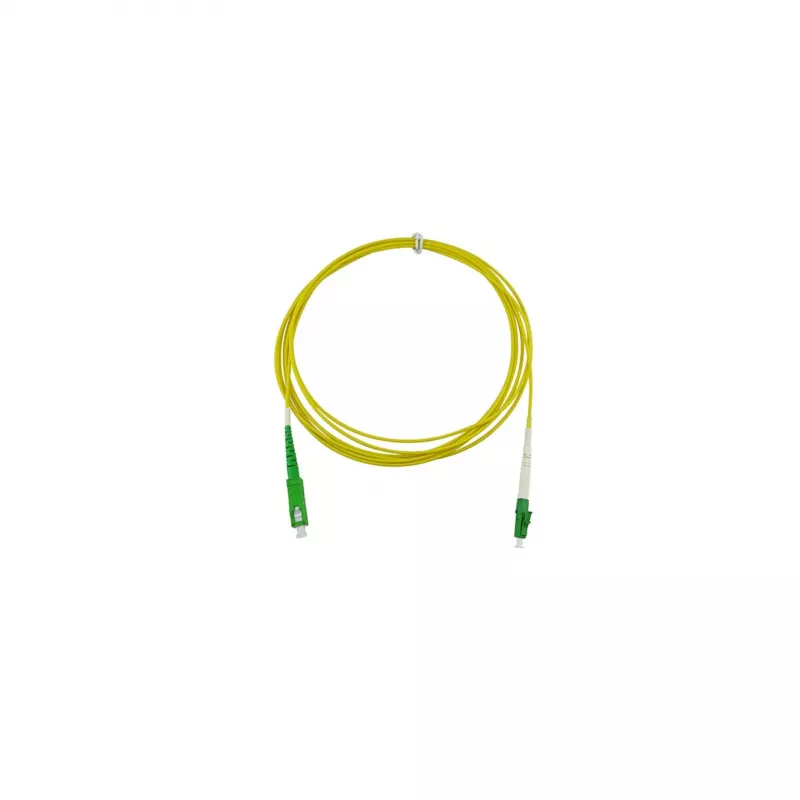

BlueOptics Cavo patch in fibra ottica simplex LC/APC su SC/APC monomodale OS2 30m giallo

The BlueOptics SFP2122BU30MM is a high-quality simplex fiber optic patch cable designed for reliable singlemode connections. With LC/APC to SC/APC connectors and a 30-meter length, this cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This cable offers excellent signal integrity with APC polish, reducing back reflection. The LSZH jacket provides safety in confined spaces, and the yellow color ensures easy identification for singlemode OS2 applications.

Suitable for

• Data centers
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx deployments

Key specifications

• Fiber Mode: Singlemode OS2
• Connector A: LC/APC
• Connector B: SC/APC
• Fiber Count: Simplex (1 fiber)
• Cable Length: 30 meters
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Jacket Material: LSZH
• Cable Diameter: 3.0 mm
• Cable Color: Yellow
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC/APC and SC/APC ports. Store in a clean, dry environment within the specified temperature range.
