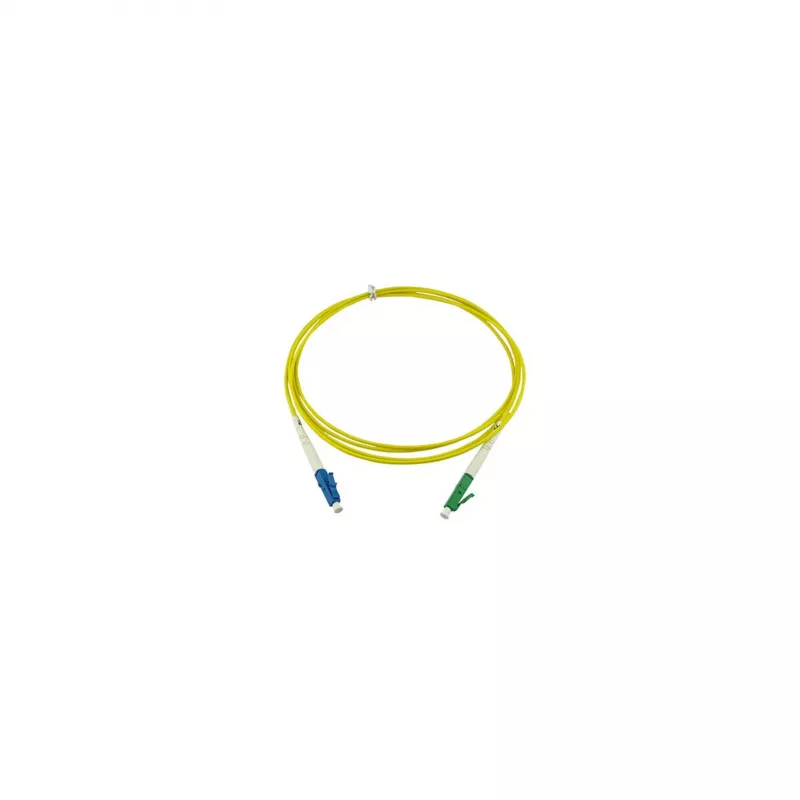

BlueOptics cavo patch in fibra ottica simplex, LC-UPC a LC-APC, monomodale OS2, 20m, giallo

The BlueOptics SFP2121BU20MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring LC-UPC (blue boot) on one end and LC-APC (green boot) on the other, this 20-metre cable ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and telecommunication networks. The yellow LSZH jacket provides durability and safety in indoor installations.

Advantages

This cable offers exceptional performance with typical insertion loss ≤0.25 dB and return loss ≥50 dB (UPC) / ≥60 dB (APC). The LSZH jacket reduces toxic smoke in case of fire, ensuring compliance with safety standards. The colour-coded connectors (blue for UPC, green for APC) prevent misconnection.

Suitable for

• Fibre-to-the-Home (FTTH) installations
• Data centre patching
• Telecommunication networks
• CATV and broadband systems

Key specifications

• Cable Type: Simplex
• Fibre Mode: Single Mode OS2
• Core/Cladding: 9/125 µm
• Connector A: LC-UPC (Blue Boot)
• Connector B: LC-APC (Green Boot)
• Length: 20 Metres
• Jacket Material: LSZH (Yellow)
• Insertion Loss: ≤0.25 dB (typical)
• Return Loss: ≥50 dB (UPC), ≥60 dB (APC)
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-20, TIA/EIA-604-10, RoHS

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice trays. This cable is compatible with standard LC interfaces.
