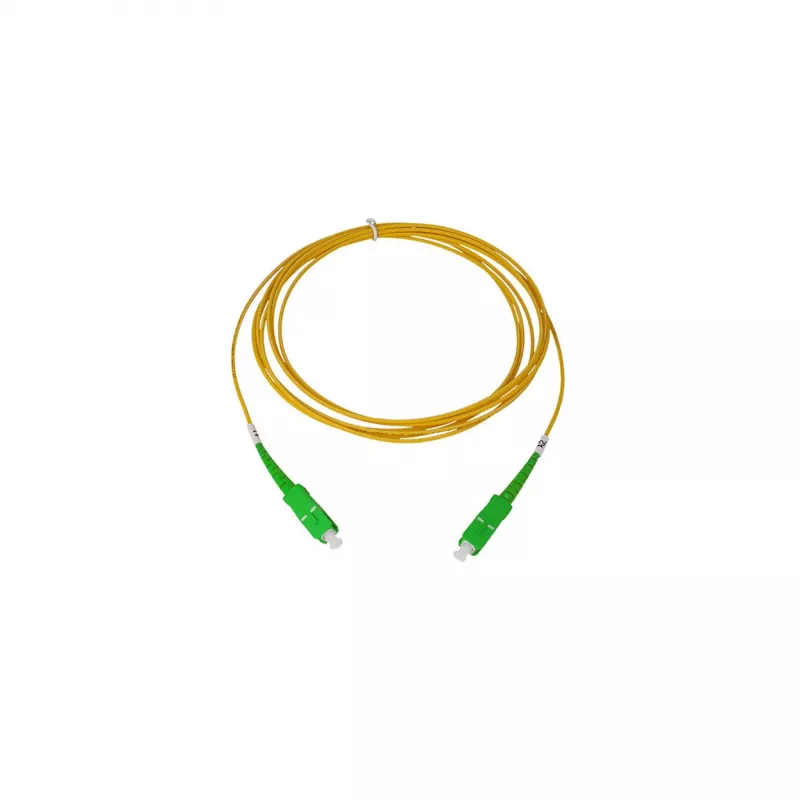

BlueOptics cavo patch in fibra ottica simplex SC-APC/SC-APC monomodale 1 metro

The BlueOptics Simplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 1 metre is a high-performance fibre optic patch cable designed for reliable data transmission in telecommunications, data centers, LAN, and FTTx applications. Featuring SC/APC connectors on both ends, this simplex cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This cable offers exceptional signal integrity with a maximum insertion loss of ≤0.3 dB and a minimum return loss of ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The 3.0 mm diameter and 9/125 µm core/cladding ensure compatibility with standard singlemode systems.

Suitable for

• Data centers requiring high-density cabling
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx (Fiber to the x) installations

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fiber Mode: Singlemode (OS2)
• Fiber Count: Simplex (1 Fiber)
• Connector Type A: SC/APC
• Connector Type B: SC/APC
• Cable Length: 1 meter
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Core/Cladding Diameter: 9/125 µm
• Ferrule Material: Zirconia Ceramic
• Polish Type: APC (Angled Physical Contact)
• Operating Temperature: -20°C to +70°C
• Standards Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754-4
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/APC interfaces and is suitable for both indoor and outdoor use when protected.
