BlueOptics cavo patch in fibra ottica simplex SC-APC/SC-APC monomodale 10 metri

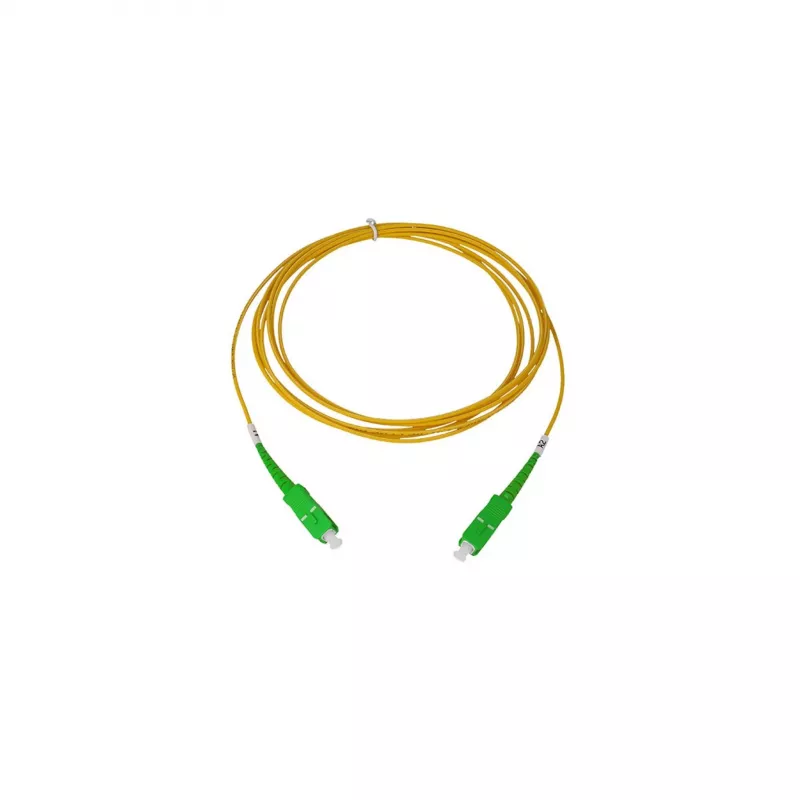

The BlueOptics SFP2222BU10MM is a high-quality simplex fibre optic patch cable designed for single mode applications. Featuring SC-APC connectors on both ends and a 10-metre length, this OS2 (9/125µm) cable ensures reliable and low-loss connections for data centres, telecommunications, FTTx, and LAN networks. The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the yellow colour aids easy identification.

Advantages

This cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB, ensuring minimal signal degradation. The APC polish reduces back reflection, making it ideal for high-bandwidth applications. The robust 3.0 mm diameter cable with a minimum bend radius of 30 mm allows flexible installation without compromising signal integrity.

Suitable for

• Data centres requiring high-speed single mode connections
• Telecommunications networks for long-distance transmission
• FTTx (Fibre to the x) deployments
• Local Area Networks (LAN) with single mode infrastructure

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Type: Single Mode OS2 (9/125µm)
• Connector A: SC-APC
• Connector B: SC-APC
• Cable Construction: Simplex
• Cable Length: 10 metres
• Insertion Loss (Typical): ≤0.3 dB
• Return Loss (Typical): ≥60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Operating Wavelengths: 1310 nm, 1550 nm
• Core/Cladding Diameter: 9/125 µm
• Ferrule Material: Zirconia Ceramic
• Polish Type: APC (Angled Physical Contact)
• Cable Diameter: Approx. 3.0 mm
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC-APC interfaces. Ideal for use in structured cabling systems requiring high reliability and low loss.
