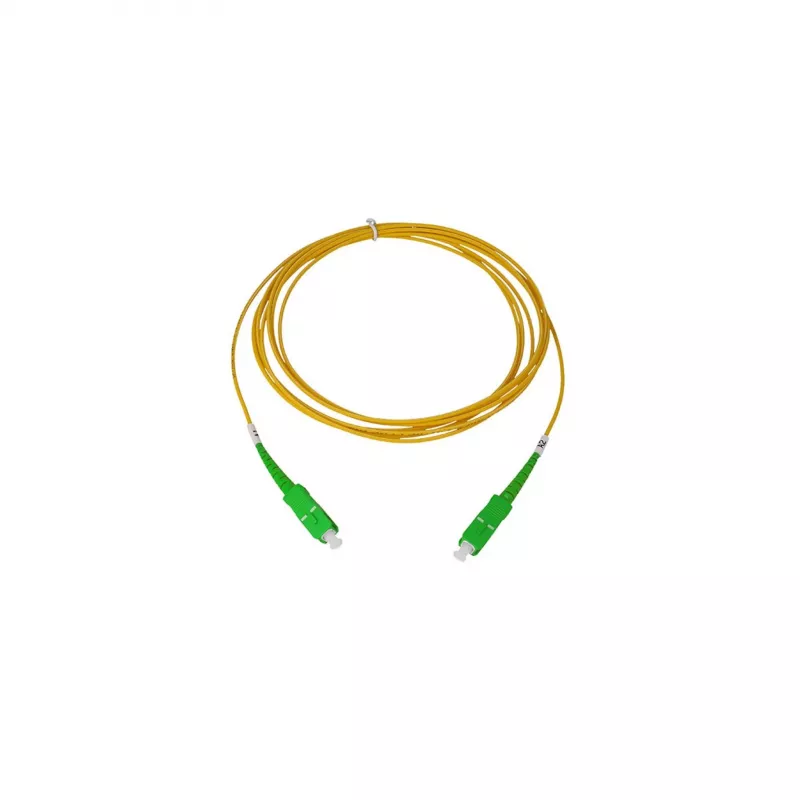

BlueOptics cavo patch in fibra ottica simplex SC-APC/SC-APC monomodale OS2 30m verde

The BlueOptics SFP2222BU30MM is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections in data centers, LAN, FTTx, and telecommunications networks. With SC-APC connectors on both ends and a 30-metre length, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable features an APC (Angled Physical Contact) polish that minimizes back reflection, making it ideal for high-bandwidth applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The OS2 fibre class supports high-speed data transmission over long distances.

Suitable for

• Data center cabling
• Local area networks (LAN)
• FTTx (Fiber to the x) deployments
• Telecommunications infrastructure

Key specifications

• Fibre Type: Single Mode (OS2)
• Core/Cladding: 9/125 µm
• Connectors: SC-APC to SC-APC
• Cable Length: 30 metres
• Jacket Material: LSZH
• Cable Colour: Green
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC-APC interfaces and is suitable for both indoor and protected outdoor use.
