BlueOptics cavo patch in fibra ottica simplex SC-UPC/SC-APC monomodale 0,5m

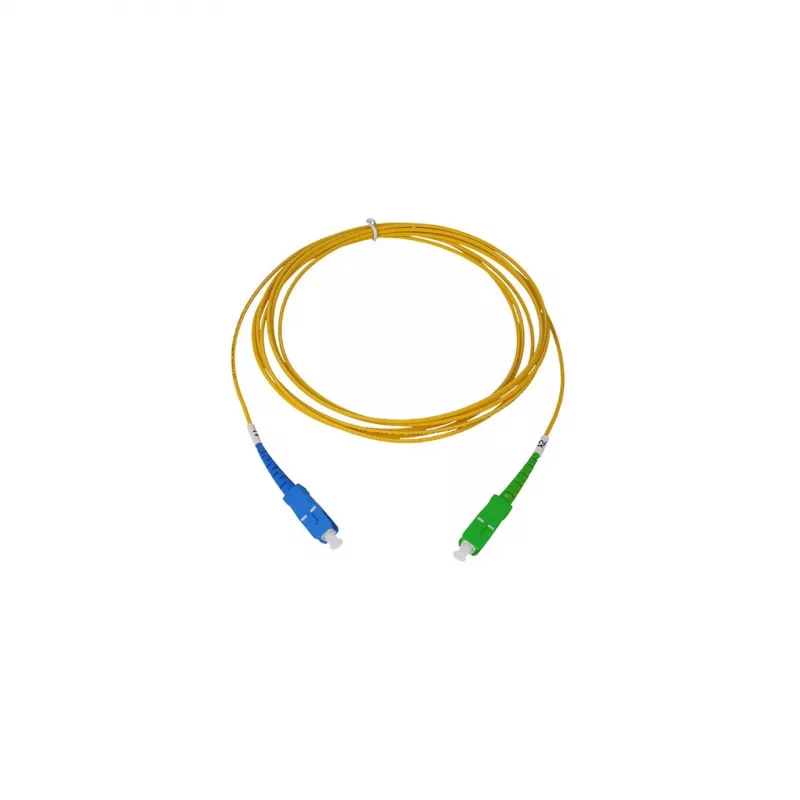

The BlueOptics Simplex Fibre Optic Patch Cable SC-UPC/SC-APC Single Mode 0.5m is a high-performance, pre-terminated fibre optic cable designed for reliable, low-loss connections in data centers, telecommunications, LAN, and FTTx applications. With a length of 0.5 meters, it is ideal for short-distance patching between network devices.

Advantages

This cable offers exceptional signal integrity with low insertion loss (≤0.3 dB) and high return loss (≥50 dB for SC/UPC, ≥60 dB for SC/APC). The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the durable zirconia ceramic ferrules guarantee long-lasting performance over 500 mating cycles.

Suitable for

• Data center interconnects
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx deployments
• Any single-mode fibre application requiring SC/UPC to SC/APC connectivity

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Mode: Single Mode (OS2)
• Cable Configuration: Simplex
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable Length: 0.5 meters
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min, SC/UPC): ≥ 50 dB
• Return Loss (Min, SC/APC): ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3
• Mating Cycles: 500

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is not suitable for multimode applications. Always handle fibre optic cables with care to avoid damage.
