BlueOptics cavo patch in fibra ottica simplex SC-UPC/SC-APC monomodale 20 metri

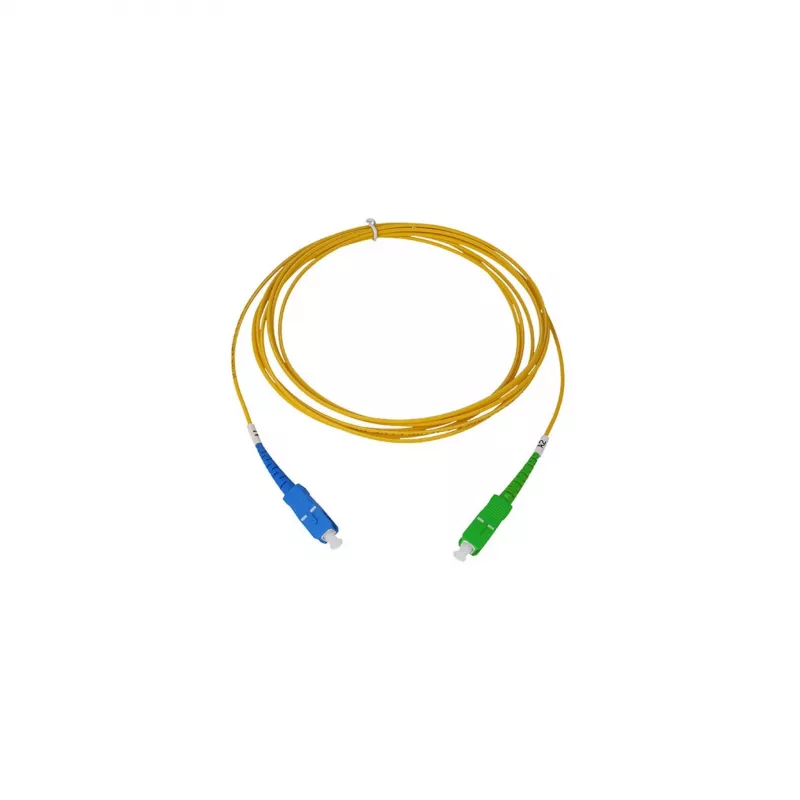

The BlueOptics Simplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 20 Metres is a high-performance fibre optic cable designed for reliable data transmission in singlemode networks. With a length of 20 metres, it provides flexibility for connecting devices over moderate distances. The cable features SC/UPC on one end and SC/APC connectors on the other, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers excellent optical performance with a maximum insertion loss of ≤0.3 dB and high return loss (≥50 dB for SC/UPC, ≥60 dB for SC/APC). The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, reducing toxic fumes in case of fire. The 9/125 µm core/cladding diameter complies with OS2 singlemode standards, making it suitable for high-speed data applications.

Suitable for

• Data centre connections
• Telecommunications networks
• FTTx (Fibre to the x) deployments
• Enterprise LAN backbone
• Any singlemode fibre optic system requiring SC/UPC to SC/APC connectivity

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fiber Mode: Singlemode (OS2)
• Cable Configuration: Simplex
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable Length: 20 Metres
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (SC/UPC): ≥ 50 dB
• Return Loss (SC/APC): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice closures to maintain signal quality. This cable is ideal for indoor installations where LSZH properties are required.
