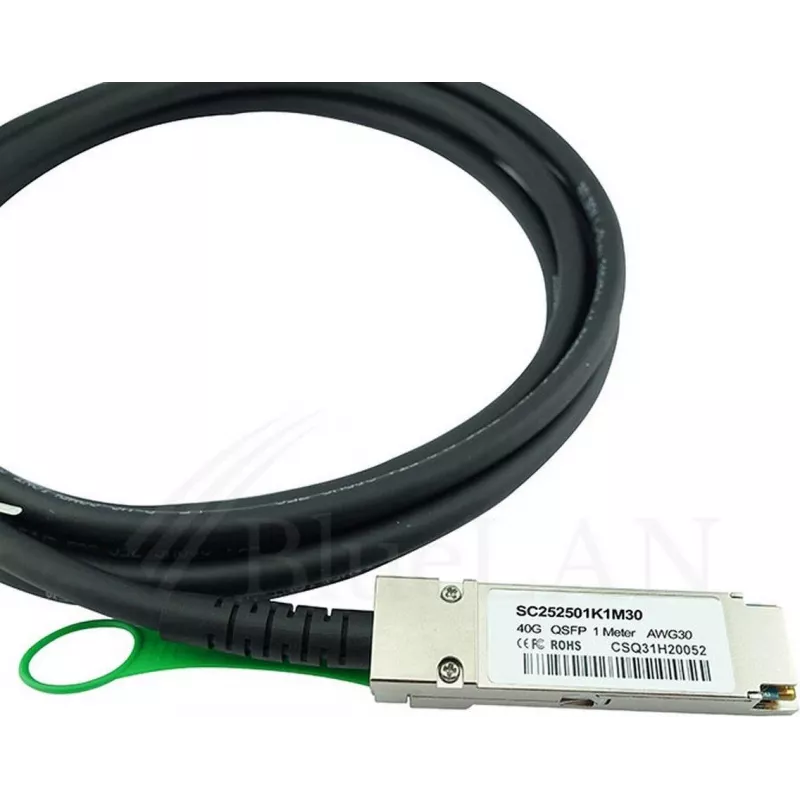

BlueOptics compatibile Maipu QSFP-STACK-30 BlueLAN QSFP Direct Attach cavo, 40GBASE-CR4, Ethernet/Infiniband QDR, 30AWG, 3 metri (QSFP-STACK-30-BL)

The BlueOptics QSFP-STACK-30-BL is a high-performance, compatible direct attach copper (DAC) cable designed for Maipu QSFP-STACK-30 series switches. It provides a cost-effective, low-power solution for 40 Gigabit Ethernet and InfiniBand QDR connections in data centers and high-performance computing environments.

Advantages

This passive copper cable offers reliable, low-latency connectivity with minimal power consumption (<0.5W). It is hot-swappable and fully compliant with IEEE 802.3ba 40GBASE-CR4 standards, ensuring seamless integration with existing network infrastructure. The 30 AWG construction provides flexibility while maintaining signal integrity over 3 meters.

Suitable for

• Data center top-of-rack and end-of-row switching
• High-performance computing clusters
• Enterprise network aggregation
• Storage area networks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Standard: 40GBASE-CR4
• Cable Length: 3 Meter
• Cable Type: Passive Copper
• Wire Gauge: 30 AWG
• Supported Protocols: Ethernet, InfiniBand QDR
• Compatibility: Maipu QSFP-STACK-30 (compatible)
• Hot-Swappable: Yes
• Power Consumption: <0.5W
• Impedance: 100 Ohm
• Jacket Material: PVC
• Application: Data Center Interconnect, High-Performance Computing (HPC)
• Compliance: RoHS, CE, FCC
• Lane Configuration: 4-lane

Recommendations

For optimal performance, use this cable with compatible Maipu QSFP-STACK-30 ports. Ensure proper handling to avoid damage to connectors. This cable is ideal for short-reach, high-bandwidth links within racks or between adjacent racks.
