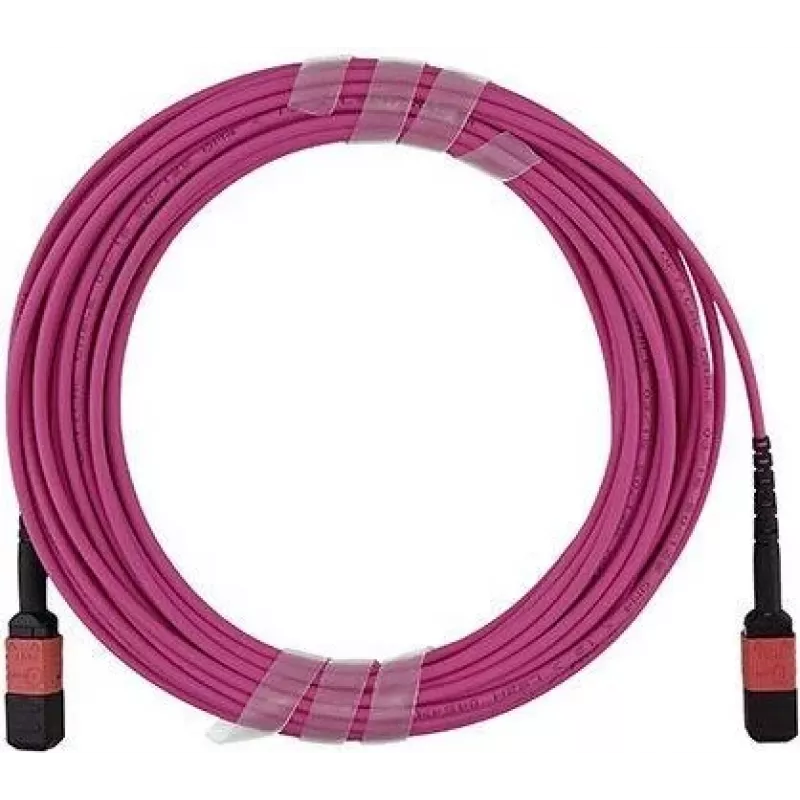

BlueOptics Dell GRD6H2W Cavo patch MPO-MPO multimodale OM4 7,5 metri

Fiber optic patch cable engineered for high-density data center interconnects, delivering reliable 40/100GbE transmission over 7.5 meters with OM4 laser-optimized multimode fiber. This MPO/MTP to MPO/MTP assembly features 12 fibers in a compact, LSZH jacketed design, ensuring low insertion loss and Type B polarity for seamless integration with Dell GRD6H2W-compatible systems.

Advantages

OM4 fiber supports 40GbE and 100GbE links up to 150 meters, making it ideal for backbone and aggregation layers. The LSZH jacket emits low smoke and zero halogen, enhancing safety in enclosed environments. Zirconia ceramic ferrules provide precise alignment and durability for repeated mating cycles. The 7.5-meter length offers flexibility in rack-to-rack or cabinet-to-cabinet connections without excess slack.

Suitable for

• Data center spine-leaf architectures requiring high port density
• Storage area networks (SAN) demanding low-latency connectivity
• High-performance computing clusters using parallel optics
• Telecom central offices and enterprise LAN backbones

Key specifications

• Connector type: MPO/MTP male to MPO/MTP male, 12-fiber
• Fiber type: OM4 multimode, 50/125 µm core/cladding
• Polarity: Type B (cross-over)
• Insertion loss: ≤0.35 dB, return loss: ≥20 dB
• Jacket: LSZH, aqua colour, 3.0 mm diameter
• Length: 7.5 meters (24.6 feet)
• Compliance: TIA/EIA-568-C.3, IEC 61754-7, RoHS

Recommendations

For optimal performance, pair this cable with OM4-compatible MPO cassettes or transceivers. Always inspect connector end faces before installation and use dust caps when not in use. Follow the minimum bend radius of 7.5 mm to avoid signal degradation.
