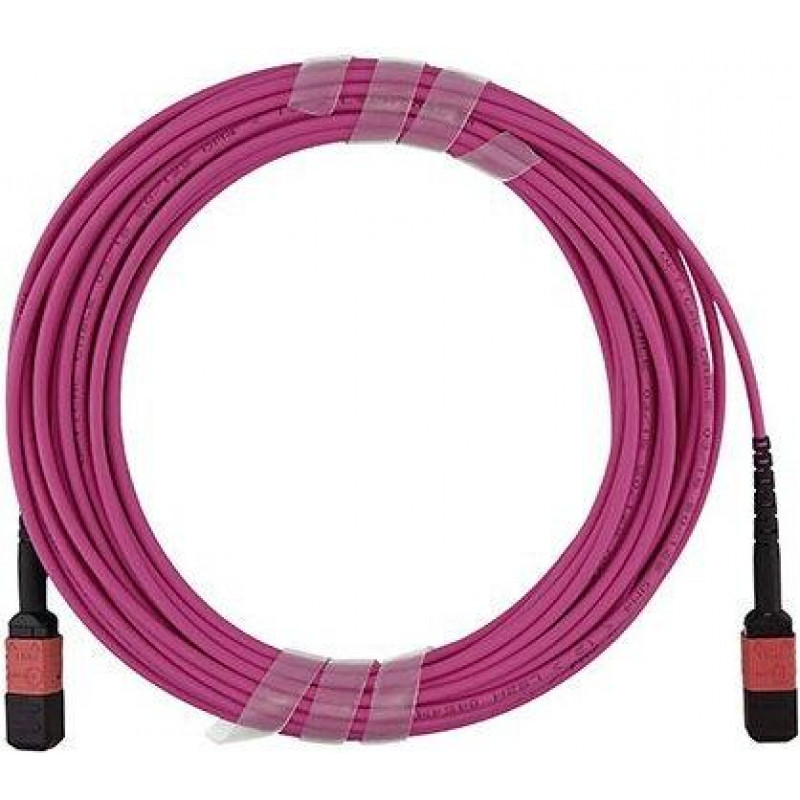

BlueOptics Dell GZ8J5TE Cavo patch MPO-MPO multimodale OM4 1 metro

Fiber optic patch cable engineered for high-density data center interconnects, delivering reliable 100 Gbps throughput over multi-mode OM4 fiber. The BlueOptics GZ8J5TE MPO-MPO cable provides a robust 12-fiber link in a compact 1-meter length, ideal for patching between switches, servers, and storage arrays in modern network environments.

Advantages

Precision-polished MPO connectors with ceramic ferrules ensure low insertion loss (< 0.35 dB) and stable return loss (> 20 dB), maintaining signal integrity in demanding 10/40/100 Gigabit Ethernet applications. The aqua-colored jacket conforms to industry standards for OM4 identification, while the 50/125 µm core/cladding geometry supports high modal bandwidth for extended reach at high data rates. Fully compliant with TIA/EIA-568-C.3 and ISO/IEC 11801, this cable simplifies cable management and reduces installation time with its push-pull MPO interface.

Suitable for

• High-speed backbone connections in data centers and enterprise networks
• Server-to-switch and switch-to-switch patching in 40G and 100G environments
• Storage area networks (SAN) and high-performance computing clusters
• Dell networking equipment requiring GZ8J5TE-compatible MPO cabling

Key specifications

• Connector type: MPO (Multi-fiber Push On) to MPO
• Fiber mode: Multi-mode OM4, 50/125 µm
• Number of fibers: 12
• Cable length: 1 meter
• Jacket color: Aqua
• Data rate support: up to 100 Gbps
• Insertion loss: < 0.35 dB typical
• Return loss: > 20 dB typical
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, pair with OM4-compatible transceivers and ensure proper bend radius during installation. This cable is ideal for high-density patching fields where space is at a premium.
