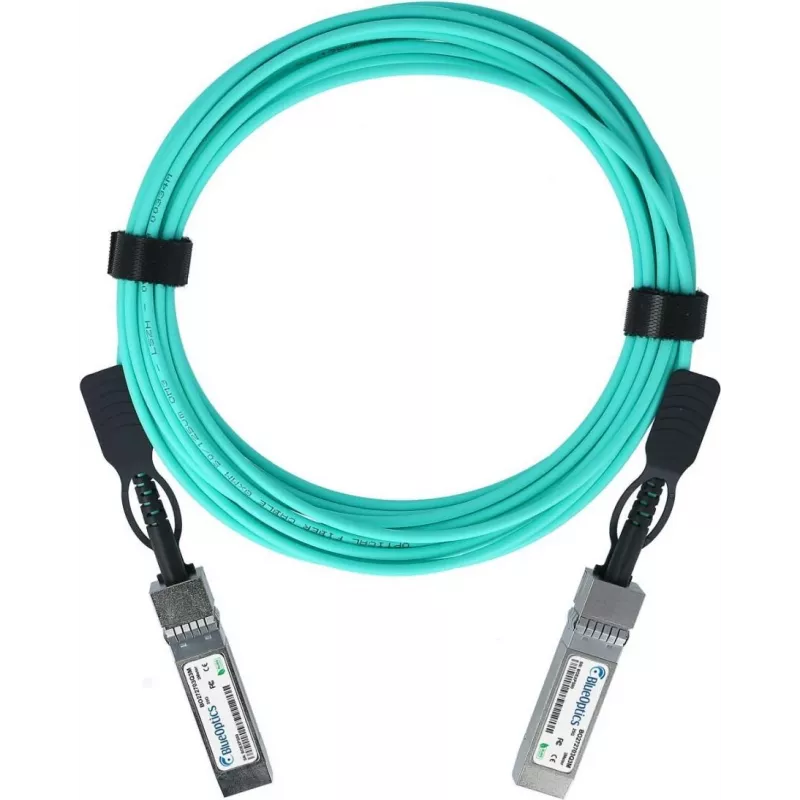

BlueOptics Lenovo 4X97A94013-BO SFP28 cavo ottico attivo (AOC), 25GBASE-SR, 15m

The BlueOptics Lenovo 4X97A94013-BO SFP28 Active Optical Cable (AOC) is a high-performance, cost-effective solution for 25 Gigabit Ethernet connections in data centers and enterprise networks. This 15-meter cable integrates SFP28 connectors at both ends, providing a reliable and low-power link for short-range applications.

Advantages

This AOC offers significant advantages over traditional copper cabling, including longer reach, lighter weight, and immunity to electromagnetic interference. With hot-pluggable SFP28 connectors and support for Digital Diagnostic Monitoring (DDM), it simplifies deployment and maintenance. The LSZH jacket ensures safety in plenum spaces.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network backbone links
• 25GBASE-SR compliant switches and NICs

Key specifications

• Product Type: Active Optical Cable (AOC)
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-SR
• Cable Length: 15 meters
• Fiber Type: Multi-Mode Fiber (MMF)
• Wavelength: 850 nm
• Compatibility: Lenovo 4X97A94013 and MSA-compliant SFP28 ports
• Hot-Pluggable: Yes
• Digital Diagnostic Monitoring (DDM): Yes
• Power Consumption: < 1.0 W per end
• Operating Temperature: 0°C to 70°C
• Supply Voltage: 3.3 V
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Compliance: RoHS, CE, FCC, MSA Compliant

Recommendations

For optimal performance, ensure your network equipment supports SFP28 25GBASE-SR modules. This cable is a direct replacement for Lenovo 4X97A94013 and is fully compatible with other MSA-compliant devices.
