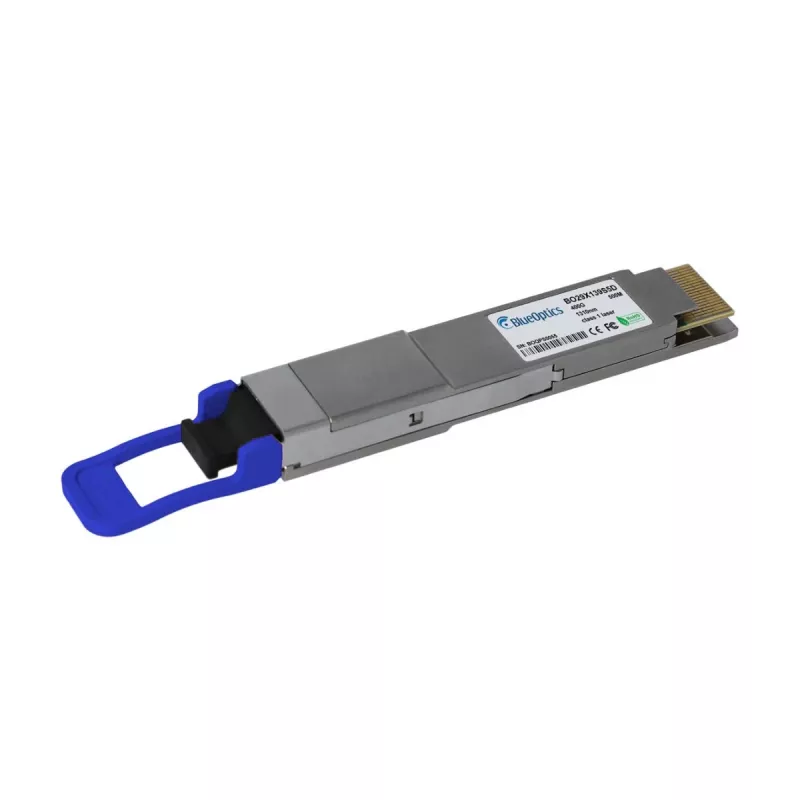

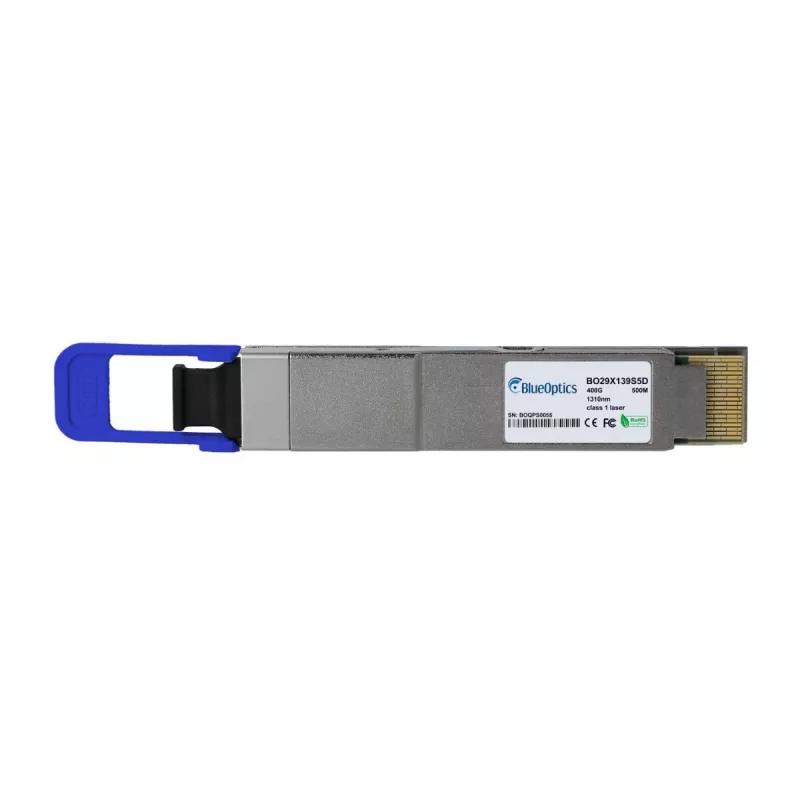

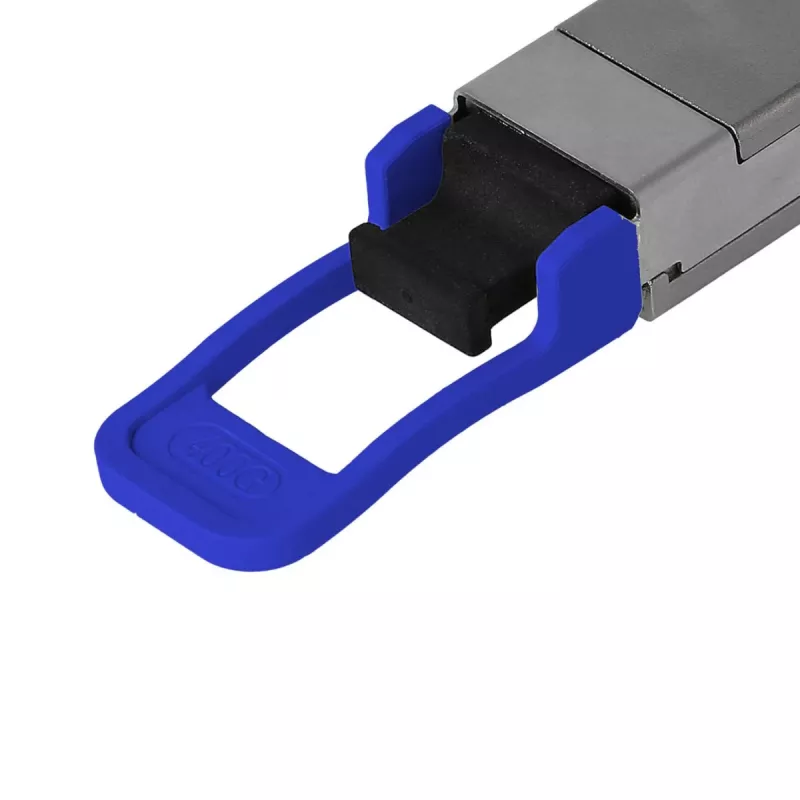

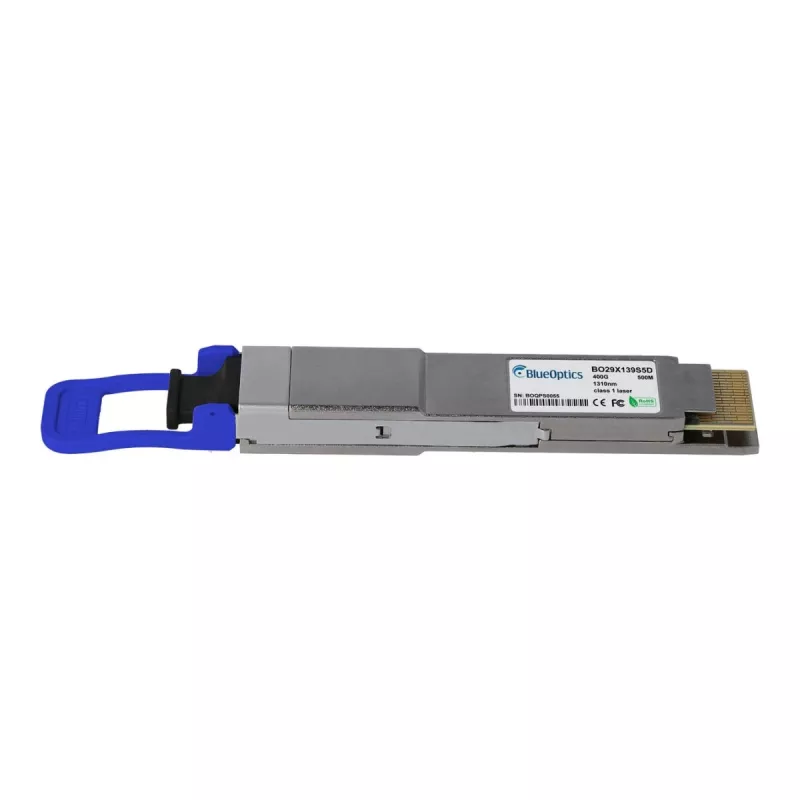

BlueOptics Networks 400G-DR4-QSFPDD500M Compatibile BlueOptics QSFP-DD BO29X139S5D

The BlueOptics Networks 400G-DR4-QSFPDD500M is a high-performance QSFP-DD optical transceiver module designed for 400 Gigabit Ethernet applications. It is fully compatible with BlueOptics Networks equipment and offers reliable connectivity for data centers and enterprise networks.

Advantages

This transceiver supports 400 Gbps data rates over single-mode fiber with a reach of up to 500 meters. It features hot-pluggable capability, low power consumption (<12W), and digital diagnostics monitoring for real-time performance tracking.

Suitable for

• Data Center Interconnects (DCI)
• Enterprise Networking
• High-Performance Computing (HPC)
• 400GBASE-DR4 compliant systems

Key specifications

• Form Factor: QSFP-DD
• Data Rate: 400 Gbps (4x 100G PAM4)
• Max Reach: 500 meters over Single-Mode Fiber (SMF)
• Wavelength: 1310 nm
• Connector Type: MPO-12 (MTP/MPO-12 APC)
• Power Consumption: <12 W typical
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3bs, MSA Compliant

Recommendations

For optimal performance, use with single-mode fiber and ensure proper MPO connector cleaning. This module is ideal for high-density 400G deployments.
