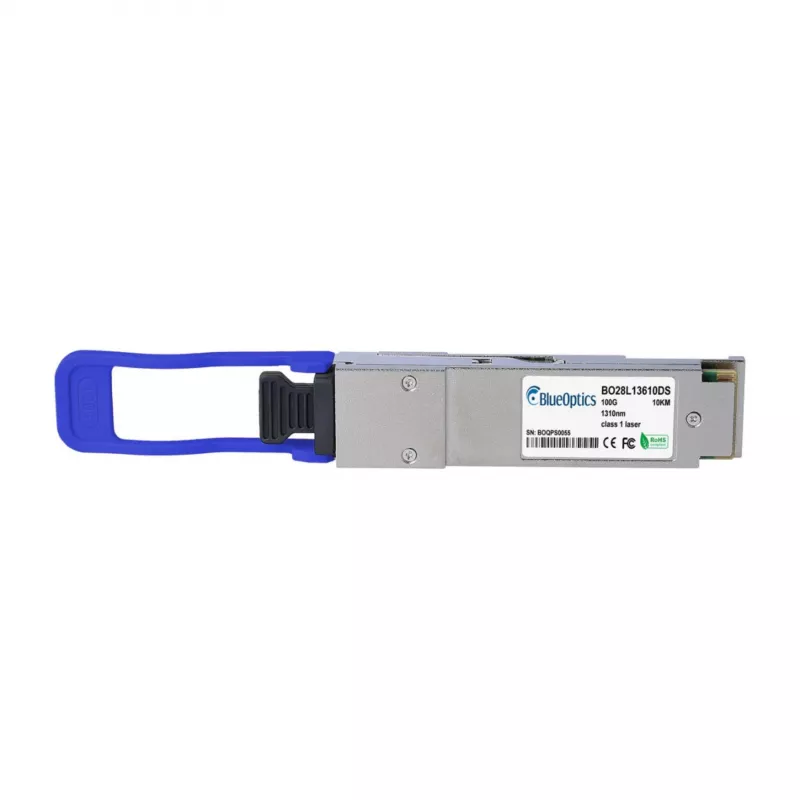

BlueOptics QSFP28 ricetrasmettitore 100GBASE-LR1 10km Duplex LC SMF compatibile con E100G-QSFP28-LR1

The BlueOptics E100G-QSFP28-LR1 is a high-performance, hot-pluggable QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with the E100G-QSFP28-LR1 standard and offers reliable connectivity over single-mode fiber at distances up to 10 km. This transceiver is ideal for data center interconnects and enterprise networks, providing low power consumption and robust performance.

Advantages

This BlueOptics transceiver ensures seamless integration with existing network infrastructure, offering a cost-effective alternative to OEM modules without compromising on quality or performance. With support for Digital Diagnostic Monitoring (DDM/DOM), network administrators can monitor real-time operating parameters for enhanced network management. The hot-pluggable design simplifies installation and maintenance, reducing downtime.

Suitable for

• 100 Gigabit Ethernet links in data centers
• Enterprise network backbone connections
• Service provider access and aggregation networks
• High-speed storage area networks (SAN)

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (100GBASE-LR1)
• Wavelength: 1310 nm
• Maximum Reach: 10 km over Single-Mode Fiber (SMF)
• Connector: Duplex LC
• Power Consumption: < 4.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, IEEE 802.3cu
• Hot-Pluggable: Yes
• Voltage: 3.3 V

Recommendations

For optimal performance, use with OS2 single-mode fiber patch cables. Ensure your network equipment supports QSFP28 modules and 100GBASE-LR1 standards. This transceiver is a direct replacement for OEM part E100G-QSFP28-LR1.
