BlueOptics SFP3131BU3MS cavo in fibra ottica InfiniBand 3 m LC giallo

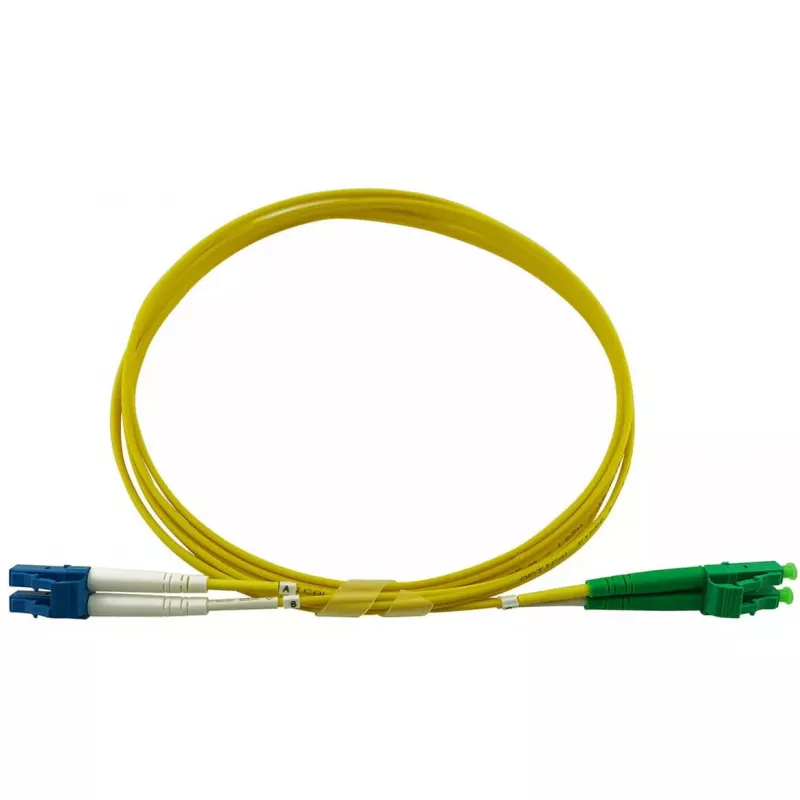

BlueOptics SFP3131BU3MS is a 3 meter duplex fiber optic patch cord with LC/UPC to LC/APC (8°) connectors, laser-optimized single-mode G.657.A1 fiber (E9/125 µm) and a yellow LSZH jacket. It supports transmission at 1310 nm and 1550 nm and is intended for connecting patch panels, optical transceivers and other fiber equipment in data centers and networking environments.

Advantages

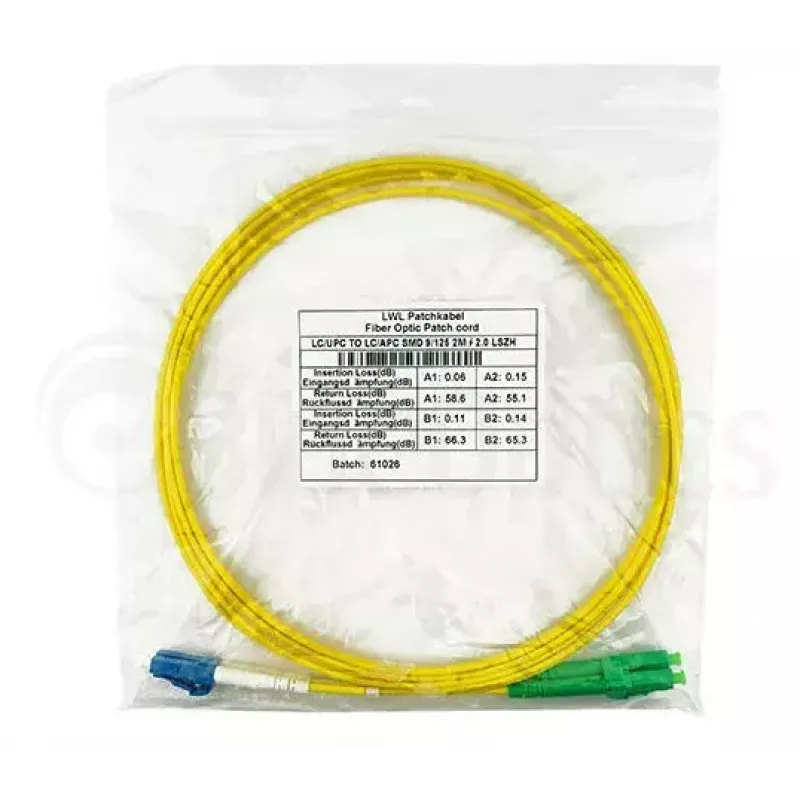

The cable provides low attenuation (0.4 dB/km), low insertion loss and high return loss for reliable single-mode transmission. Connectors use zirconia ceramic ferrules from reputable manufacturers and guarantee up to 1500 mating cycles. Each cable is factory-tested with interferometer and OTDR and shipped with a measurement report of insertion loss and return loss. The LSZH jacket reduces smoke and avoids halogen release in case of fire, and the product meets Telcordia GR-326-Core and common IEC and RoHS standards.

Suitable for

Key specifications

How to use

Route the BlueOptics SFP3131BU3MS cable between the required ports, ensuring the LC/UPC and LC/APC connectors are aligned to the matching adapter or transceiver receptacle. Avoid tight bends and maintain the minimum bend radius for single-mode G.657.A1 fiber. Secure the cable to trays or racks to prevent strain on connectors. Verify link performance using the provided insertion- and return-loss measurements after installation.

Recommendations

Use this LC/UPC–LC/APC duplex single-mode patch cord for short interconnects inside racks and between adjacent equipment where a 3 m length and LSZH jacket are appropriate; request custom lengths if longer runs are needed and consult the supplied test report to confirm link specifications before commissioning.
