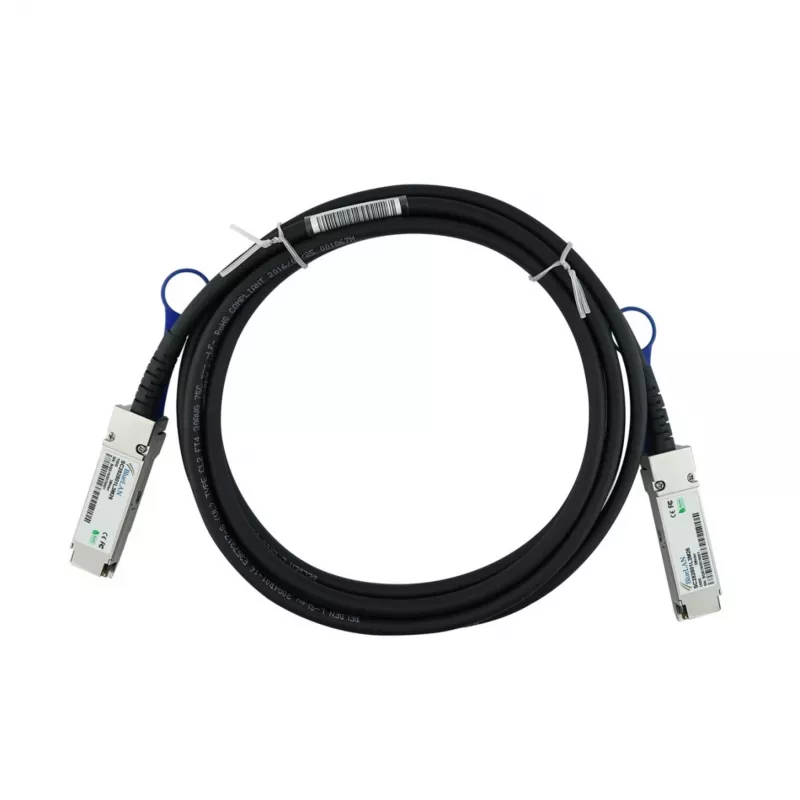

BlueOptics Synology QSFP28-DAC-5M Cavo DAC QSFP28 compatibile BlueLAN SC282801L5M26

The BlueOptics Synology QSFP28-DAC-5M Compatible BlueLAN DAC QSFP28 SC282801L5M26 is a high-performance direct attach copper cable designed for 100 Gigabit Ethernet connectivity. This passive DAC cable provides a cost-effective and reliable solution for short-range interconnects in data centers, network attached storage (NAS), and server environments.

Advantages

This cable offers low power consumption (<0.5W), hot-pluggable design, and full compliance with SFF-8665 (QSFP28 MSA) standards. The 5-meter length provides flexibility in rack configurations while maintaining signal integrity.

Suitable for

• Data center interconnect
• Network Attached Storage (NAS) connectivity
• Server-to-switch or switch-to-switch links
• High-performance computing clusters

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Cable Length: 5 meters
• Cable Type: Passive Copper
• Compatibility: Synology QSFP28-DAC-5M Compatible
• Impedance: 100 Ohm
• Voltage Supply: 3.3V
• Power Consumption: <0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: SFF-8665 (QSFP28 MSA)
• Jacket Material: PVC
• Wire Gauge: 30AWG
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is ideal for short-distance, high-speed connections within a rack or between adjacent racks.
