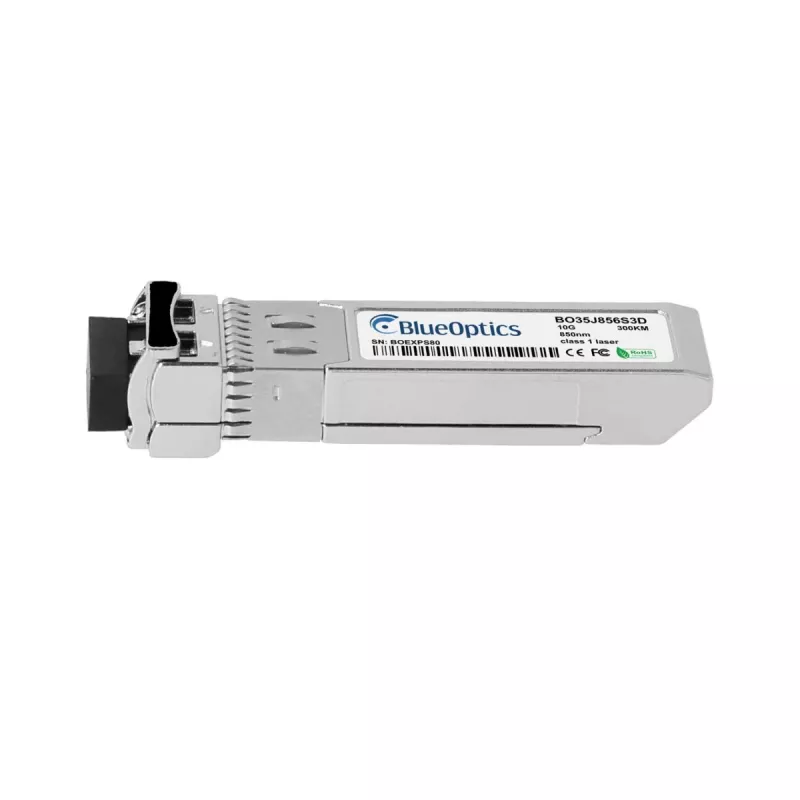

BlueOptics TP-Link SM5110-SR BO35J856S3D SFP+ Ricetrasmettitore, 10GBASE-SR, Fibra Multimodale, 850nm, 300m

The BlueOptics TP-Link SM5110-SR BO35J856S3D is a high-performance SFP+ transceiver designed for 10 Gigabit Ethernet networks. It provides reliable connectivity over multimode fiber at 850nm wavelength, supporting distances up to 300 meters on OM3 fiber. This hot-swappable module is MSA compliant and compatible with TP-Link SM5110-SR and other 10GBASE-SR SFP+ devices.

Advantages

Cost-effective solution for 10G network upgrades with low power consumption under 1W. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. VCSEL laser technology ensures stable optical output and long operational life.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-speed storage area networks
• Telecommunications equipment

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Ethernet Standard: 10GBASE-SR
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Max Cable Distance: 300 m (OM3)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Compatibility: TP-Link SM5110-SR
• Form Factor: SFP+
• Protocol: Ethernet
• Laser Type: VCSEL
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1W
• Optical Interface: SR (Short Reach)
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber patch cables. Ensure your switch or router supports SFP+ 10GBASE-SR modules. This transceiver is ideal for short-reach 10G links within racks or between adjacent racks.
