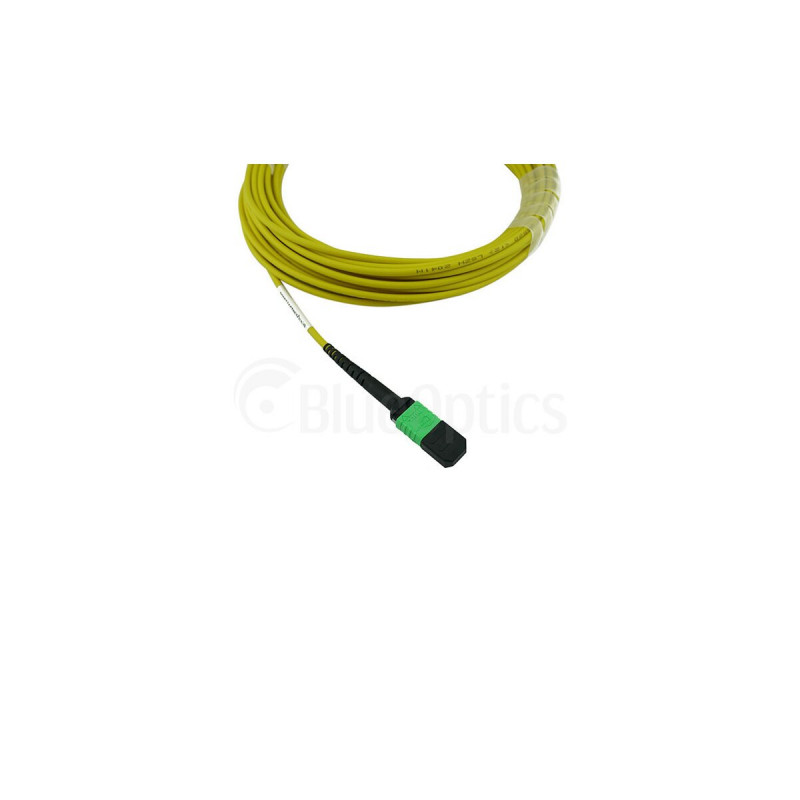

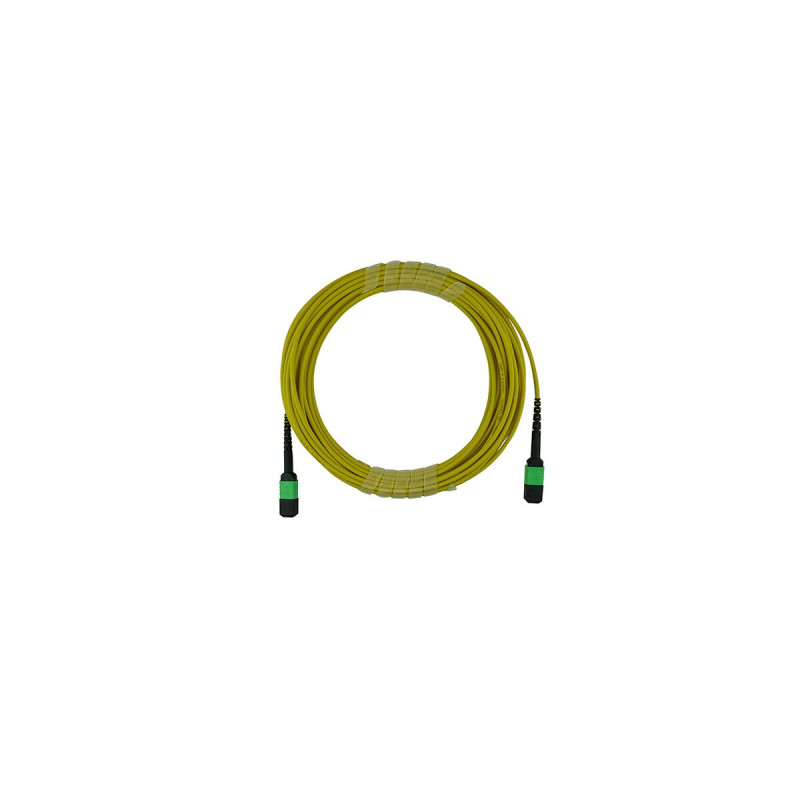

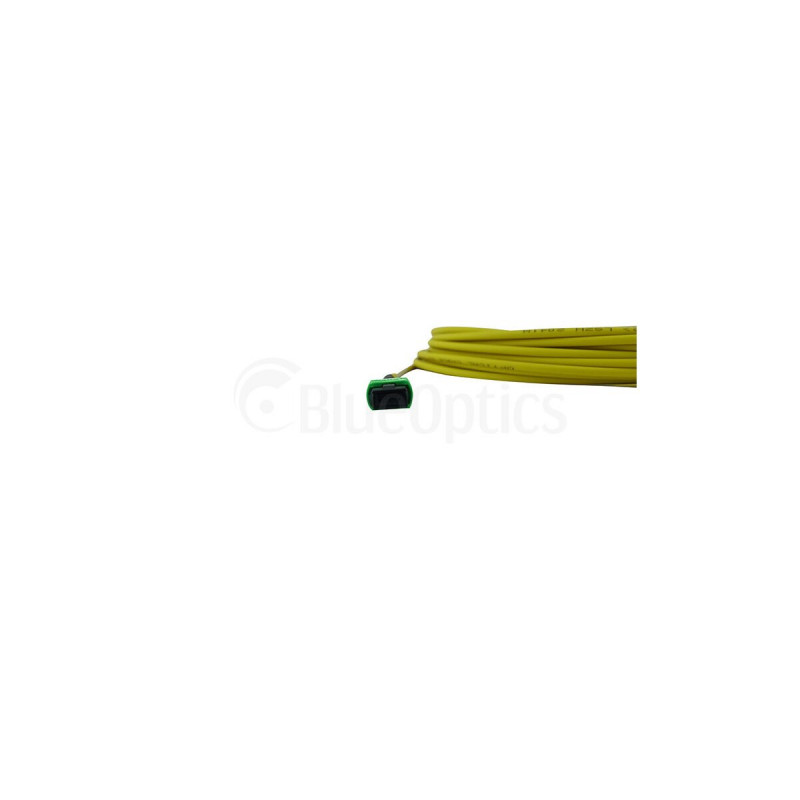

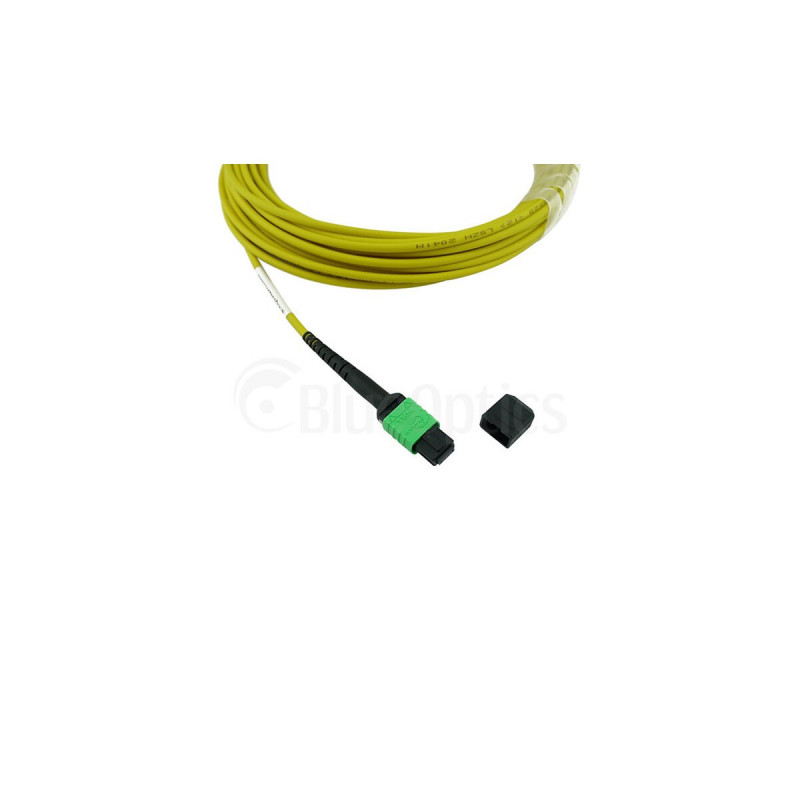

BlueOptics UACC-OFC-SA-MPMP-7.5M cavo patch MPO-MPO monomodale OS2 compatibile 7,5 metri

In high-density data centers, every connection counts. This 7.5-meter MPO to MPO singlemode OS2 patch cable from BlueOptics delivers the performance and reliability needed for 40G and 100G parallel optics. It features 12 fibers in a compact MPO connector, ideal for backbone cabling and high-speed switch-to-switch links.

Key specifications

• Connector type: MPO (male) to MPO (male)
• Fiber type: Singlemode OS2 (G.657.A1/A2)
• Fiber count: 12 fibers
• Polarity: Type B (cross-over)
• Cable length: 7.5 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Yellow
• Insertion loss: ≤ 0.35 dB typical
• Return loss: ≥ 50 dB typical
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 10 mm
• Compliance: RoHS, CE

Why choose it

Engineered for high-density fiber environments, this cable ensures low insertion loss and high return loss, minimizing signal degradation. The LSZH jacket provides safety in case of fire, and the Type B polarity simplifies connectivity for parallel optics. Its 7.5-meter length offers flexibility in rack layouts without excess slack.

Ideal use cases

• 40G and 100G Ethernet connections in data centers
• Backbone cabling between switches, routers, and patch panels
• Telecommunications and enterprise network infrastructure
• High-speed storage area networks (SANs)

Good to know

This cable is compatible with standard MPO interfaces and meets IEEE 802.3ae, 802.3ba, and TIA/EIA-604-5 (FOCIS 5) standards. The OS2 fiber supports long-distance transmission up to 10 km at 10G, making it suitable for both intra-building and campus applications.
