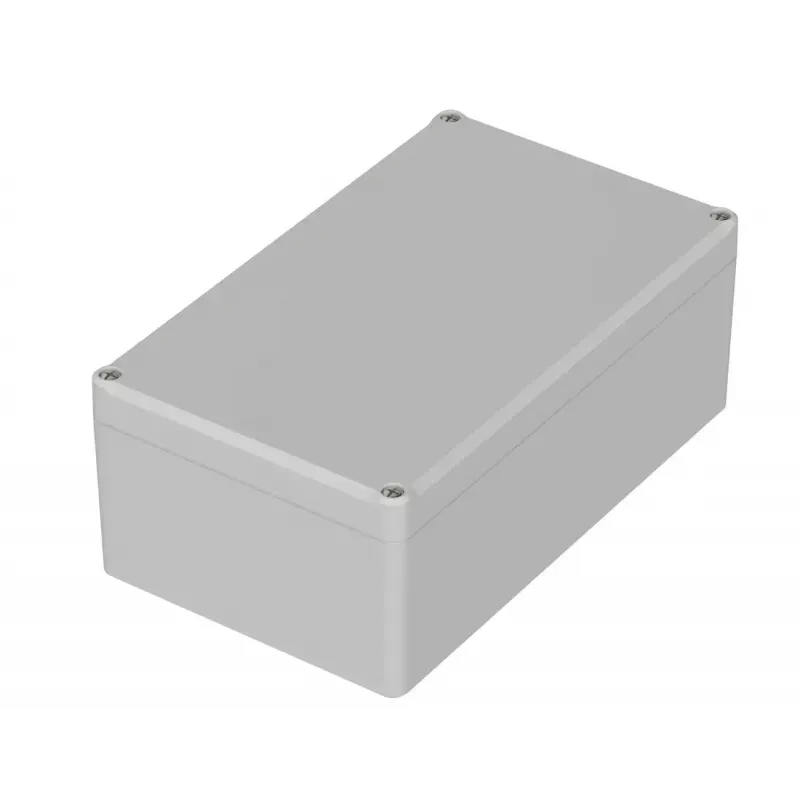

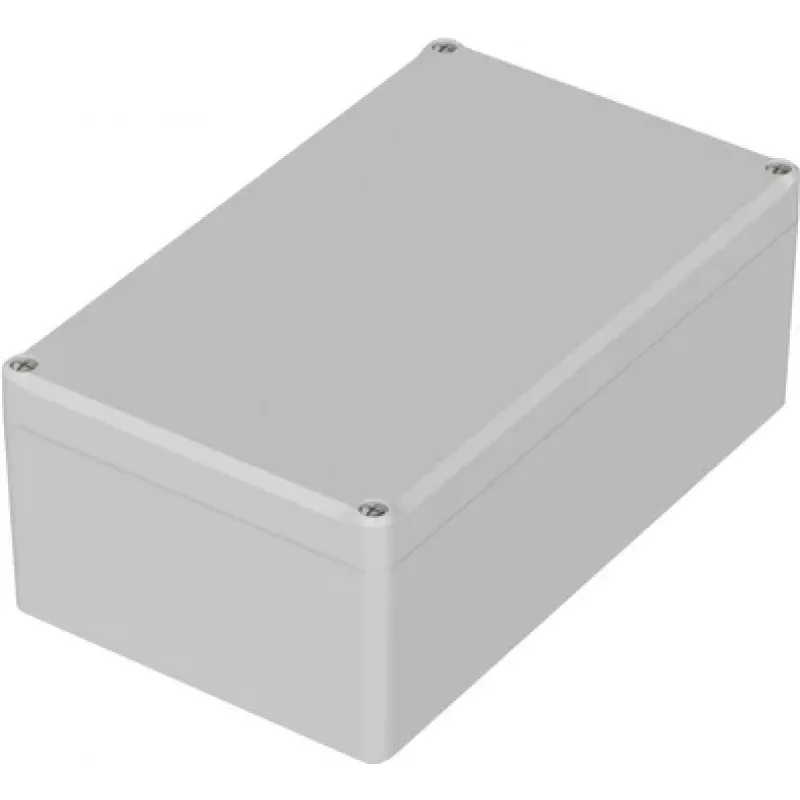

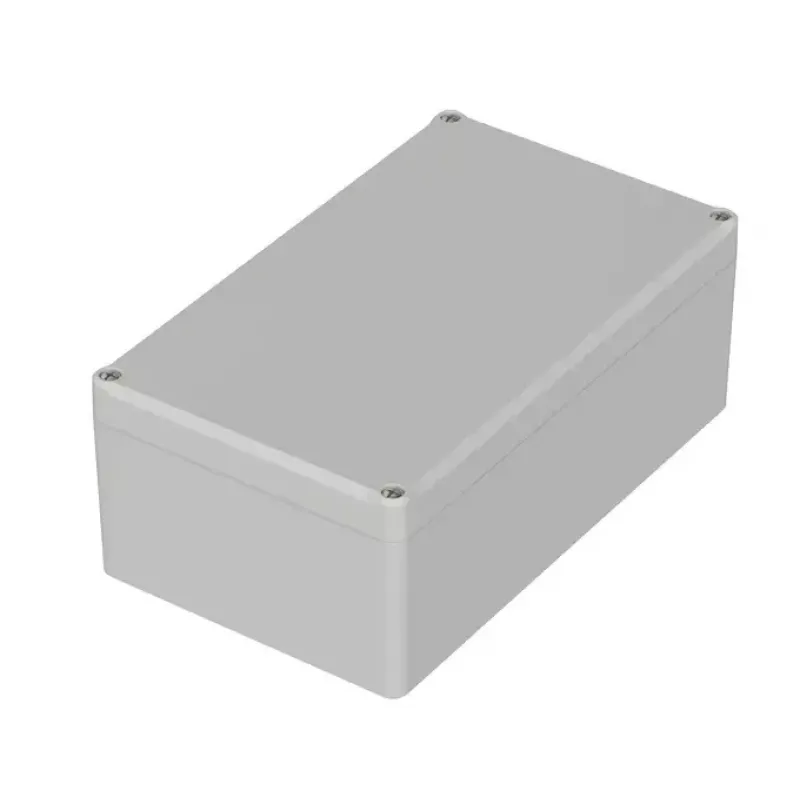

Bopla custodia universale 200 x 120 x 77 policarbonato grigio chiaro (RAL 7035) EM 221 62221000

When electronic components need protection from dust, moisture, and mechanical impact, a robust enclosure is essential. The Bopla Universal Enclosure EM 221 provides a secure housing with a light grey polycarbonate body, suitable for a wide range of industrial and electrical applications.

Who is it for

This enclosure is ideal for engineers, system integrators, and panel builders who require a durable, UV-resistant, and halogen-free solution for housing electronics in demanding environments. It suits control systems, junction boxes, and DIN rail or wall-mounted installations.

Main features

• External dimensions: 200 mm (L) x 120 mm (W) x 77 mm (H)
• Material: Polycarbonate (PC), light grey, RAL 7035
• Impact resistance: IK07
• Protection class: IP65
• Operating temperature range: -40 °C to +100 °C
• Flammability rating: UL 94 V-2
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PU)
• UV resistant and halogen-free
• RoHS compliant
• Internal mounting points for easy installation
• Optional wall mounting or DIN rail mounting with accessories

Specifications

• Brand: Bopla
• Model: EM 221
• MPN: 62221000
• EAN: 4049505025466
• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External length: 200 mm
• External width: 120 mm
• External height: 77 mm
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL 94 V-2
• Gasket material: Polyurethane (PU)
• UV resistance: Yes
• Halogen-free: Yes
• RoHS compliant: Yes
• Mounting options: Wall mounting, DIN rail mounting (with accessories)
• Internal mounting points: Yes

Tips

For outdoor or harsh environments, ensure proper cable glands and sealing to maintain the IP65 rating. The enclosure can be mounted on a wall or DIN rail using compatible accessories.
