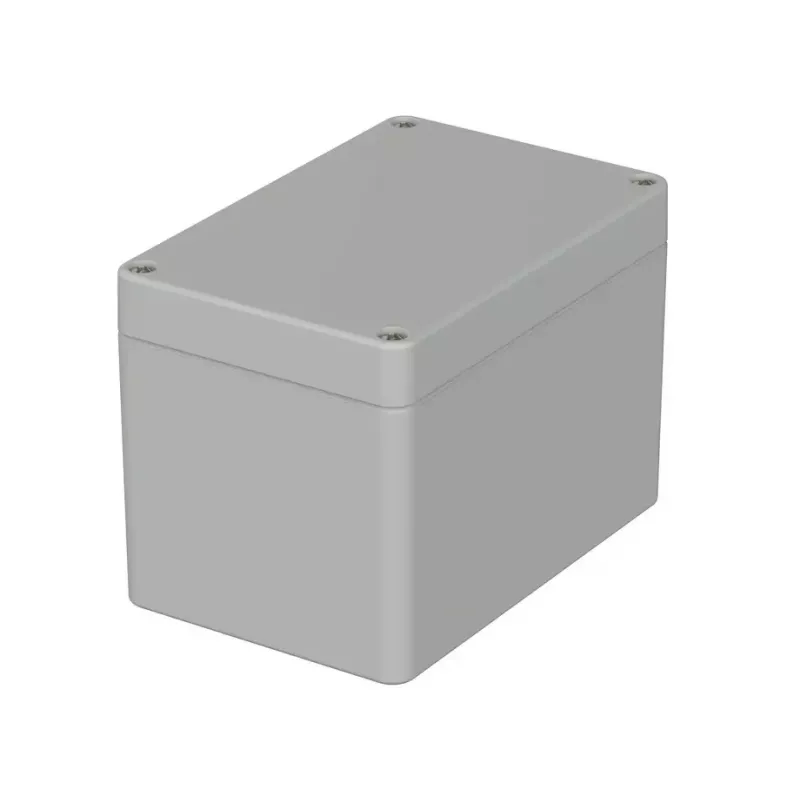

Bopla EUROMAS M 226 custodia universale 120 x 80 x 85 mm policarbonato grigio chiaro 02226000

Electrical installers and control panel builders often need a robust, weather-resistant housing for sensitive electronics in industrial environments. The Bopla EUROMAS M 226 universal enclosure provides a light grey polycarbonate shell measuring 120 x 80 x 85 mm, offering IP65 protection against dust and water jets. Its impact-resistant body (IK07) withstands rough handling, while the operating temperature range of -40 °C to +80 °C suits both cold storage and hot machinery areas.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions: 120 mm (L) x 80 mm (W) x 85 mm (H)
• Ingress protection: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +80 °C
• Gasket material: Polyurethane (PU)
• Lid screws: Captive stainless steel
• Mounting: Internal bosses, wall mountable
• Series: EUROMAS M

Why choose it

The polycarbonate construction is halogen-free and offers high impact strength, making it suitable for demanding applications. The captive stainless steel lid screws prevent loss during assembly, and the polyurethane gasket ensures a reliable seal for IP65 protection.

Ideal use cases

• Housing for industrial controls and sensors
• Outdoor electrical junctions requiring weather resistance
• Machine building and automation projects
• Custom electronics enclosures with internal mounting bosses

Good to know

The enclosure is part of the EUROMAS M series, known for its modular design and ease of assembly. The light grey colour (RAL 7035) blends well in industrial settings.
