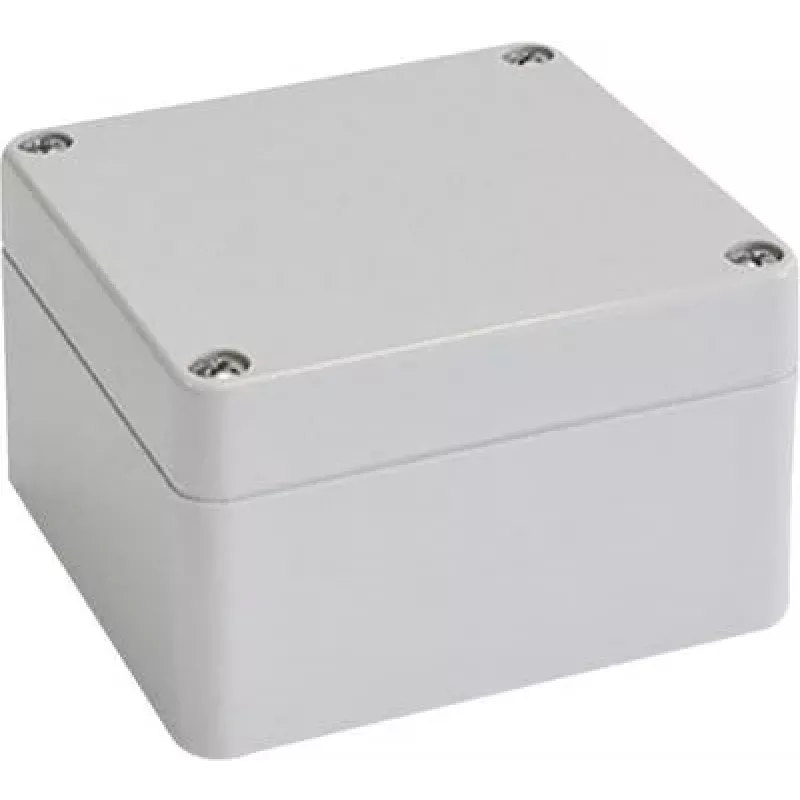

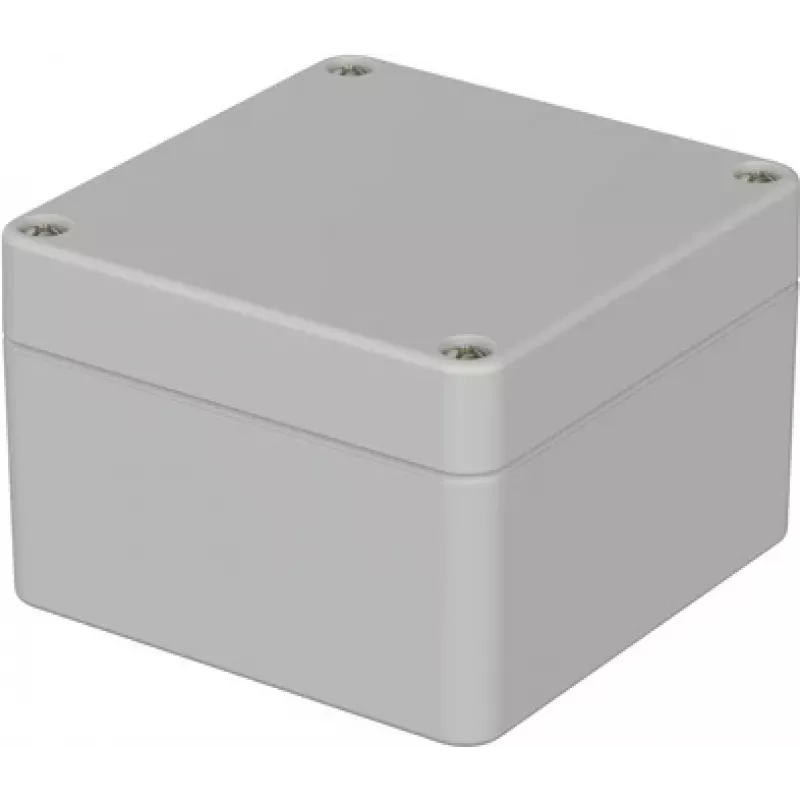

Bopla EUROMAS T 210 Custodia universale 82 x 80 x 55 mm ABS grigio chiaro IP65 03210000

The Bopla EUROMAS T 210 stands out with its compact 82 x 80 x 55 mm footprint and robust light grey ABS construction, offering a reliable housing for industrial electronics where space is limited but protection is critical.

Highlights

• Universal enclosure for industrial electronics, control systems, and measurement technology
• Made of ABS (Acrylonitrile Butadiene Styrene) in light grey (RAL 7035)
• External dimensions: 82 mm length, 80 mm width, 55 mm height
• IP65 protection class for dust-tight and water jet resistance
• Solid lid fastened with 4 polyamide screws
• Polyurethane (PUR) gasket included for reliable sealing
• Integrated screw bosses for PCBs or mounting plates
• Operating temperature range: -40°C to +80°C
• Flammability rating: UL 94 HB
• Smooth surface finish

In daily use

This enclosure is designed for demanding environments. The ABS material provides good impact resistance and electrical insulation, while the IP65 rating ensures protection against dust and low-pressure water jets. The integrated screw bosses simplify mounting of internal components, and the PUR gasket maintains a tight seal over time. The light grey colour offers a neutral appearance suitable for various applications.

Full specifications

• Brand: Bopla
• Model: EUROMAS T 210
• MPN: 03210000
• EAN: 4016138523423
• Enclosure Type: Universal Enclosure
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External Length: 82 mm
• External Width: 80 mm
• External Height: 55 mm
• Protection Class (IP Rating): IP65
• Lid Fastening: 4x Polyamide Screws
• Gasket Material: Polyurethane (PUR)
• Operating Temperature Range: -40°C to +80°C
• Flammability Rating: UL 94 HB
• Internal Mounting Features: Integrated screw bosses for PCBs/mounting plates
• Surface Finish: Smooth
• Lid Type: Solid
• RoHS Compliance: Yes
• CE Compliant: Yes
• Typical Application: Industrial electronics, control systems, measurement technology

Final note

With its compact size and IP65 protection, the EUROMAS T 210 is a dependable choice for housing sensitive electronics in industrial settings.
