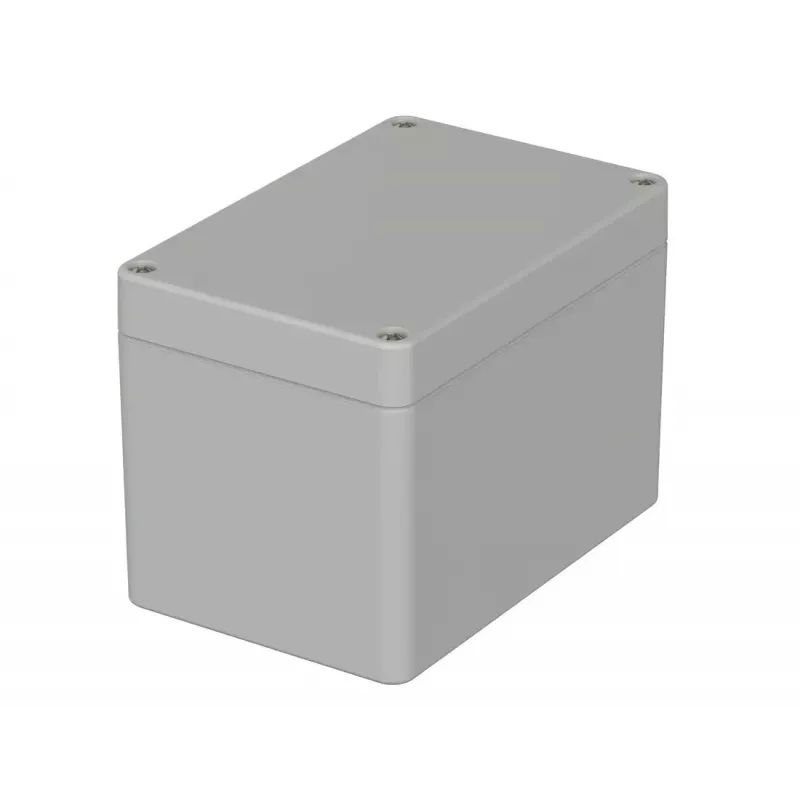

Bopla EUROMAS T 226 case universale 120 x 80 x 85 mm ABS grigio chiaro 03226000

Protecting sensitive electronics in industrial environments requires a housing that seals out dust and moisture while offering flexible internal mounting. The Bopla EUROMAS T 226 universal enclosure provides a robust ABS shell with a light grey finish, sized to accommodate PCBs, terminal blocks, or small control assemblies.

Who is it for

Engineers and technicians building custom electronic devices, junction boxes, or control units for machinery, automation, and outdoor installations where a compact, wall-mountable enclosure is needed.

Main features

• ABS (Acrylonitrile Butadiene Styrene) body in light grey (RAL 7035)
• External dimensions: 120 mm length, 80 mm width, 85 mm height
• Recessed lid area for membrane keypads or labels
• Integrated screw channels for wall mounting
• Internal mounting bosses for PCBs or mounting plates
• Captive stainless steel lid screws

Specifications

• Material: ABS
• Colour: Light Grey
• External dimensions (L x W x H): 120 x 80 x 85 mm
• Flammability rating: UL 94 V-2
• Operating temperature range: -40 °C to +80 °C
• Gasket material: Polyurethane (PUR)
• Impact resistance: IK07
• Halogen-free: Yes

Tips

The recessed lid is ideal for adding a custom membrane keypad or printed label. For outdoor use, consider the enclosure's UV resistance limitations and select a suitable sealing method for cable entries.
