Bopla PS 642 custodia a parete 600 x 400 x 230 mm grigio chiaro (RAL 7035) 42164200

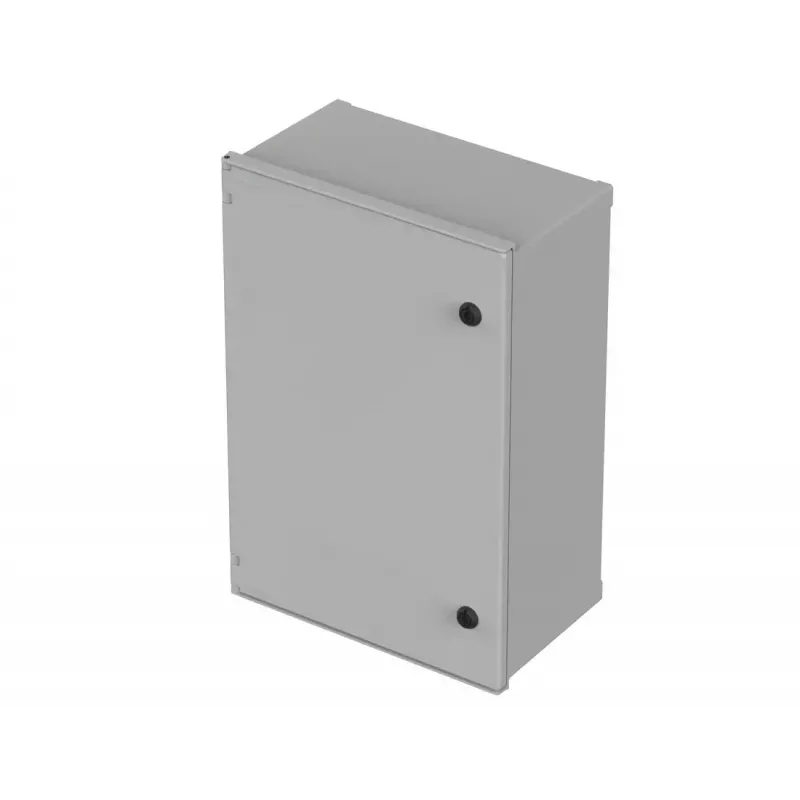

Wall-mount enclosure with a solid lid, made from light grey polystyrene (RAL 7035). The enclosure measures 600 x 400 x 230 mm and provides a protected space for electrical and electronic components.

Advantages

Polystyrene body with stainless steel lid screws and a polyurethane foam gasket. Integrated mounting bosses allow installation of mounting plates or DIN rails.

Suitable for

• Industrial control systems
• Electrical distribution
• Indoor or protected outdoor applications

Key specifications

• External dimensions: 600 x 400 x 230 mm
• Material: Polystyrene (PS)
• Colour: Light grey, RAL 7035
• Lid type: Solid lid
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Operating temperature range: -40 °C to +70 °C
• Flammability rating: UL 94 V-0
• Mounting type: Wall mounting
• Internal mounting options: Integrated mounting bosses for mounting plates/DIN rails

Recommendations

Verify the required internal clearance and component layout before installation.
