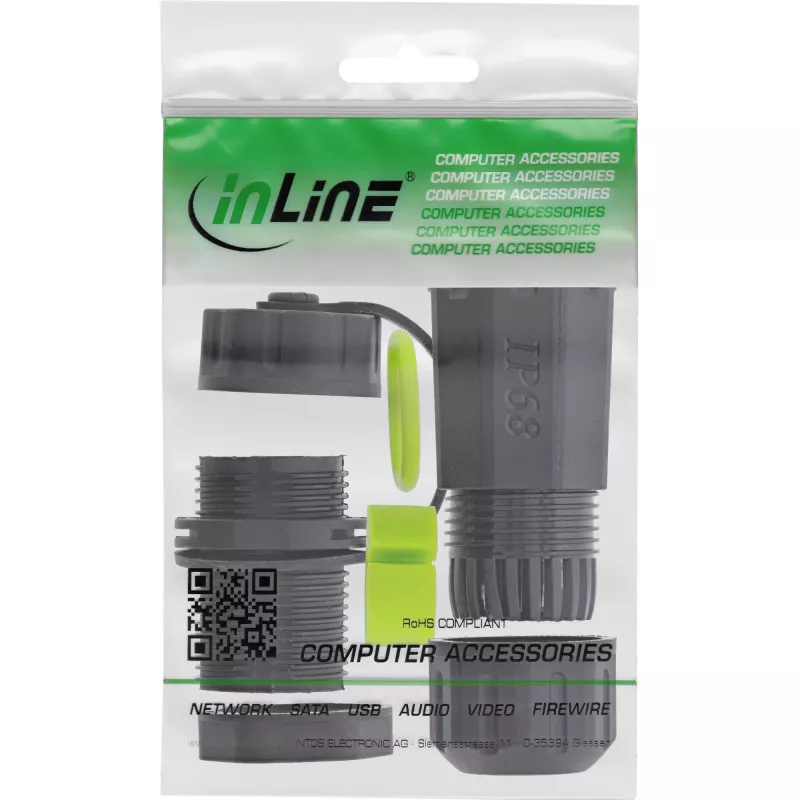

InLine 69927C Accoppiatore in fibra ottica LC, corto, IP68, presa 2x2 LC, M20

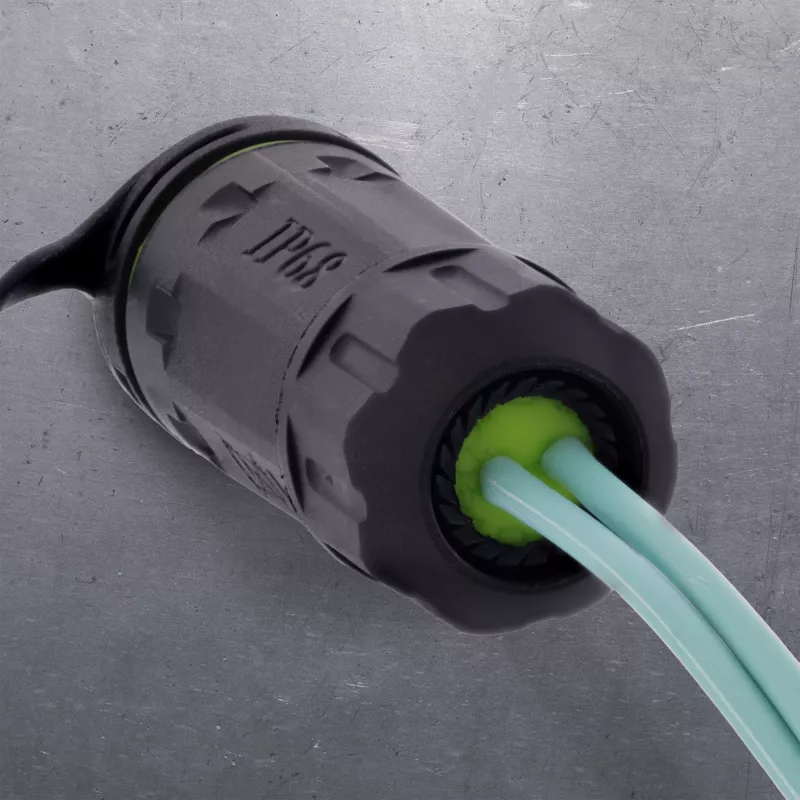

The InLine 69927C is a compact fiber optic coupler with an extra short design, measuring only 74 mm in length, making it ideal for confined spaces in network cabinets or outdoor enclosures. It features two LC duplex sockets and supports single-mode connections with UPC or APC polish. With IP68 protection, it reliably guards against moisture, dust, and temperature fluctuations from -40 °C to +85 °C.

Key features

• Extra short design (74 mm long) for confined spaces
• IP68 protection against moisture, dust, and mechanical influences

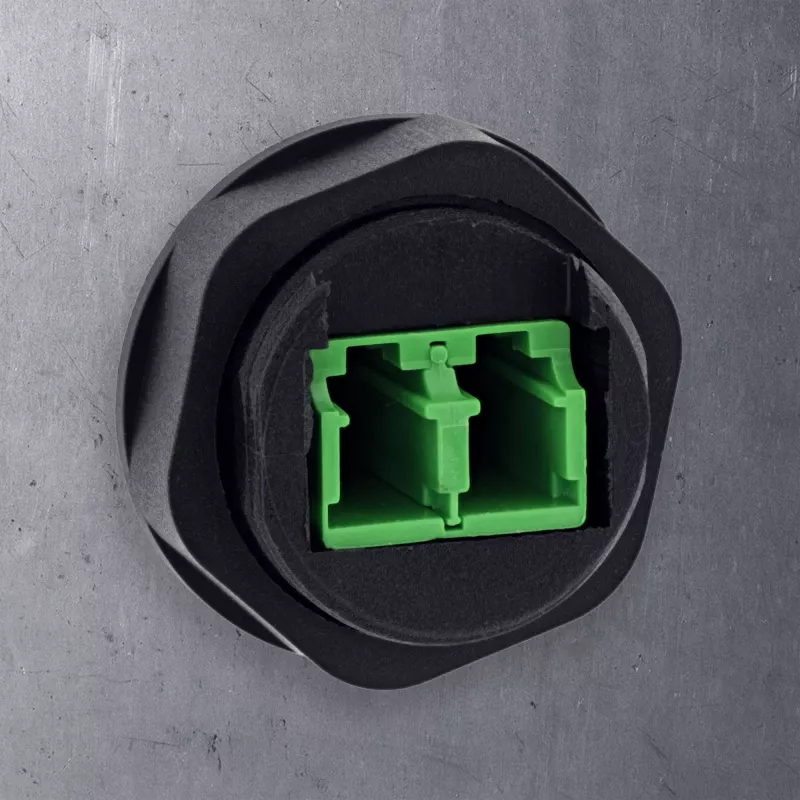

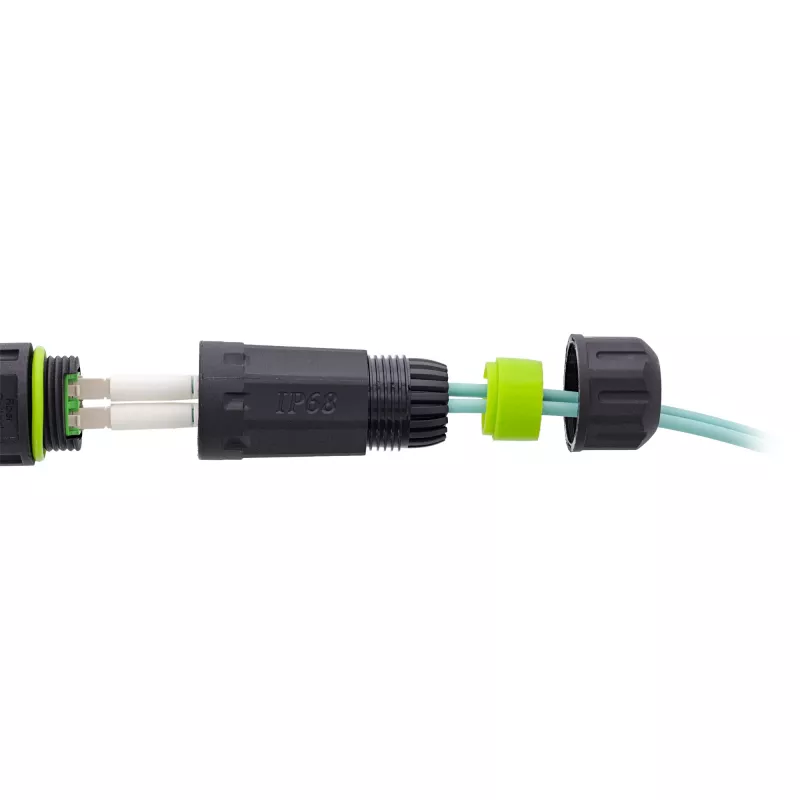

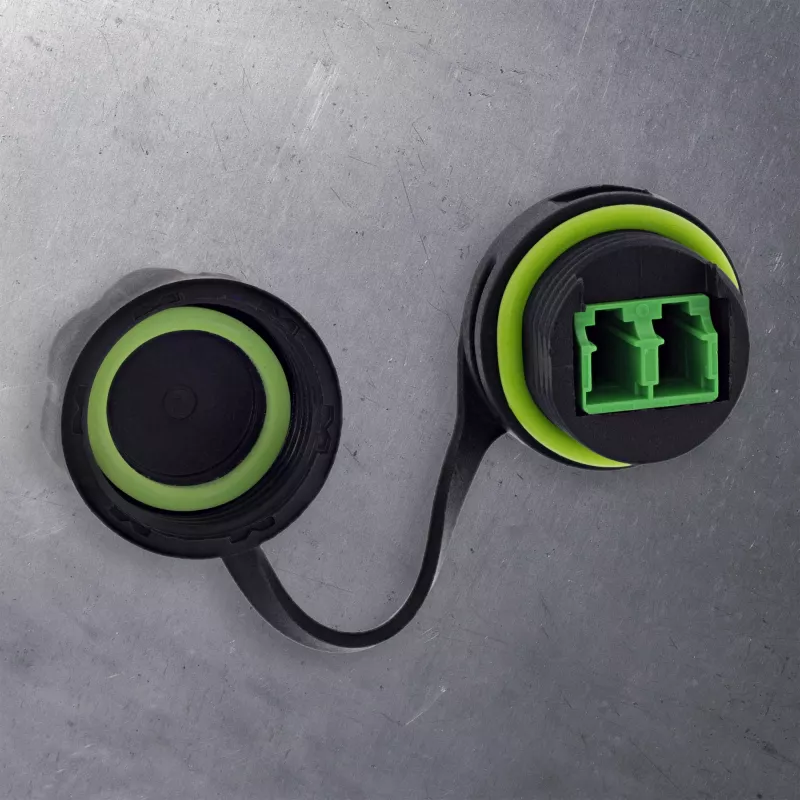

• Pre-assembled LC duplex sockets with tool-free screw connection
• Supports single-mode connections (UPC/APC) with 2x LC duplex
• Standard M20 thread for easy integration

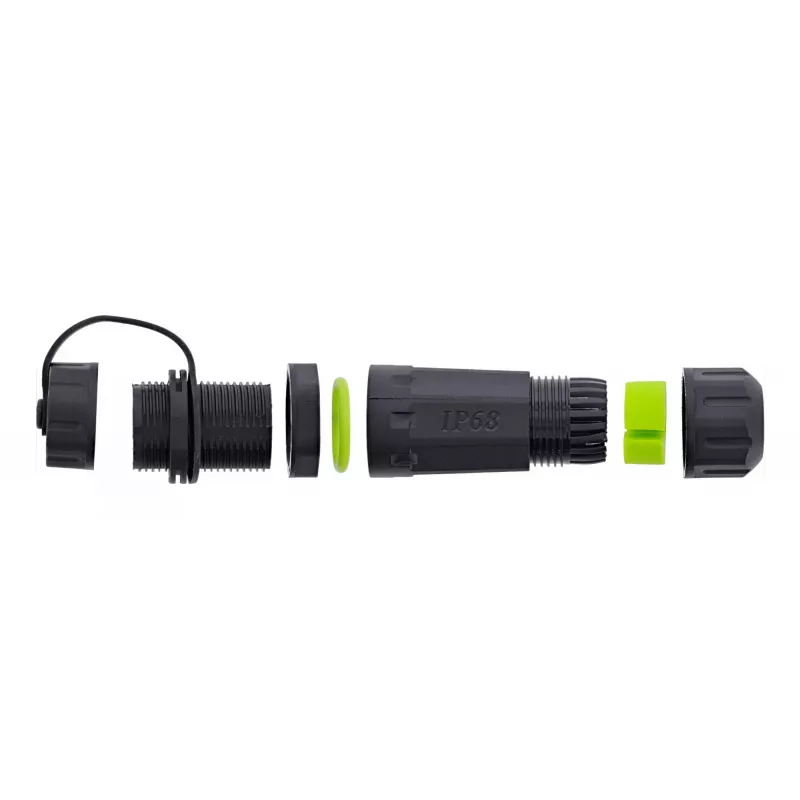

• Robust PA66 plastic housing and silicone seal
• Green sealing ring and rubber seal for reliable sealing

Specifications

• Brand: InLine
• MPN: 69927C
• Module: LC duplex female/female
• Thread size: M20
• Application: Single-mode UPC/APC
• For cable diameter: 2.9 mm
• Dimensions: 74 x 26 mm
• IP protection class: IP68
• Temperature resistance: -40 °C to +85 °C
• Material: Nylon (PA66)
• Seal: Silicone
• Colour: Black
• Side A: LC female
• Side B: LC female
