Case a parete SMS Smart Media Solutions 55L/P G2 BL

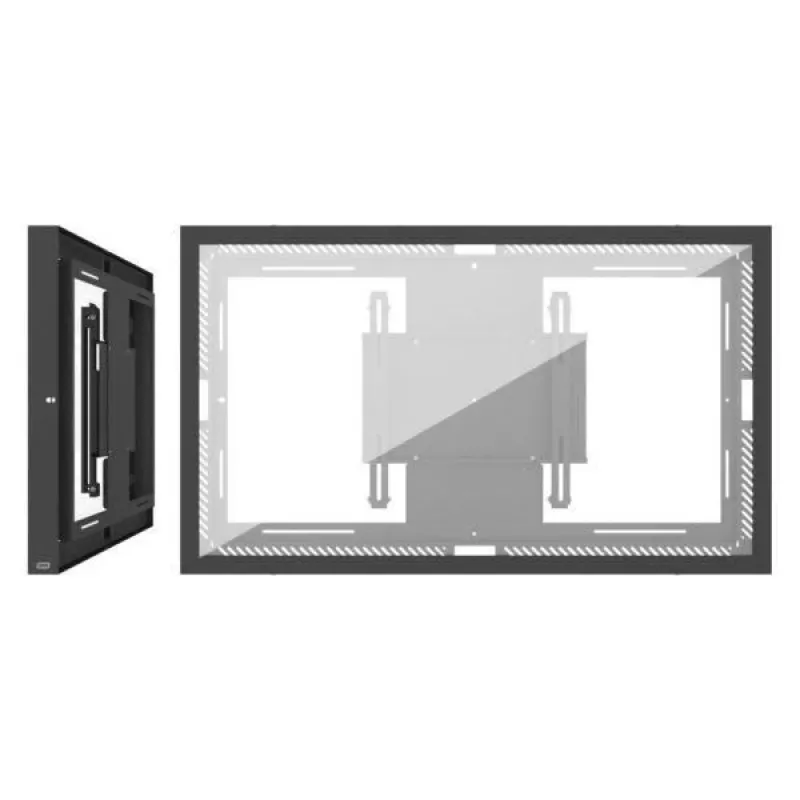

The SMS Smart Media Solutions 55L/P Casing Wall G2 BL is a wall-mounted enclosure designed for a single display up to 139.7 cm (55 inches). The casing includes an integrated display mount and a black finish that fits corporate and public interiors. It supports VESA mount patterns from 200 x 400 mm to 400 x 400 mm and is intended for secure, visible placement of digital signage or informational screens in lobbies, corridors and other public spaces.

Advantages

The casing provides a fully covered installation that protects the display while keeping a clean external appearance. It can be mounted in either landscape or portrait orientation and offers the option to include a polycarbonate front glass for added protection and easier cleaning. Hidden cable outlets and safety screws reduce access to cables and internal components, improving security.

Suitable for

• Digital signage in lobbies and reception areas
• Tenant directories and information boards in residential or corporate buildings
• Displays next to elevators and stairwells
• Public information screens in corridors and shared spaces

Key specifications

• Compatible display size: up to 139.7 cm (55")
• VESA support: from 200 x 400 mm to 400 x 400 mm
• Mounting type: Wall
• Product colour: Black
• Manufacturer: SMS, MPN 701-004-12, EAN 7331394930806

How to use

Mount the casing on a suitable wall using appropriate fixings for the wall material and local load requirements. Install the display onto the integrated VESA mount inside the casing, choosing landscape or portrait orientation at installation time. Route cables through the hidden outlets to keep them concealed, and secure the casing with the supplied safety screws. If a polycarbonate front is ordered, fit it to the casing before final locking and test the display operation and ventilation clearance.

Recommendations

For long-term, trouble-free operation, use a display that matches the supported VESA patterns and size limit, select the polycarbonate front in high-traffic areas, and ensure installation by qualified personnel following local regulations.
