Cavo DeLOCK DL4 solare 6 mm² maschio a femmina 5 m nero

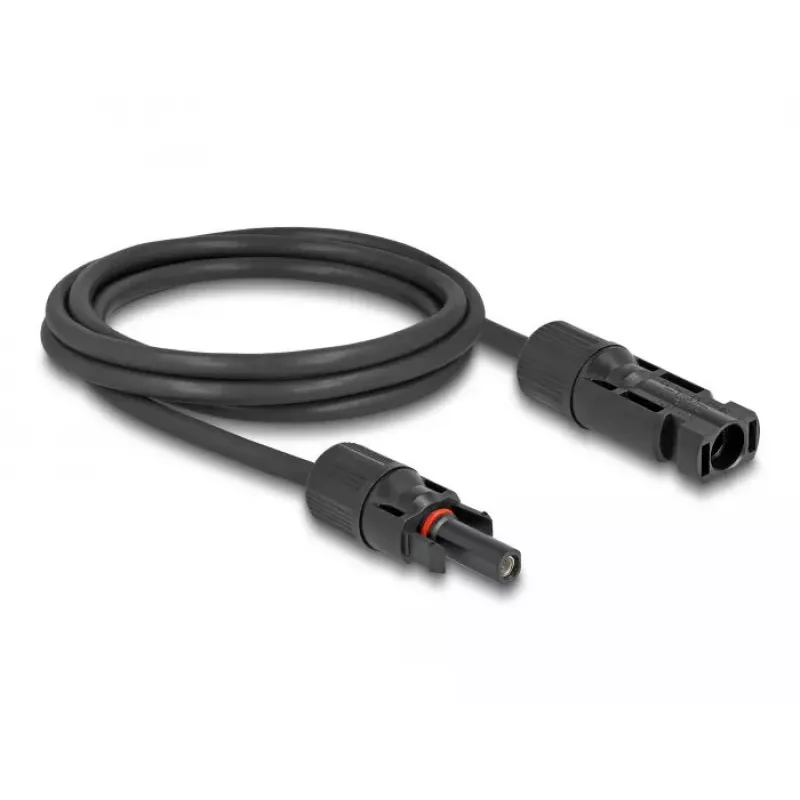

The DeLOCK DL4 Solar Cable 6 mm² male to female 5 m is a black photovoltaic connection cable designed to transmit power from solar panels to compatible equipment. It features a male and a female DL4 connector and is intended for freestanding installation in solar systems. The cable has a 6 mm² conductor cross-section and a total length of 5 metres.

Advantages

DL4 connectors provide a snap-in locking mechanism that secures the connection and reduces the risk of accidental disconnection. The cable is rated IP67 for dust and waterproof protection, allowing it to withstand environmental exposure. The 6 mm² conductor cross-section supports typical solar panel current levels while maintaining a compact cable diameter.

Suitable for

Key specifications

How to use

Route the cable between the solar panel and the target device or junction box, ensuring the connectors match the DL4 male and female counterparts. Snap the DL4 connectors together until the locking mechanism engages. If disconnection is required, use the appropriate release tool to unlock the snap-in connector and separate the plugs. Install and secure the cable to avoid strain on the connectors and prevent water ingress at cable entry points.

Recommendations

Verify compatibility of DL4 connectors with your solar components before installation. Observe local electrical codes and switch off the PV system when making connections. For long-term outdoor performance, inspect connections periodically for damage and ensure seals remain intact.
