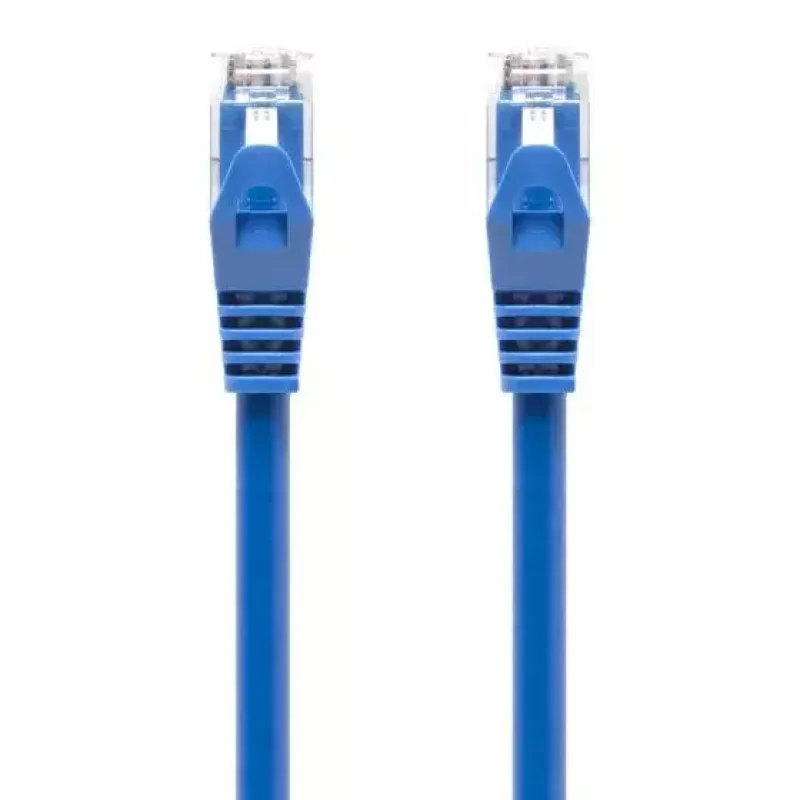

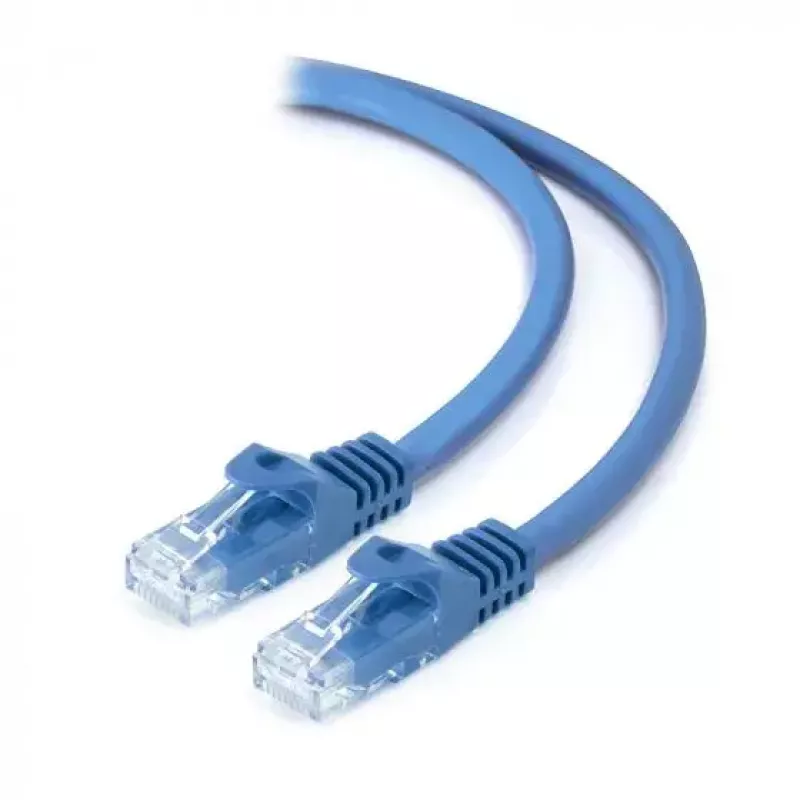

Cavo di rete ALOGIC blu CAT6 LSZH 0,5m

The ALOGIC Blue CAT6 LSZH 0.5m network cable is a 0.5 metre, 568B-wired Ethernet patch cable designed for high-speed and multi-gigabit protocols. Constructed from four pairs of 24 AWG insulated copper conductors separated by a central cross, the cable reduces impedance and return loss to support improved data, voice and video transmission. RJ‑45 connectors with gold plating and a custom snagless boot protect the connector during installation while maintaining reliable signal transfer. The LSZH jacket provides low smoke and halogen-free characteristics suitable for installations where reduced toxic emissions are required.

Advantages

The CAT6 construction and internal separator improve crosstalk performance and lower insertion loss, enabling higher data rates up to 1000 Mbit/s. Gold‑plated RJ‑45 contacts ensure consistent, low-resistance connections. The snagless boot prevents connector damage during routing and installation. The LSZH outer jacket minimises smoke and halogen release in case of fire.

Suitable for

• Home and office Ethernet connections
• Connecting network switches, routers and patch panels
• Short-range data links for VoIP, video streaming and file transfer
• Installations requiring low smoke and halogen-free cabling

Key specifications

• Length: 0.5 m
• Wiring: 568B
• Cable category: CAT6
• Conductor: 4 pairs, 24 AWG insulated copper
• Connectors: RJ-45 with gold plating
• Jacket: LSZH (low smoke, zero halogen)
• Maximum data rate: up to 1000 Mbit/s
• Brand: ALOGIC, MPN: C6-0.5B-BLUE

How to use

Connect one RJ‑45 plug to your network device (PC, switch or router) and the other to the corresponding port on the network endpoint or patch panel. Ensure connectors are fully inserted until the latch clicks. Route the cable without sharp bends and avoid tight bundling with power cables to minimise interference. For permanent installations, label each end to match corresponding ports.

Recommendations

For best performance, use the cable for short connections within racks or between nearby devices where CAT6 performance and LSZH safety characteristics are required. Avoid exceeding manufacturer bend radius and keep the cable away from high‑power electrical sources to reduce electromagnetic interference.
