Cavo di rete ALOGIC blu CAT6 LSZH 15 m

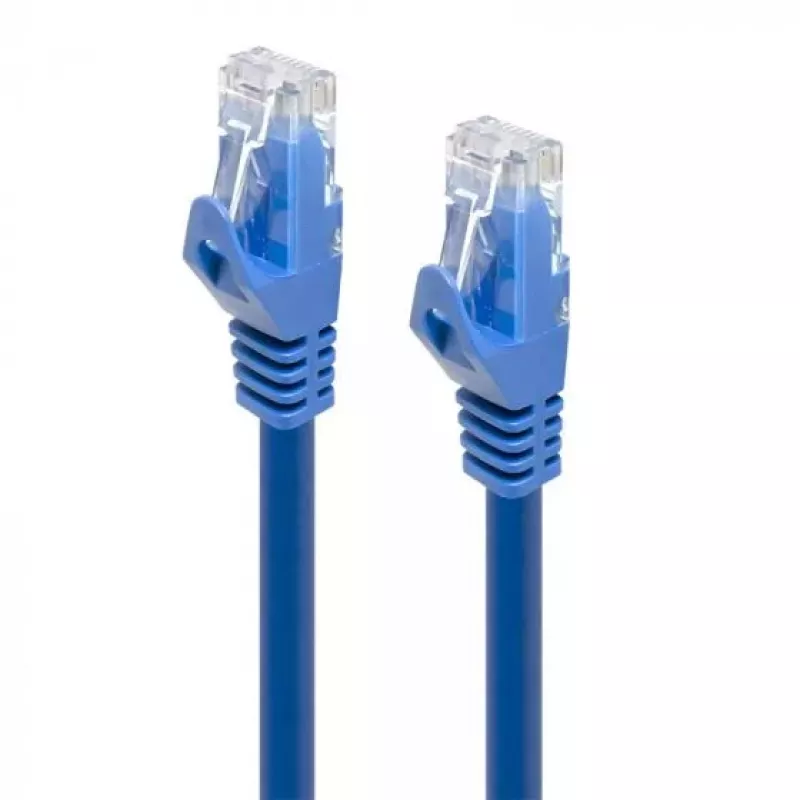

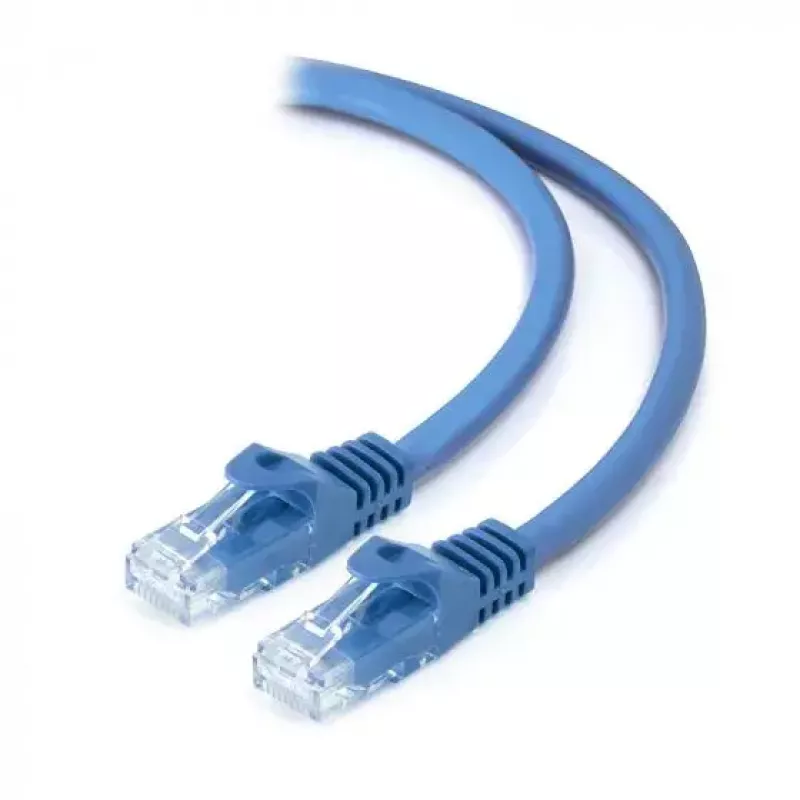

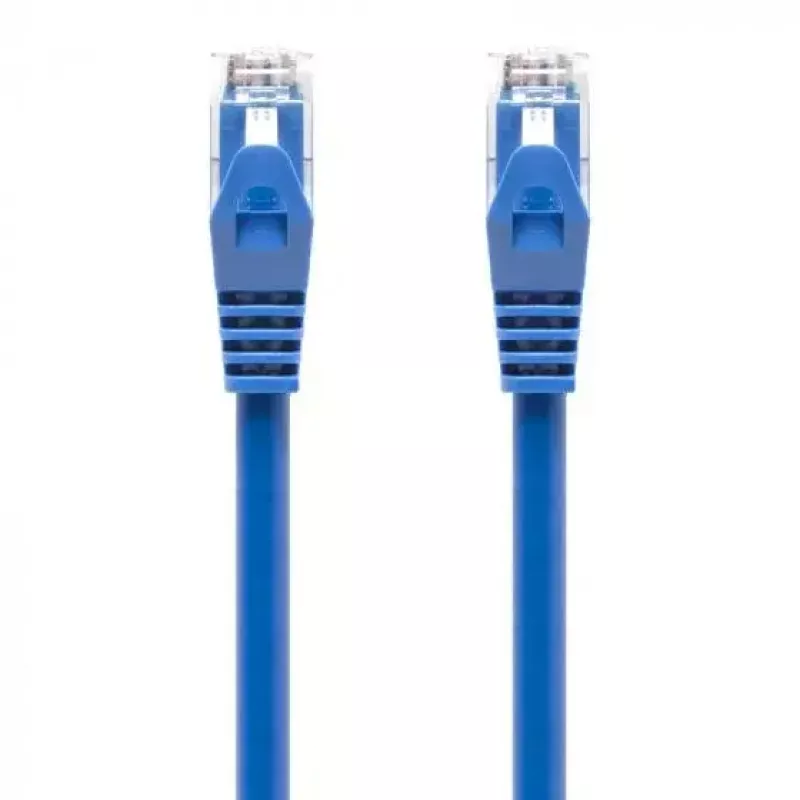

ALOGIC Blue CAT6 LSZH 15m is a 15-metre Ethernet patch cable wired to the 568B standard and designed for indoor high-speed network connections. Constructed from four pairs of 24 AWG insulated copper conductors separated by a central cross, the cable reduces impedance and return loss to support gigabit and multi-gigabit protocols. The LSZH jacket minimises smoke and toxic emissions in case of fire, and gold-plated RJ-45 connectors provide reliable contact for data transfer up to 1000 Mbit/s.

Advantages

The cable construction improves crosstalk performance and lowers insertion loss, which can help increase effective network speeds. A snagless boot protects the connector clip during installation, while gold-plated contacts ensure stable transmission and corrosion resistance. The LSZH outer sheath reduces hazardous smoke and toxicity compared with standard PVC, making the cable more suitable for indoor and enclosed environments.

Suitable for

• Wired Ethernet connections in homes and offices
• Gigabit network links between switches, routers and PCs
• Indoor installations where low smoke and toxicity are required
• Data, voice and video transmission over structured cabling

Key specifications

• Length: 15 m
• Wiring: 568B
• Conductor: 4 pairs, 24 AWG insulated copper
• Connector: RJ-45 with gold-plated contacts
• Cable type: CAT6, LSZH jacket
• Data rate: up to 1000 Mbit/s (Gigabit Ethernet)
• Manufacturer: ALOGIC, MPN: C6-15B-BLUE

How to use

Plug each RJ-45 connector into the corresponding Ethernet ports on your network devices (switch, router, modem or PC). Ensure connectors click into place and route the cable to avoid sharp bends or kinks. For best performance, maintain proper cable separation from power lines and avoid excessive bending near the connector boots. The cable is pre-terminated and ready for immediate use in 568B wired networks.

Recommendations

For optimal performance, use this CAT6 LSZH cable within standard Ethernet distance limits (up to 100 m for Gigabit Ethernet) and avoid running parallel to high-voltage power cables. Choose cable routing that minimises tight bends and mechanical stress on connectors during installation.
