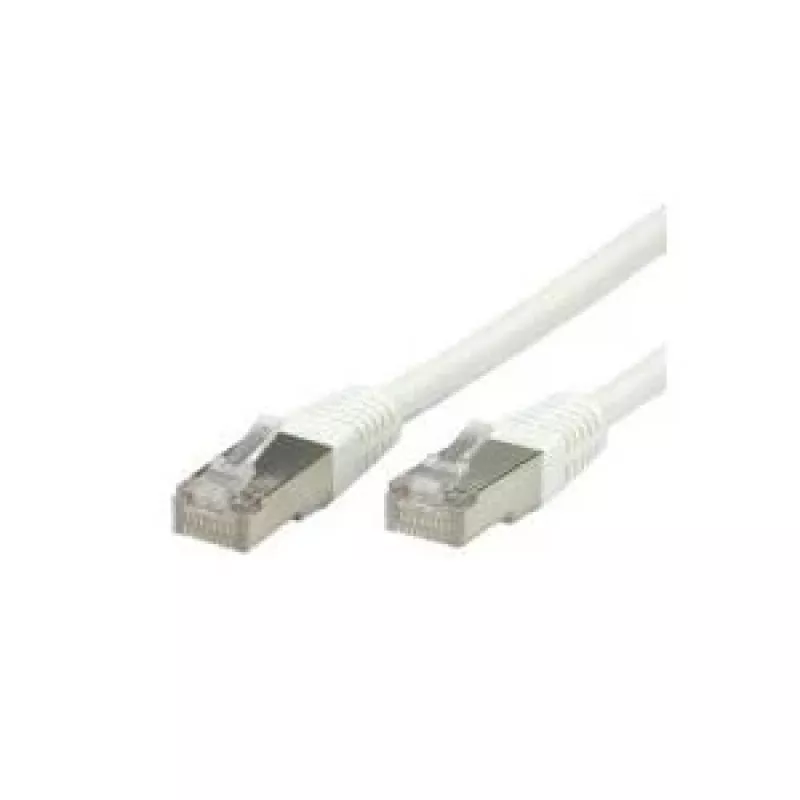

Cavo di rete ROLINE S/FTP (PiMF) patch RJ-45 Cat.6 15 m bianco

ROLINE S/FTP (PiMF) Patch Cord RJ-45 Cat.6 15 m White is a prepared patch cable for networking connections between devices. The cable uses a 4‑pair stranded copper conductor with pairs individually screened by aluminium‑clad polyester foil and a complete braid shielding (S/FTP), meeting Cat.6 requirements. Both ends are fitted with screened RJ‑45 plugs with gold‑plated contacts and a 1:1 contact assignment in accordance with the EIA/TIA‑568 standard. The moulded kink protection and flexible jacket allow for installation in confined spaces and narrow bends.

Advantages

The double shielding (foil around pairs plus overall braid) provides effective protection against electromagnetic interference and crosstalk. Gold‑plated RJ‑45 contacts improve contact reliability and corrosion resistance. The prepared, moulded connectors with kink protection increase durability during repeated handling and routing. The 15 m length offers extended reach for patching between racks, floors or workstations without additional couplers.

Suitable for

• Horizontal and vertical patching in local area networks (Cat.6 applications)
• Connecting switches, routers, patch panels and networked devices
• Office, server room and home network installations requiring screened cabling

Key specifications

• Cable type: S/FTP (PiMF) — pairs foil screened plus overall braid
• Category: Cat.6
• Conductor: 4‑pair stranded copper
• Connectors: RJ‑45 to RJ‑45, screened, gold‑plated contacts
• Contact wiring: 1:1 (EIA/TIA‑568)
• Length: 15 m
• Colour: White

How to use

Connect one RJ‑45 plug to the network port of a switch, router, patch panel or device and the other plug to the corresponding port. Ensure connectors are fully inserted until the locking tab engages. Route the cable without sharp folds; the moulded kink protection helps prevent damage at the connector ends. For best performance, avoid running the cable parallel to power lines or strong electromagnetic sources.

Recommendations

Use this Cat.6 S/FTP patch cord where screened cabling is required to reduce interference, and keep runs within the 15 m length for optimal signal integrity. Inspect connectors periodically and replace the cable if insulation or connectors are damaged.
