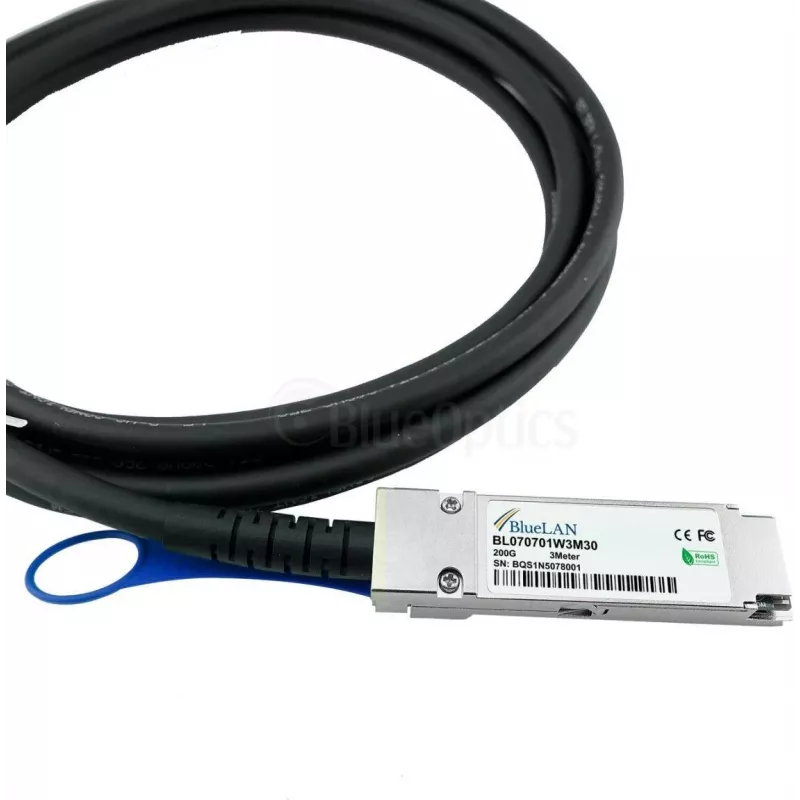

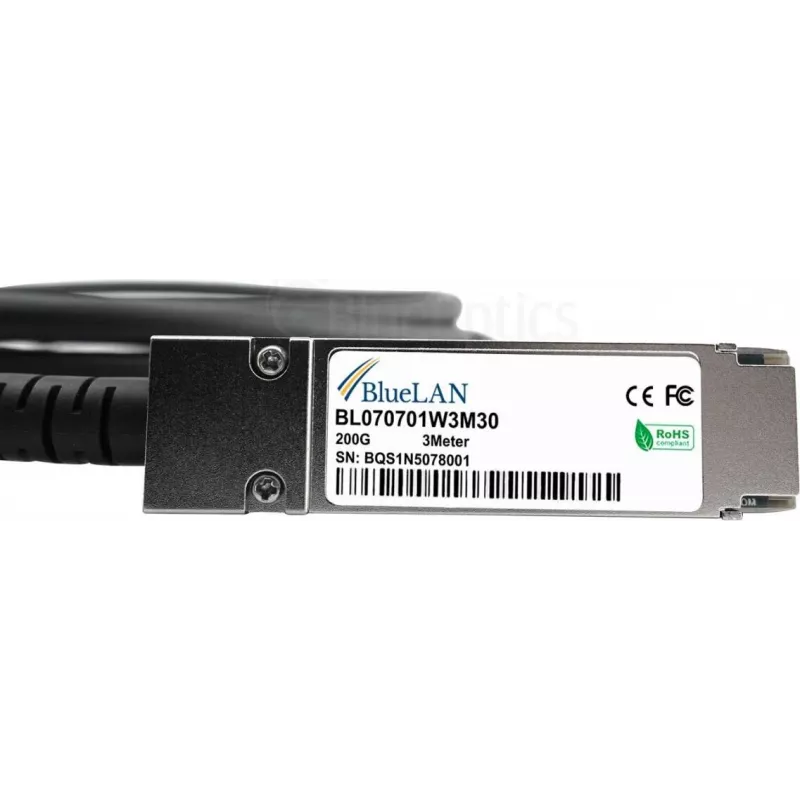

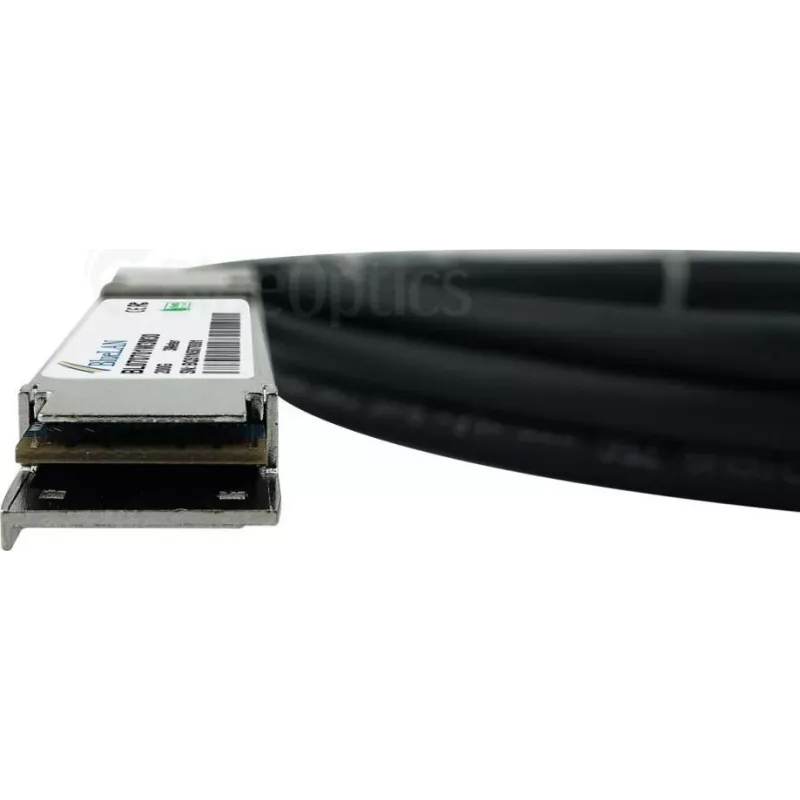

Cavo Direct Attach BlueLAN 980-9I54G-00V003-BL compatibile BlueOptics QSFP56, 3 m, 200Gbps, rame twinax passivo

High-density data centers need reliable, low-latency connections between switches, servers, and storage. This BlueLAN-compatible QSFP56 direct attach cable delivers 200 Gbps over 3 meters of passive copper twinax, eliminating the cost and complexity of separate transceivers and fiber. It is engineered for short-reach interconnects where signal integrity and power efficiency are critical.

Who is it for

Network architects and data center operators deploying BlueLAN BL070701W3M30 systems or other QSFP56-compatible equipment. Ideal for top-of-rack to end-of-row links, high-performance computing clusters, and enterprise core aggregation.

Main features

• QSFP56 to QSFP56 connectors, compliant with SFF-8665 MSA
• 200 Gbps data rate (200GBASE-CR4)
• 3-meter passive copper twinax cable, 100 Ohm impedance
• Low power consumption, hot-swappable
• 3.3V supply voltage, RoHS compliant

Specifications

• Connector type: QSFP56
• Data rate: 200 Gbps
• Cable length: 3 m
• Cable material: Copper twinax
• Cable type: Passive
• Ethernet standard: 200GBASE-CR4
• Impedance: 100 Ohm
• Voltage supply: 3.3V
• Hot-swappable: Yes
• Compliance: SFF-8665

Tips

Passive DACs are best for distances up to 5 meters; for longer runs, consider active optical cables. Ensure both ends are firmly seated and the locking mechanism is engaged to avoid intermittent links.
