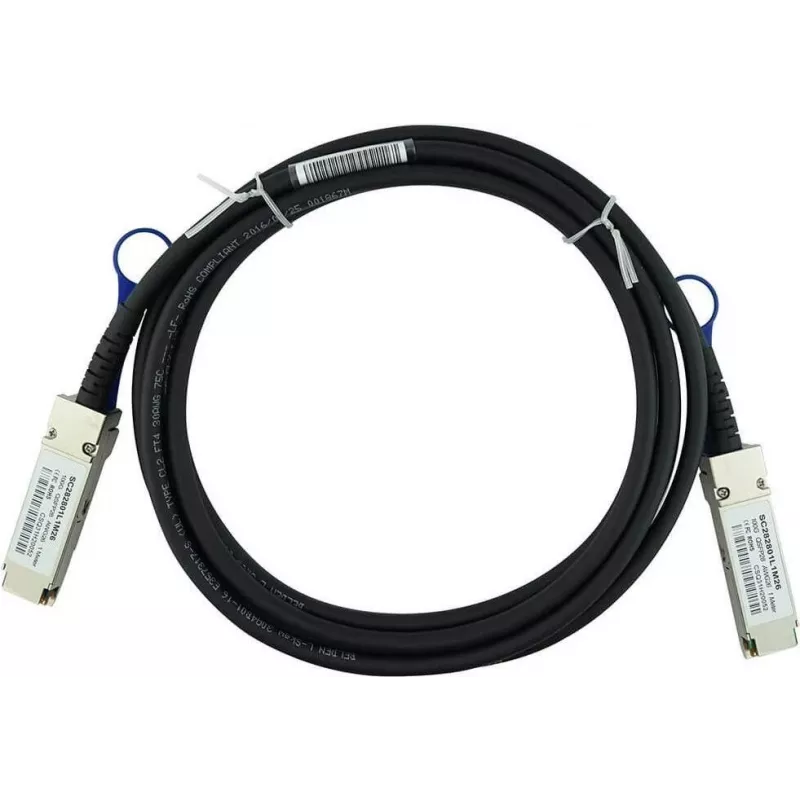

Cavo Direct Attach BlueOptics compatibile Lenovo 00MP528, 100GBASE-CR4, InfiniBand EDR, 30AWG, 1 metro (00MP528-BL)

This BlueOptics BlueLAN DAC QSFP28 cable is a high-performance, cost-effective direct attach copper (DAC) solution designed for 100 Gigabit Ethernet and InfiniBand EDR networks. It is fully compatible with Lenovo 00MP528 and provides reliable, low-latency connectivity for data center and high-performance computing environments.

Advantages

Passive copper design ensures ultra-low power consumption (<0.5W) and zero signal degradation over short distances. Hot-swappable QSFP28 connectors allow for easy installation and maintenance without network downtime. The 30 AWG wire gauge and PVC jacket offer flexibility and durability for rack-to-rack or server-to-switch connections.

Suitable for

• Data center interconnect
• High-performance computing (HPC) clusters
• Enterprise networking
• 100GBASE-CR4 and InfiniBand EDR applications

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Data Rate: 100 Gbps
• Connector Type: QSFP28 to QSFP28
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Power Consumption: <0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use with compatible Lenovo or standard QSFP28 ports. Ensure proper cable management to maintain airflow and cooling in high-density environments.
