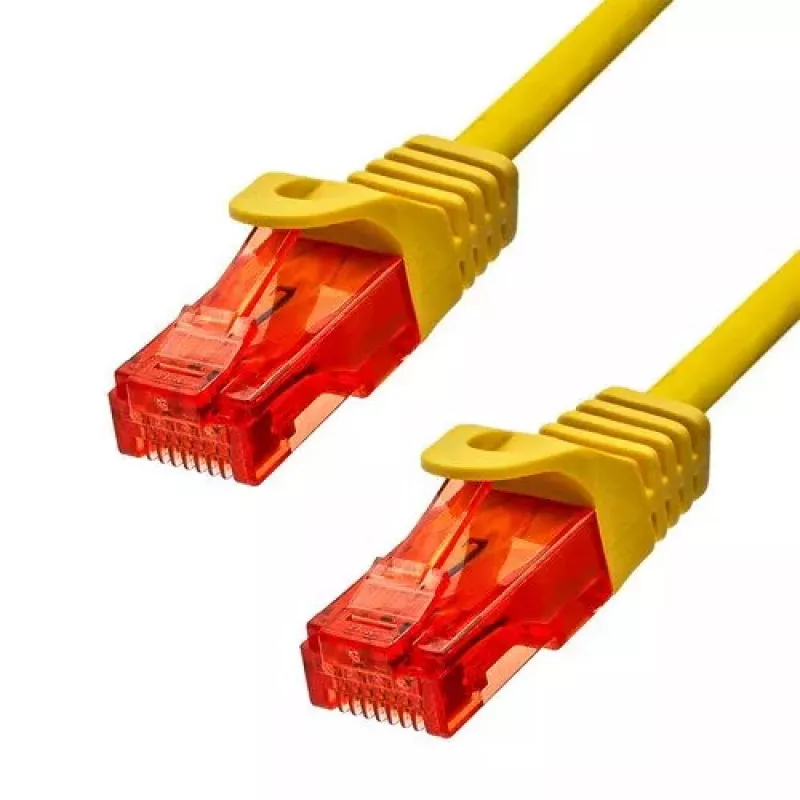

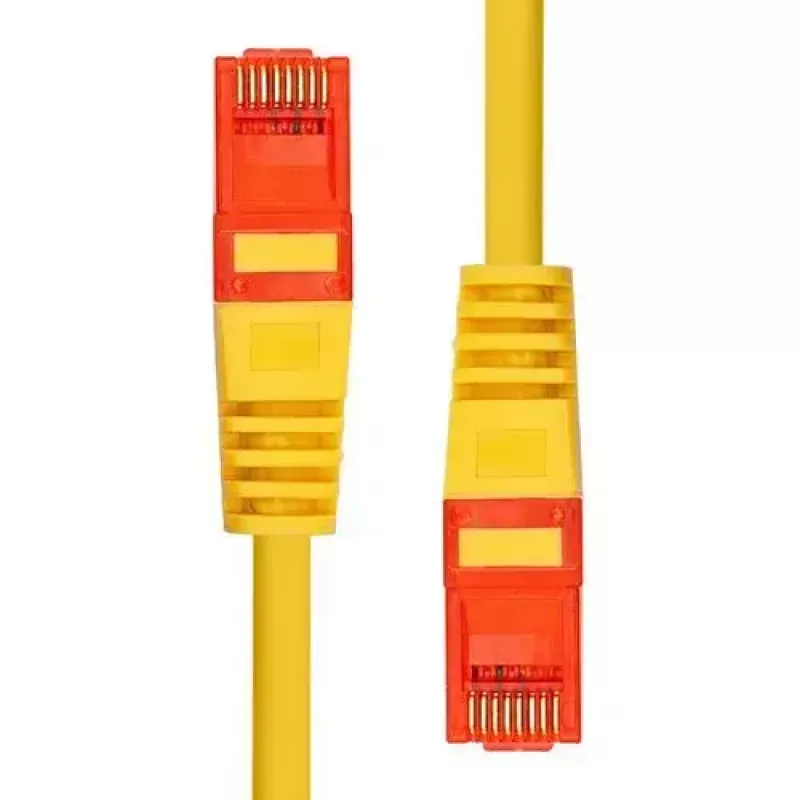

Cavo Ethernet ProXtend CAT6 RJ-45 U/UTP 20M giallo

The ProXtend CAT6 U/UTP CU Ethernet Cable (20 m, yellow) features 24 AWG conductors made of 99.9% pure copper and RJ-45 connectors with 50µ"U gold plating. The cable jacket is LSZH (Low Smoke Zero Halogen) to reduce smoke and toxic gases in case of fire, and the cable supports PoE+ and 10/100/1000Base-T(X) network speeds up to 1000 Mbit/s.

Advantages

The cable construction with 24 AWG 99.9% copper strands provides reliable signal transmission and consistent performance. LSZH outer sheath limits smoke and corrosive gases in hazardous conditions. A reinforced strain relief and snagless latch protection increase connector durability and simplify secure installations. 50µ"U gold-plated RJ-45 contacts improve corrosion resistance and transmission quality compared with standard metal contacts.

Suitable for

• Wired Gigabit Ethernet connections (10/100/1000Base-T)
• PoE+ powered devices such as IP cameras, access points and VoIP phones
• Structured cabling in offices, server rooms and home networks
• Environments where low-smoke, zero-halogen cable jackets are required

Key specifications

• Cable length: 20 m
• Cabling technology: 10/100/1000Base-T(X)
• Conductor: 24 AWG, 99.9% pure copper (CU)
• Shielding: U/UTP (unshielded pairs, overall unshielded)
• Connectors: RJ-45 to RJ-45 with 50µ"U gold plating
• Jacket: LSZH (Low Smoke Zero Halogen)
• Transmission rate: up to 1000 Mbit/s
• Color: Yellow

How to use

Uncoil the 20 m ProXtend CAT6 cable and route it between devices or through cable management paths. Insert the RJ-45 connectors into the corresponding Ethernet ports until the latch clicks. Ensure strain relief is seated near the connector to reduce bending stress. For long runs, avoid tight bends and maintain separation from high-voltage cables to minimize interference.

Recommendations

Use this CAT6 U/UTP cable for Gigabit network links and PoE+ devices; for installations requiring additional electromagnetic shielding choose a shielded cable variant. Store the cable coiled without sharp folds and replace if connectors or jacket are visibly damaged.
