Cavo in fibra ottica DeLOCK 85086 5 m LC giallo

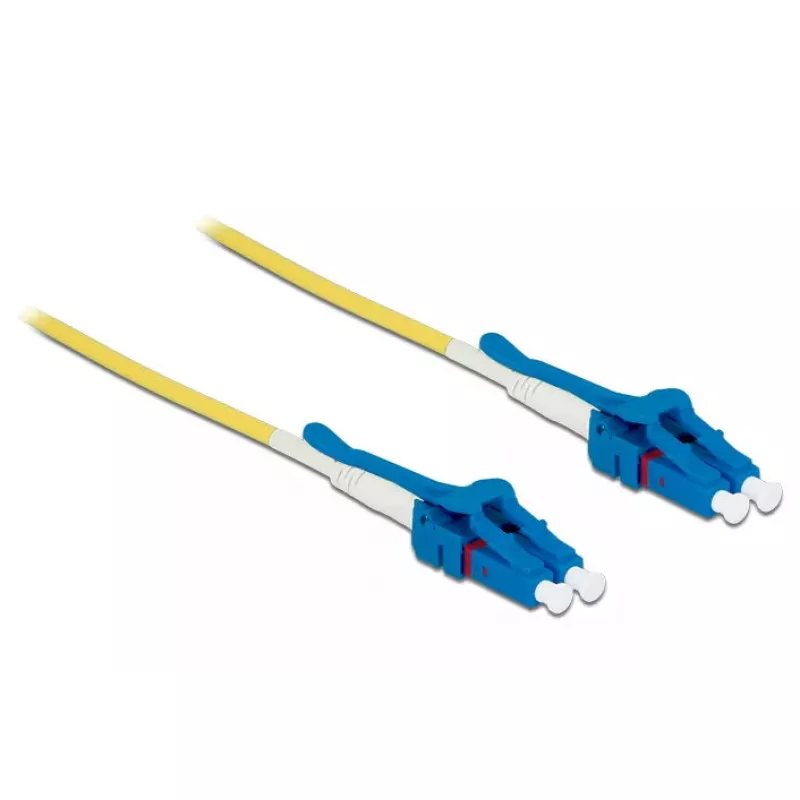

The DeLOCK 85086 is a 5 m OS2 fibre optic cable with LC connectors on both ends. It features a 9 µm core diameter and a yellow outer jacket. The cable combines two conductors under one sheath and boot for a compact, space-saving design suitable for network and data centre connections.

Advantages

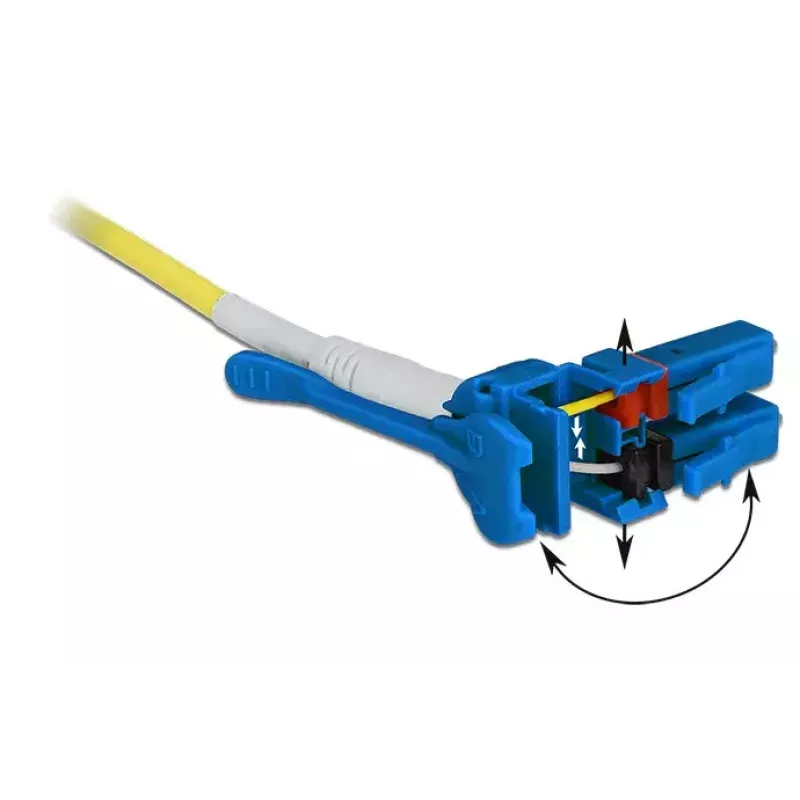

The cable provides low signal attenuation thanks to its OS2 single-mode construction and 9 µm core. LC connectors on both ends allow easy mating with standard LC ports, and the single-sheath design reduces required rack and panel space. An extractor lever is integrated to simplify removal from high-density panels.

Suitable for

• Connecting NICs with SFP modules to switches
• Linking media converters to network equipment
• Interconnecting devices in data centres and server rooms
• High-density patch panels and rack installations

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 85086
• Length: 5 m
• Fibre type: OS2 (single-mode)
• Core diameter: 9 µm
• Connector type: LC to LC
• Colour: Yellow
• EAN: 4043619850860

How to use

Ensure both ends are clean before insertion. Align each LC connector with the corresponding LC port and push until it clicks into place. To remove the cable from a high-density panel, use the integrated extractor lever and pull straight out without twisting. Store the cable without tight bends to avoid fibre stress.

Recommendations

Use appropriate dust caps when connectors are not in use, avoid sharp bends and excessive tensile force, and verify connector cleanliness with an inspection tool to maintain optimal transmission performance.
