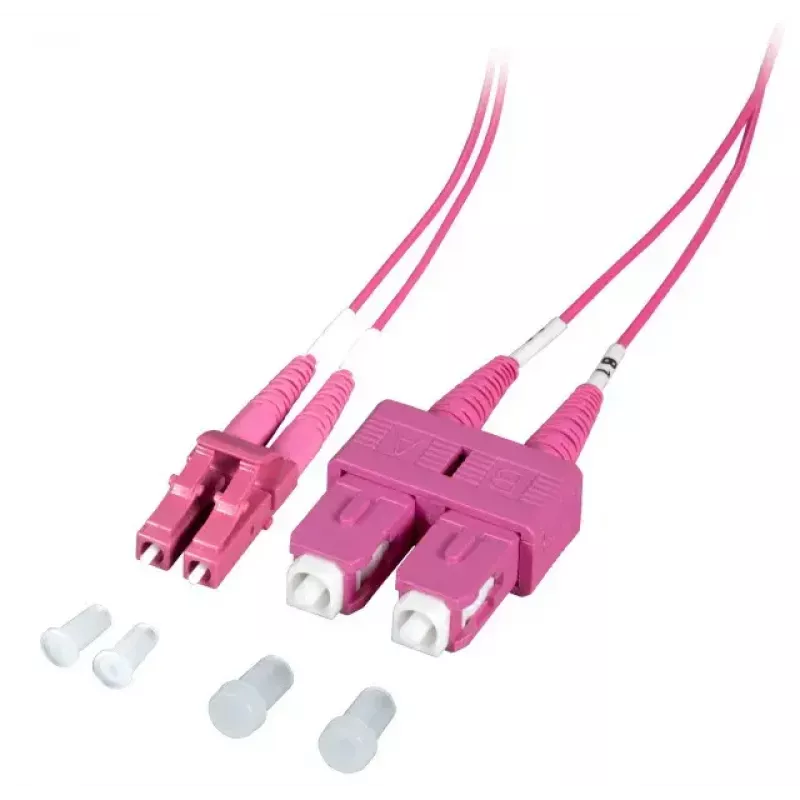

Cavo in fibra ottica EFB Elektronik O0323.2-1.2 2 m 2x SC 2x LC

The EFB Elektronik O0323.2-1.2 is a 2-meter OM4 multimode fibre optic cable with 2x SC and 2x LC connectors, designed for high-speed network links and short to medium reach data transmission. With a 50 µm core diameter and OM4 graded-index multimode specification, the cable supports high bandwidth and reduced modal dispersion. The cable assembly provides full duplex connectivity and is suitable for use in data centres, server rooms and enterprise networks where reliable optical links are required.

Advantages

This OM4 fibre cable offers improved bandwidth over OM1/OM2 multimode types, enabling higher data rates at typical data-centre distances. The combination of SC and LC connector types allows flexible interfacing between equipment using different port standards. A 2 m length balances manageability and reach for patching between switches, transceivers and patch panels while maintaining low insertion loss for efficient signal delivery.

Suitable for

• Patch connections in data centres and server rooms
• Interconnects between switches, transceivers and patch panels
• Short to medium reach multimode network links (10/40/100 Gbps where OM4 is supported)
• Laboratory and testing setups requiring SC-to-LC or LC-to-SC terminations

Key specifications

• Fiber type: OM4 multimode
• Core diameter: 50 µm
• Cable length: 2 m
• Connector types: 2x SC, 2x LC
• Mode: Full duplex
• Typical applications: Data centre patching, server interconnects, short-reach multimode links

How to use

Inspect connectors and fibre ends for contamination before installation; clean with an appropriate fibre cleaning tool if necessary. Route the 2 m cable between the two ports to be connected, avoiding tight bends and pinch points—maintain the manufacturer’s minimum bend radius. Firmly insert SC and LC connectors into the corresponding ports until they click or secure; verify duplex orientation so Tx and Rx pairs align correctly. After installation, test link integrity and optical power levels using suitable fibre test equipment.

Recommendations

Store and handle the OM4 fibre cable in a dust-free environment when possible. Use dust caps on unused connectors, avoid exceeding bend radius, and perform periodic inspection and cleaning to maintain low insertion loss and reliable performance in network applications.
