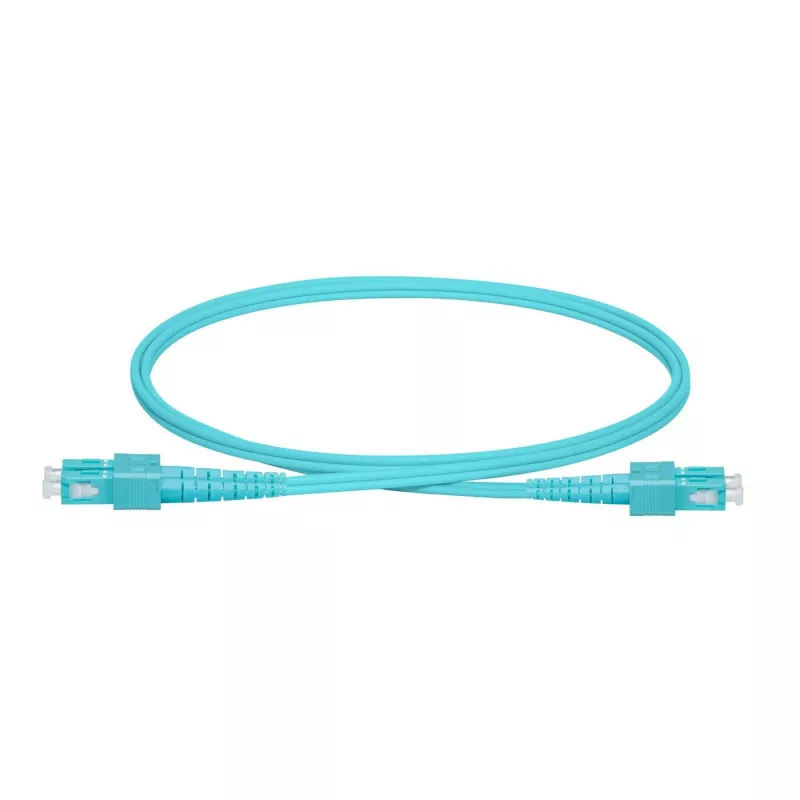

Cavo in fibra ottica InfiniBand Lanview LVO231475 5 m 2x SC color acqua

The Lanview LVO231475 is a 5 m fibre optic cable with 2x SC connectors and OM3 multimode 50/125 µm construction. Designed for full-duplex high-speed links, this aqua-coloured patch cord supports 10G SR, 10G LRM and SFP+ transceivers, making it suitable for 10G/40G/100G Ethernet environments where bend-insensitive multimode cabling is required.

Advantages

The OM3 50/125 µm multimode fiber offers low bend-induced attenuation compared with traditional fibres, which simplifies installation and reduces performance loss when cable routing requires tight bends or twists. The cable uses LSZH jacket material and meets common industry standards (IEC, EIA/TIA, Telcordia), providing compatibility with standard multimode transceivers and safer smoke/toxic emission levels in confined spaces.

Suitable for

• 10G Ethernet short-range links (10G SR)
• 10G LRM and SFP+ transceiver connections
• 40G and 100G multimode links in data centers
• Patch-panel to switch or switch-to-switch interconnects in campus and enterprise networks

Key specifications

• Brand: Lanview
• Model / MPN: LVO231475
• Length: 5 m

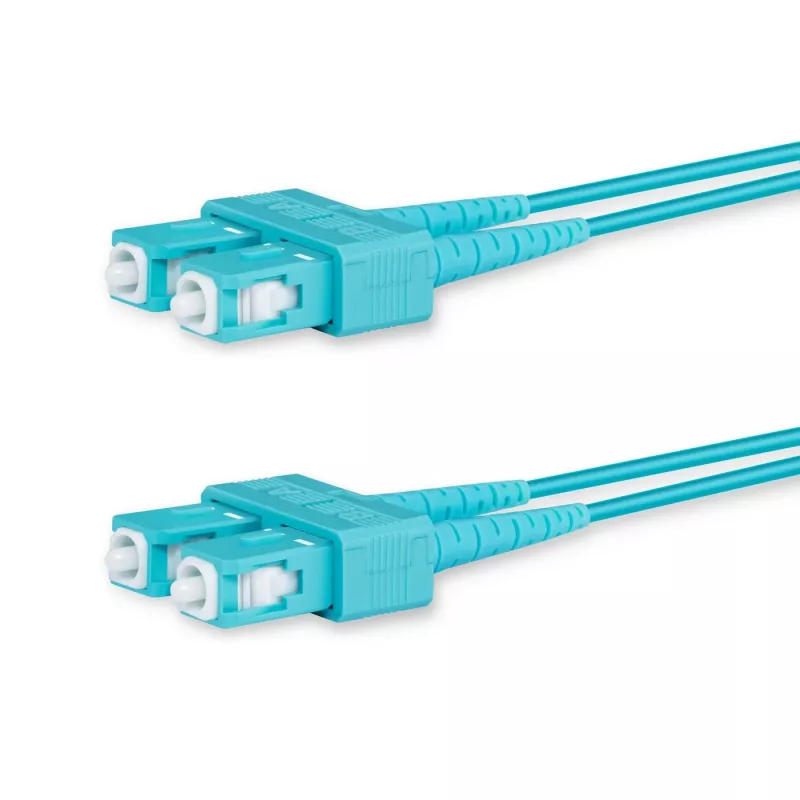

• Connector: 2x SC to 2x SC (full duplex)
• Fiber type: OM3 multimode, 50/125 µm, bend-insensitive
• Jacket: LSZH
• Colour: Aqua
• Weight: 0.04 kg
• EAN: 5704174320036

How to use

Install the Lanview LVO231475 by connecting each SC duplex connector to the corresponding SC ports on your transceivers, switches or patch panels, ensuring correct polarity for full-duplex operation. Route the cable following standard cable management practices, avoid sharp kinks and maintain bend radii recommended by equipment manufacturers to preserve optical performance. Verify link operation using appropriate diagnostics on your network devices or an optical tester.

Recommendations

For optimal performance in 10G and higher multimode links, use this OM3 50/125 µm cable for short-range connections (SR) and ensure compatibility with the transceiver specifications; avoid exceeding manufacturer minimum bend radius and use protected routing in high-traffic areas.
