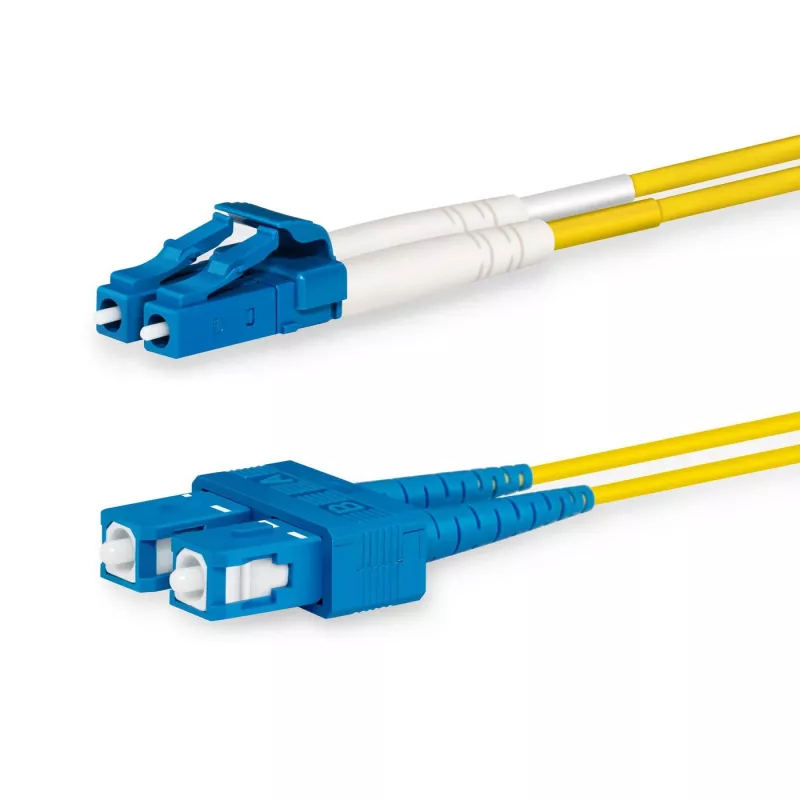

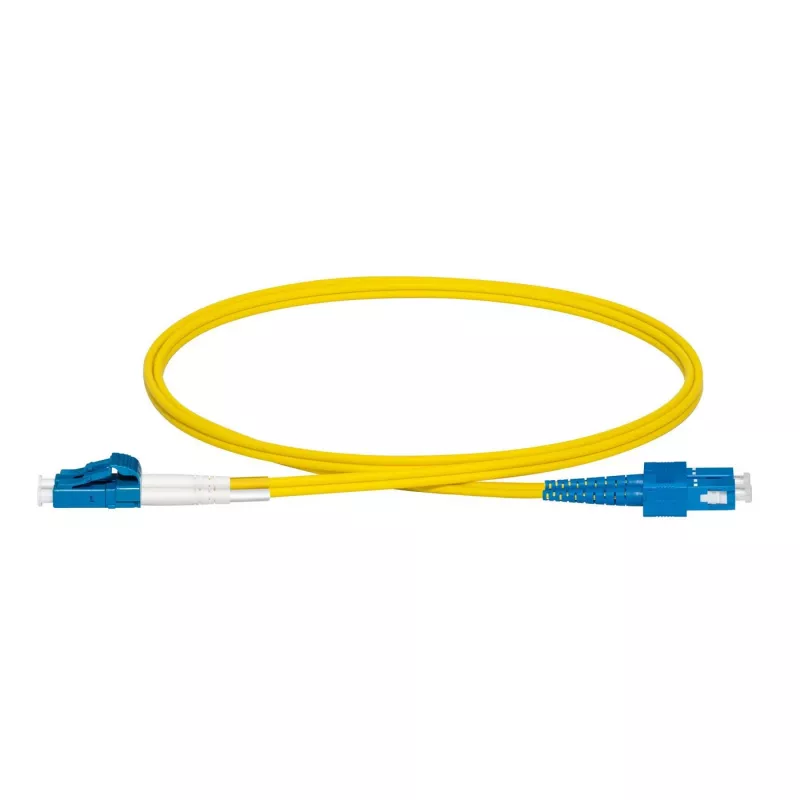

Cavo in fibra ottica InfiniBand Lanview LVO231494 5 m 2x LC 2x SC giallo

The Lanview LVO231494 is a 5 m single mode fibre optic cable with 2x LC and 2x SC connectors, designed for enterprise networks, telecom rooms, server farms and cloud storage networks. It uses OS2 fibre with a 9 µm core diameter and full duplex capability to support high-speed Ethernet links including 1G, 10G, 40G and 100G. The cable is yellow for easy identification and is manufactured with LSZH jacket materials conforming to common industry standards.

Advantages

This single mode patch cord supports long-distance data transport — up to 10 km at 1310 nm and up to 40 km at 1550 nm — and provides reliable full duplex transmission. The combination of LC and SC connectors offers compatibility with a wide range of equipment and the LSZH jacket reduces smoke and toxic gas emission in case of fire, meeting IEC/TIA/Telcordia requirements.

Suitable for

• Enterprise network backbone links
• Telecom rooms and data center patching
• Server farms and cloud storage interconnects
• 1G/10G/40G/100G Ethernet connections

Key specifications

• Model: Lanview LVO231494
• Length: 5 m
• Fibre type: OS2 (single mode), core diameter 9 µm
• Connectors: 2x LC to 2x SC
• Colour: Yellow
• Weight: 0.062 kg
• Max transmission distance: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm
• Jacket: LSZH, conforming to IEC / EIA TIA / Telcordia standards

How to use

Connect the LC ends to equipment ports that accept LC connectors and the SC ends to devices or patch panels with SC ports, ensuring correct polarity for full duplex links. Route the 5 m cable avoiding sharp bends and excessive tension; maintain minimum bend radius as recommended by the equipment or fibre manufacturer. Verify link status and optical power levels with suitable test equipment after installation.

Recommendations

Use this OS2 single mode patch cord for long-reach Ethernet links and data centre patching. Store and handle the cable to avoid tight bends; replace if the connectors or fibre show visible damage. Choose LSZH-sheathed cables for installations where low smoke and halogen-free behaviour is required.
