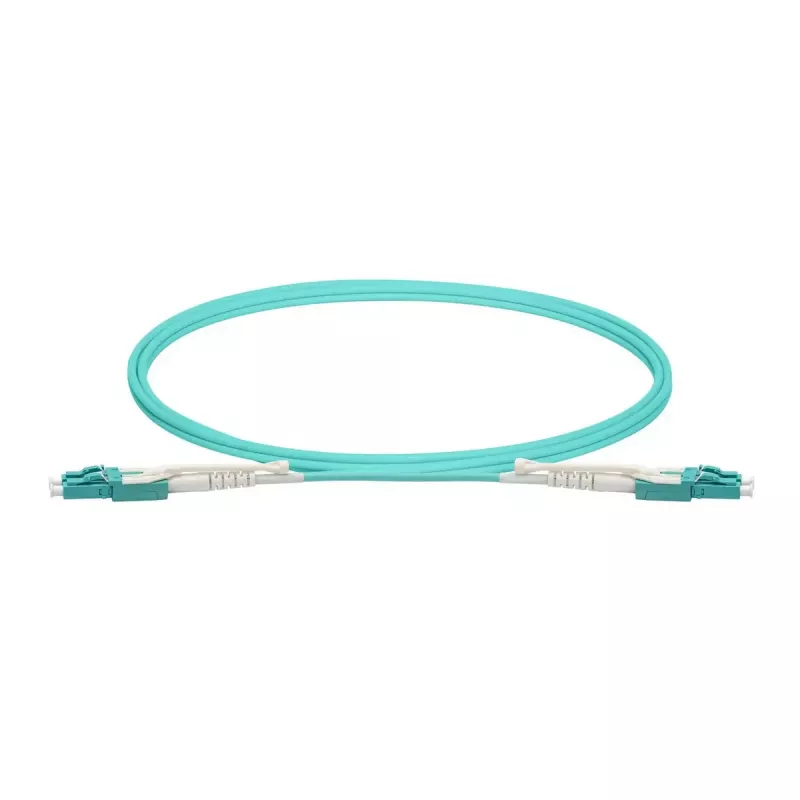

Cavo in fibra ottica/InfiniBand Lanview LVO231813UNI 5 m LC blu

The Lanview LVO231813UNI is a 5 m LC–LC fibre optic cable in blue, built to OM4 standard for high-speed and legacy networks. Both fibre leads are enclosed in a single uniboot jacket to reduce rack congestion and maintain low insertion loss. The cable uses LSZH material and meets common industry standards for deployment in data centres and network racks.

Advantages

The uniboot design houses both fibers in one slim jacket, increasing airflow in racks and simplifying cable routing while keeping insertion loss low. The top-cover removable connector allows polarity switching without replacing the cable. OM4 compliance supports 10G/40G/100G applications and modern transceivers such as 10G SR, 40G BIDI SR, QSFP+ and SFP+.

Suitable for

• Data centre and server rack fibre connections
• High-speed links up to 40G and interoperable with 100G equipment
• Connections using LC connectors and OM4 multimode fibre
• Environments requiring low-smoke zero-halogen (LSZH) cable jackets

Key specifications

• Model: Lanview LVO231813UNI
• Length: 5 m

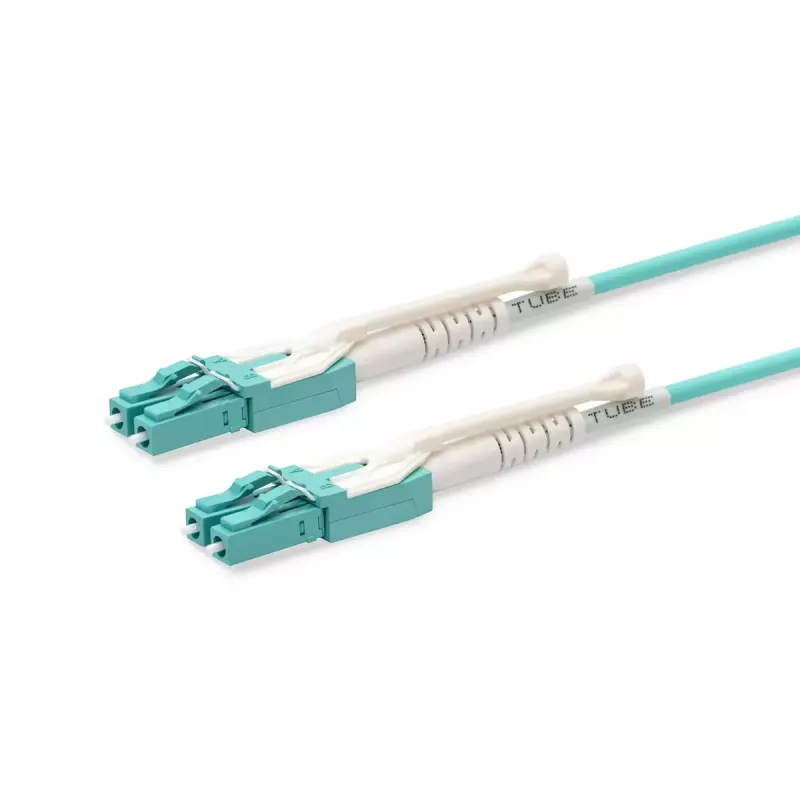

• Connectors: LC to LC (uniboot)
• Fibre type: OM4 multimode
• Colour: Blue
• Material: LSZH jacket
• Weight: 0.0017 kg

How to use

Connect the LC connectors to corresponding LC ports on transceivers, patch panels or switches. If polarity change is needed, remove the top cover on the uniboot connector and swap the fiber positions to reverse polarity without replacing the cable. Route the single-jacket cable through cable management to preserve rack airflow.

Recommendations

Use the Lanview LVO231813UNI for short-distance multimode links inside racks and between adjacent racks. Ensure connectors are clean before installation and avoid tight bends to maintain OM4 performance and low insertion loss.
