Cavo in fibra ottica LogiLink 7,5 m LC - LC

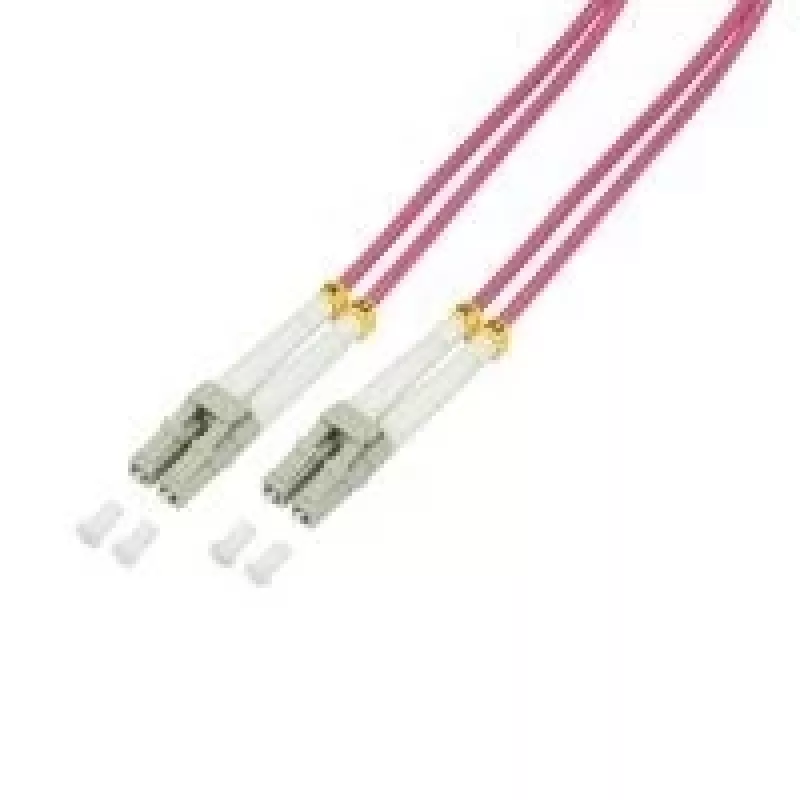

The LogiLink 7.5m LC - LC fibre optic cable is a duplex multimode jumper designed for high-speed local area network links. It uses OM4 (I-VH 2G) 50/125 µm multimode fibre with LC connectors on both ends and an LSZH outer jacket in violet, 3.0 mm diameter. The cable supports data rates up to 40 Gbit/s over distances up to 125 m and complies with DIN EN 50173-1 and IEC/ISO 11801 standards. Each cable is delivered with a measurement protocol documenting performance.

Advantages

The OM4 50/125 µm multimode fibre provides improved bandwidth and longer reach compared to lower-grade multimode fibres, while the LC-to-LC duplex configuration enables full-duplex transmission. The LSZH (low smoke zero halogen) jacket reduces hazardous emissions in case of fire and the 3.0 mm diameter offers a balance of flexibility and robustness. Supplied measurement protocol verifies compliance with stated performance parameters.

Suitable for

• High-speed Ethernet links up to 40 Gbit/s
• Data centres and server-to-switch connections
• Campus and enterprise backbone links within 125 m
• Equipment with LC fibre ports

Key specifications

• Length: 7.5 m
• Fibre type: Multimode OM4 (I-VH 2G), 50/125 µm
• Configuration: Duplex jumper, LC — LC connectors
• Jacket: LSZH, violet, Ø 3.0 mm
• Maximum supported data rate/distance: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Quality: Delivered with measurement protocol

How to use

Connect each LC connector to the corresponding LC port on your network devices, ensuring correct polarity for duplex transmission. Avoid tight bends and maintain the manufacturer’s minimum bend radius to preserve optical performance. Secure the cable to prevent strain on connectors and route it away from sources of mechanical stress and electromagnetic interference.

Recommendations

For optimal performance, use this OM4 LC—LC jumper in structured cabling installations or direct patching within racks and cabinets, and follow data centre cable management practices. Verify the supplied measurement protocol after installation and retest if the cable is re-routed or handled extensively.
