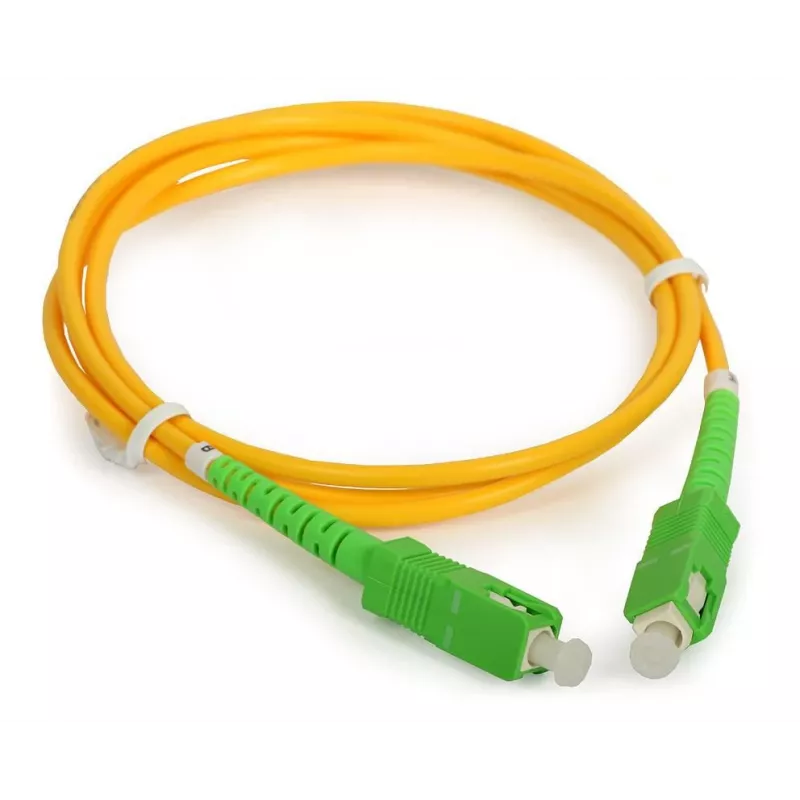

Cavo in fibra ottica Microconnect FIB884001 InfiniBand 1 m SC giallo OS2 9 µm

The Microconnect FIB884001 is a 1 m InfiniBand single mode fibre optic patch cable with SC connectors, OS2 fibre type and a 9 µm core diameter. It is designed for high-speed data transmission in enterprise networks, telecom rooms, server farms and cloud storage networks, and is suitable wherever fibre jumper cables are required. The cable supports 1G/10G/40G/100G Ethernet connections and offers long-range data transport — up to 10 km at 1310 nm and up to 40 km at 1550 nm. The jacket material is LSZH and the product is manufactured to industry standards (IEC, EIA/TIA, Telcordia).

Advantages

This SC–SC single mode patch cord with OS2 fibre provides low attenuation and stable performance over long distances, enabling reliable high-speed links for data centres and telecom infrastructure. The 1 m length and yellow jacket simplify identification and cable management. LSZH construction reduces smoke and toxic fumes in case of fire, meeting common installation safety requirements.

Suitable for

• InfiniBand and Ethernet interconnects in data centres
• Server farms and cloud storage networks
• Telecom rooms and patch panels
• Long-distance fibre links up to 40 km

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB884001
• EAN: 5704327408772
• Connector type: SC — SC (InfiniBand patch cord)
• Fibre type: OS2 single mode
• Core diameter: 9 µm
• Length: 1 m
• Wavelength reach: up to 10 km @ 1310 nm; up to 40 km @ 1550 nm
• Jacket: LSZH

How to use

Inspect connectors and ensure endfaces are clean before installation. Route the 1 m SC–SC cable between corresponding SC ports on switches, InfiniBand adapters or patch panels, avoiding sharp bends and excessive tension. Use appropriate cable management to maintain bend radius and secure connections in telecom racks or server cabinets. After connection, verify link status and run diagnostics or throughput tests as required.

Recommendations

For best performance, clean connector endfaces with appropriate fibre cleaning tools, avoid repeated mating cycles beyond manufacturer recommendations, and install the cable in environments that protect it from mechanical stress and moisture. Use LSZH cables in enclosed or public spaces where reduced smoke emission is required.
