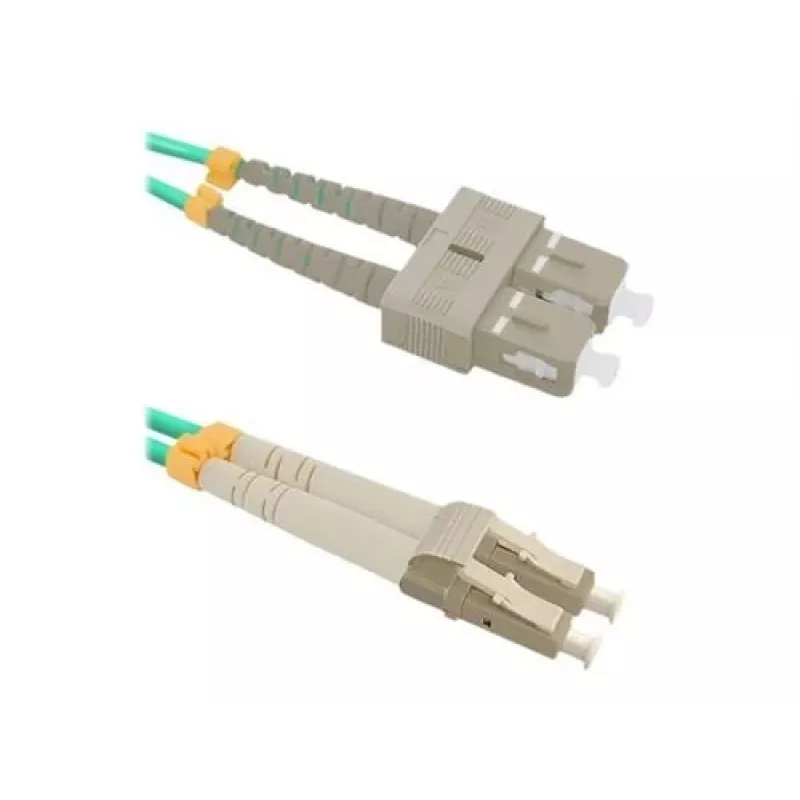

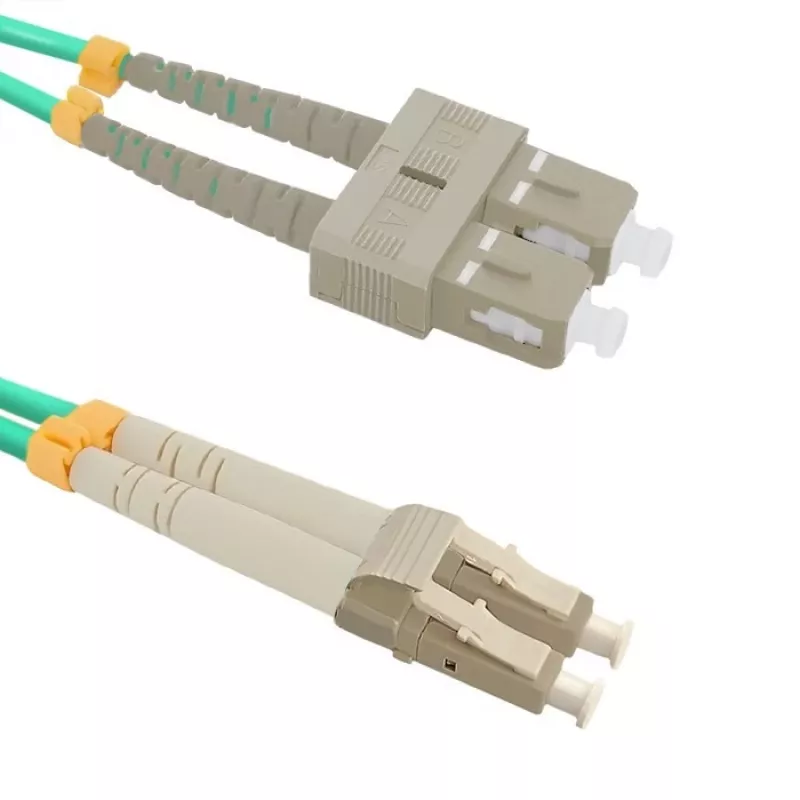

Cavo in fibra ottica Qoltec 54348 1 m LC SC verde

The Qoltec 54348 is a 1 m OM4 fibre optic cable with LC and SC connectors, designed for high-speed optical transmission. With a 50 µm core diameter and low attenuation, it delivers dependable signal quality for data centres and networking equipment. The cable features an LSZH outer sheath that resists fire and minimises the release of harmful gases; each unit is individually tested to ensure performance.

Advantages

Compact 1 m length with LC–SC connector combination provides flexible device-to-device connections. OM4 multimode fibre supports higher bandwidth and longer reach compared with lower-grade multimode types. LSZH outer sheath increases safety in enclosed or public spaces by reducing toxic smoke in case of fire. Individual unit testing ensures consistent quality and reliable operation.

Suitable for

• Data centre patching and server connections
• High-speed multimode fibre networks
• Network equipment interconnects (switches, routers, transceivers)
• Indoor installations where low-smoke, halogen-free sheathing is required

Key specifications

• Length: 1 m
• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Connectors: LC (one end) to SC (other end)
• Sheath: LSZH (Low Smoke Zero Halogen)
• Brand: QOLTEC, MPN: 54348

How to use

Inspect connectors for contamination before use and clean if necessary with appropriate fibre cleaning tools. Align the LC and SC connectors with the corresponding ports on networking equipment and insert gently until the connector latch engages. Route the cable to avoid sharp bends and mechanical stress; maintain the minimum bend radius recommended for multimode fibre. For removal, release the connector latch and withdraw the connector straight from the port.

Recommendations

Use in indoor, controlled environments such as data centres and telecom rooms; avoid prolonged exposure to direct sunlight or outdoor conditions. Follow standard fibre handling practices—clean connectors, avoid excessive bending, and store in protective sleeves when not connected.
