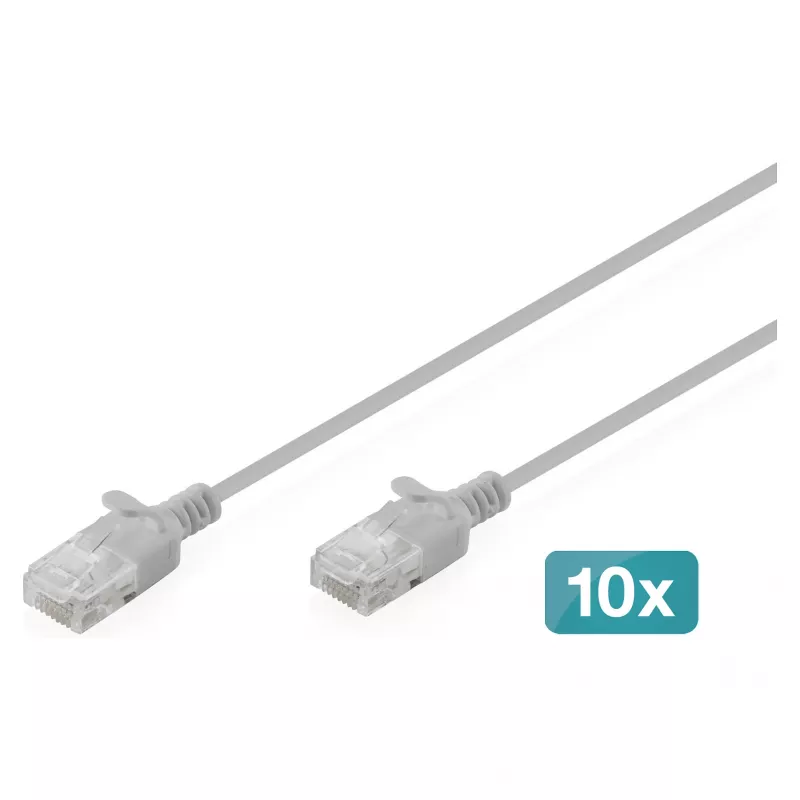

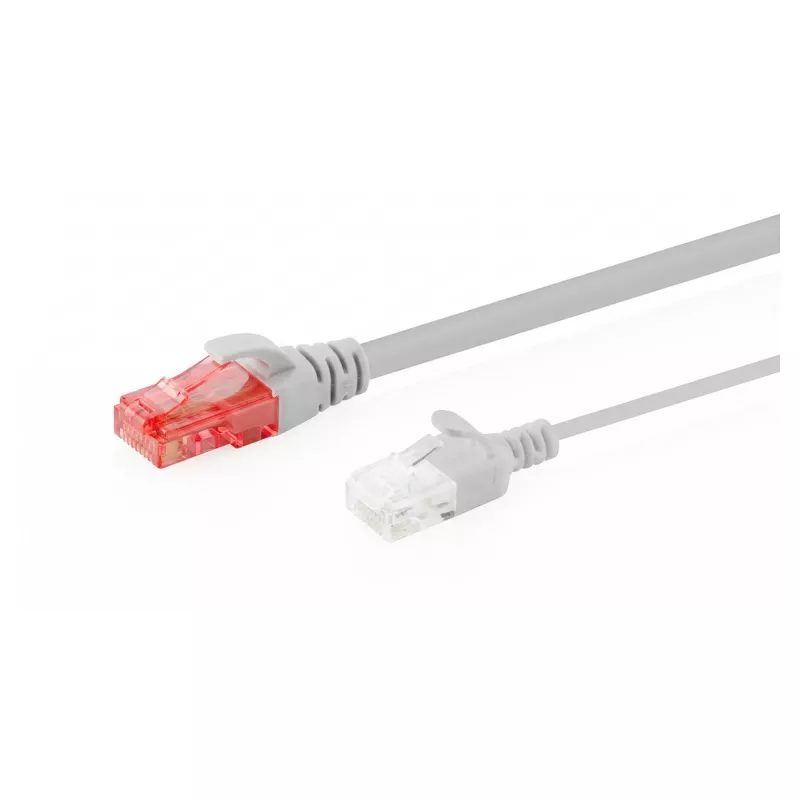

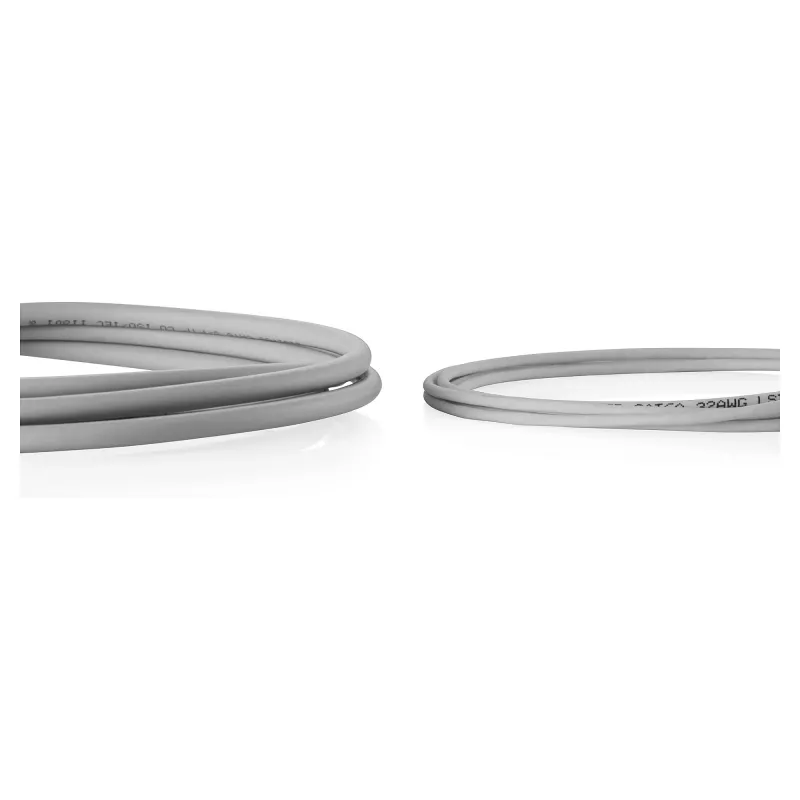

Cavo patch DIGITUS CAT 6 U-UTP sottile 1,5 m, grigio, confezione da 10

DIGITUS CAT 6 U-UTP Slim 1.5 m patch cable set contains ten gray unshielded twisted-pair Ethernet cables with RJ45 connectors, designed for Gigabit networks. Each cable has a slim outer diameter of 2.7 mm and a flexible jacket to reduce space consumption in racks, patch panels and cable management channels. The cables use stranded AWG 32/7 bare copper conductors and meet international cabling standards for CAT 6 performance up to 250 MHz, enabling reliable transmission for typical office and home network applications.

Advantages

The slim 2.7 mm diameter and flexible LSZH jacket enable easy routing in confined spaces and high-density installations without compromising on signal integrity. Stranded copper conductors and molded strain relief with locking lever protection provide durability and reduced risk of connector damage during frequent reconnections. The cables support Gigabit Ethernet (1000BASE-T) and are suitable for Power over Ethernet (PoE/PoE+) applications thanks to pure copper conductors and compliance with relevant transmission and safety standards.

Suitable for

• Patch panels and network switches in offices and data cabinets
• Workstation connections in open-plan offices and home offices
• High-density cabling routes where space-saving cables are required
• PoE and PoE+ powered devices such as IP phones and access points

Key specifications

• Cable category: CAT 6, U-UTP (unshielded twisted pair)
• Length: 1.5 m
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total outer diameter: 2.7 mm ± 0.15 mm
• Conductor type: stranded bare copper AWG 32/7
• Insulation: HD-PE (high-density polyethylene)
• Transmission frequency: up to 250 MHz
• Supported data rate: up to 1 Gbit/s (1000BASE-T)
• Bending radius: 15 × outer diameter
• Operating temperature: -20 °C to +60 °C
• Flame retardancy and smoke emission: IEC 60332-1, IEC 61034
• Typical applications: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: approx. 750 mating cycles
• Packaging: pack of 10, DIGITUS hangtag

How to use

Connect one end of a DIGITUS CAT 6 U-UTP Slim cable to the RJ45 port of a network device and the other end to a patch panel, switch or wall outlet. Ensure the locking tab engages to secure the connection and avoid sharp bends at the connector by supporting the cable near the plug with the molded strain relief. When routing cables through cabinets or conduits, maintain the recommended bending radius and avoid kinking or crushing the cable to preserve performance.

Recommendations

For best performance, use these CAT 6 U-UTP Slim cables for short to medium patch runs (desk-to-patch or patch-to-switch) where space is limited. Keep cable bundles neat and avoid exceeding the specified bending radius. When deploying PoE devices, verify power requirements and distribution switch capabilities to ensure safe PoE/PoE+ operation.
