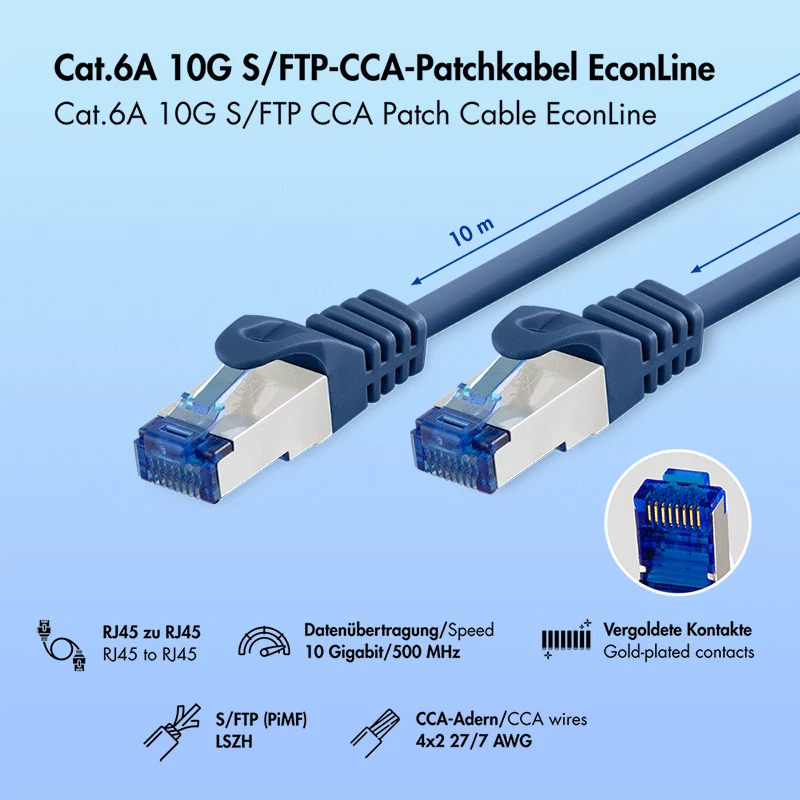

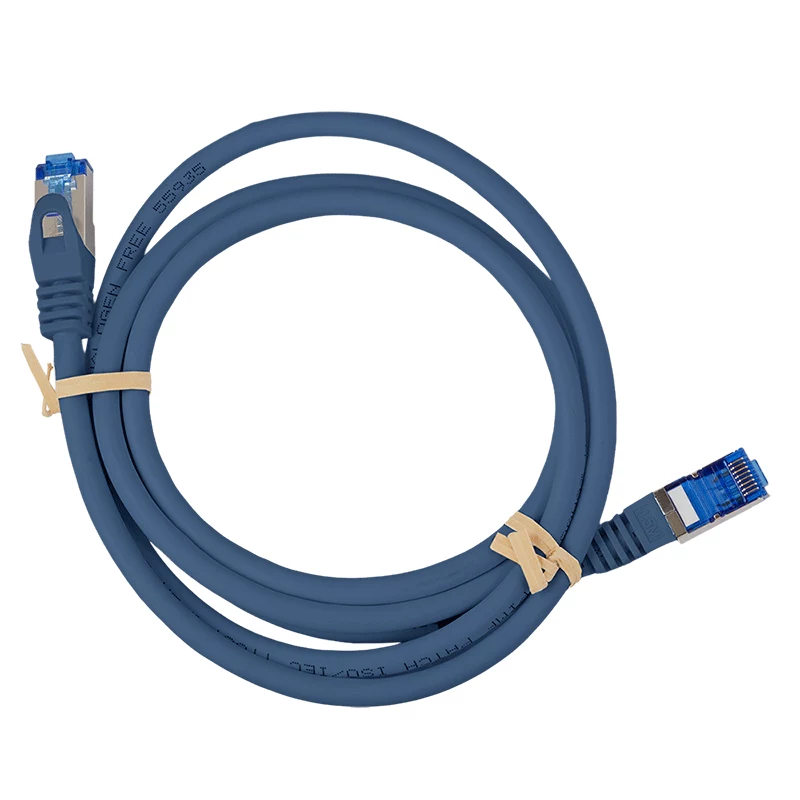

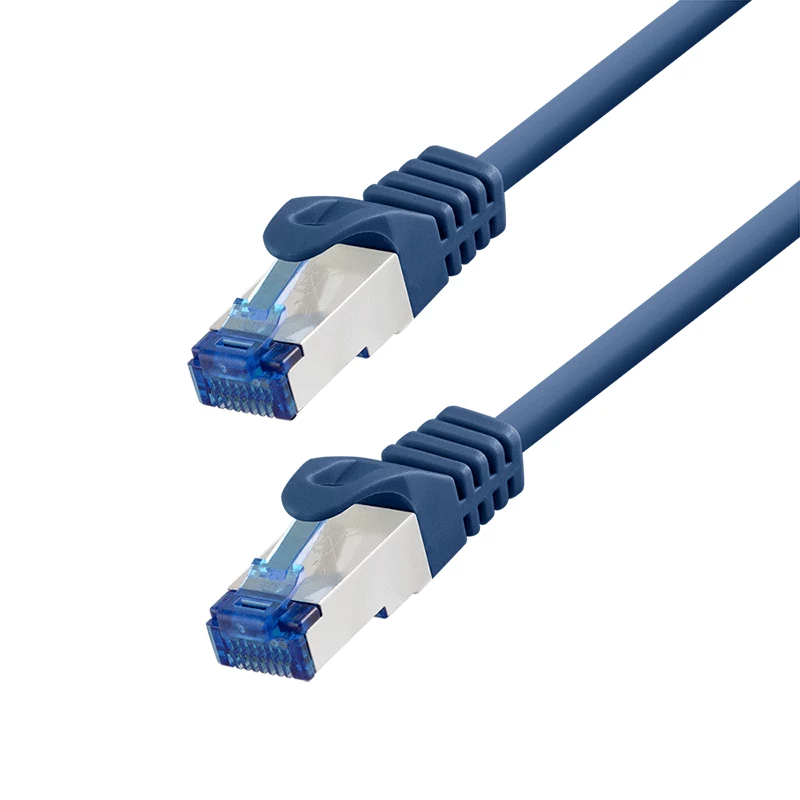

Cavo patch EconLine Cat.6A S/FTP LogiLink, CCA, LSZH, blu, 10 m

High-speed data transmission can quickly expose the weaknesses of ordinary network cables—interference, signal loss, and fire safety risks. The LogiLink EconLine Cat.6A patch cable solves these problems with robust S/FTP shielding, low-smoke zero-halogen materials, and reliable 10 Gigabit performance over 10 meters.

Who is it for

This cable is ideal for network administrators, IT professionals, and home users who need a dependable, future-proof connection for 10GBASE-T Ethernet. It suits data centers, office networks, and any environment where safety and performance are critical.

Main features

• Cat.6A performance up to 500 MHz bandwidth and 10 Gbps data transfer.
• S/FTP shielding with individually foil-wrapped pairs and overall braid for maximum noise immunity.
• LSZH jacket that emits low smoke and zero halogens in case of fire, enhancing safety.
• CCA (copper-clad aluminum) conductors offer a cost-effective alternative to solid copper.
• Snagless molded boots protect the locking tabs during installation.
• Stranded 26/7 AWG conductors provide flexibility for frequent bending and routing.

Specifications

• Cable length: 10 m
• Cable type: Ethernet patch cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Conductor material: CCA (copper-clad aluminum)
• Jacket material: LSZH (low smoke zero halogen)
• Colour: Blue
• Connectors: RJ45 (shielded) both ends
• Wiring standard: TIA/EIA 568B
• Conductor construction: Stranded, 26/7 AWG
• Number of pairs: 4 twisted pairs
• Outer diameter: approx. 6.0 mm
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. Use with shielded RJ45 connectors and grounded equipment to fully benefit from the S/FTP shielding.
