Cavo patch Extralink SC/APC-SC/APC cavo tondo drop monomodale simplex G.657A2 150 m

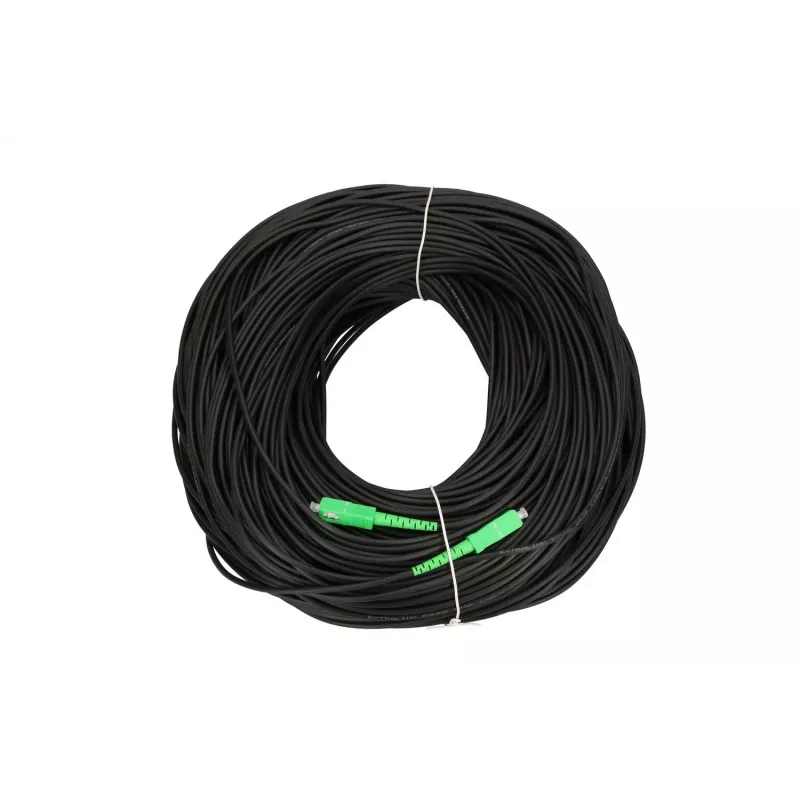

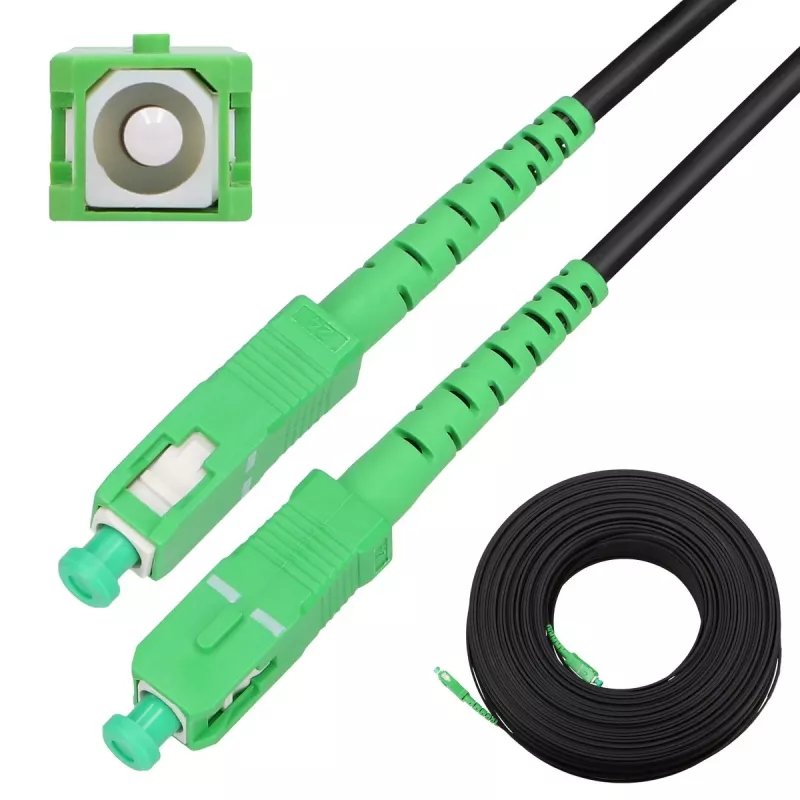

The Extralink SC/APC-SC/APC Patchcord Round drop single mode Simplex G.657A2 150m is a 150-meter single-mode fiber patchcord with a 3 mm round cable and SC/APC connectors on both ends. It is intended for connecting optical equipment such as switches, media converters and for use in FTTH networks to link OLT and ONU/ONT devices while maintaining low attenuation and reliable signal transmission.

Advantages

This patchcord uses G.657A2 single-mode fiber for improved bend performance and low insertion loss. The SC/APC-SC/APC terminations provide stable, low-reflection connections suitable for outdoor drop and indoor FTTH installations. Its 3 mm round simplex construction offers mechanical robustness and straightforward handling during installation.

Suitable for

• FTTH drop connections between OLT and ONU/ONT
• Interconnection of switches and media converters in single-mode networks
• Indoor and outdoor drop cabling where a 150 m simplex run is required

Key specifications

• Brand: Extralink
• Model / MPN: EX.13469
• EAN: 5903148913469
• Fiber type: Single-mode G.657A2
• Length: 150 m
• Cable diameter: 3 mm (round)
• Connector type: SC/APC — SC/APC (simplex)

How to use

Route the 3 mm patchcord between the two optical devices avoiding sharp bends and securing the cable as needed. Insert SC/APC connectors into the corresponding adaptor ports until they click or seat firmly. Verify link continuity and optical power levels with appropriate test equipment before finalizing installation.

Recommendations

Protect connector end-faces from dust and scratches by using protective caps when the cable is not connected, and avoid bend radii smaller than specified for G.657A2 fiber to preserve performance.
